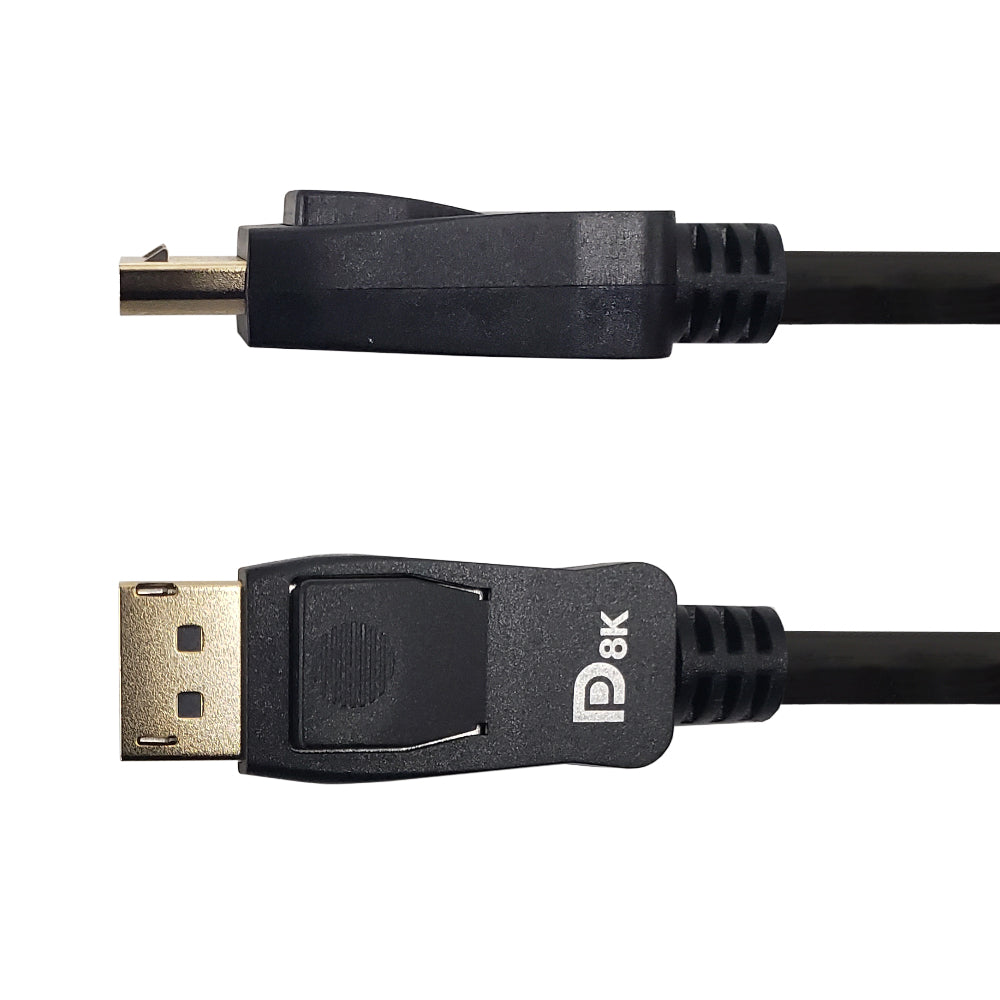

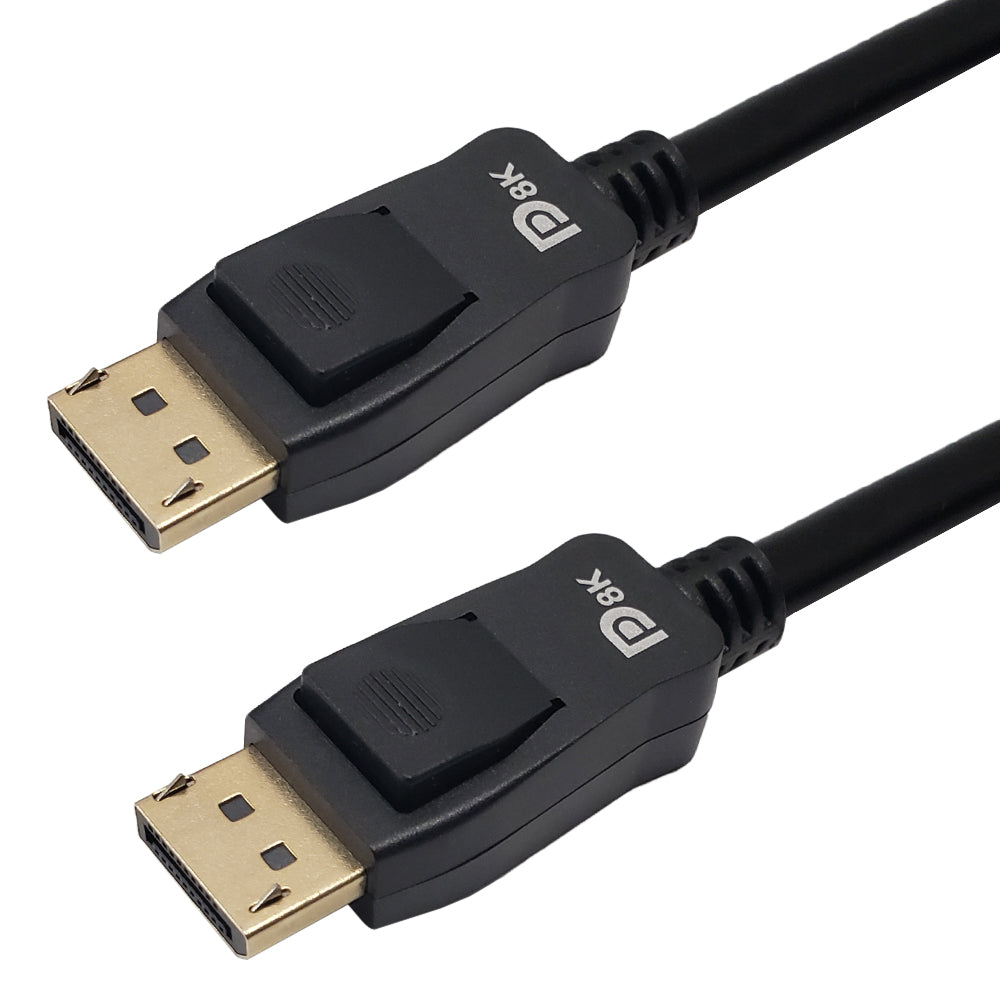

This cable has a DisplayPort male on one end and a DisplayPort male on the other. It is typically used to connect a DisplayPort source to a DisplayPort monitor. The cable supports 8K UHD resolution and is backwards compatible to previous DisplayPort versions.
|
| Ultra High-Definition ResolutionThis cable supports maximum video resolutions up to a breath-taking Ultra HD 8K*4K @ 60Hz. This cable can be used in instances where high definition resolution is needed - for example, connecting your PC or laptop to a 8K monitor.
|
Application
Specifications
| Part Number | Wire Gauge | Outer Diameter |
| DP-102-01.5 | 32AWG | 5.5mm |
| DP-102-03 | 32AWG | 5.5mm |
| DP-102-06 | 30AWG | 6.5mm |
| DP-102-10 | 27AWG | 7.3mm |
| DP-102-15 | 26AWG | 9.5mm |
| Physical Characteristics | |
|---|---|
| Connector A | DisplayPort Male |
| Connector B | DisplayPort Male |
| Performance | |
| Maximum Resolution | 8K*4K@60Hz or 4K*2K@120Hz |
| DP Version | v1.4 |
| Voltage | 30V |
| Contact Resistance | 3 ohm max |
| Insulation Resistance | 10M ohm Min.300V DC/10ms. |
| Packaging Information | |
| Warranty | Lifetime Limited |
