Speedex 4 CH 5MP HD PoE NVR

$149.99

Hurry up! Sales Ends In

Hurry! Only 10 Left in Stock!

Real time 11 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

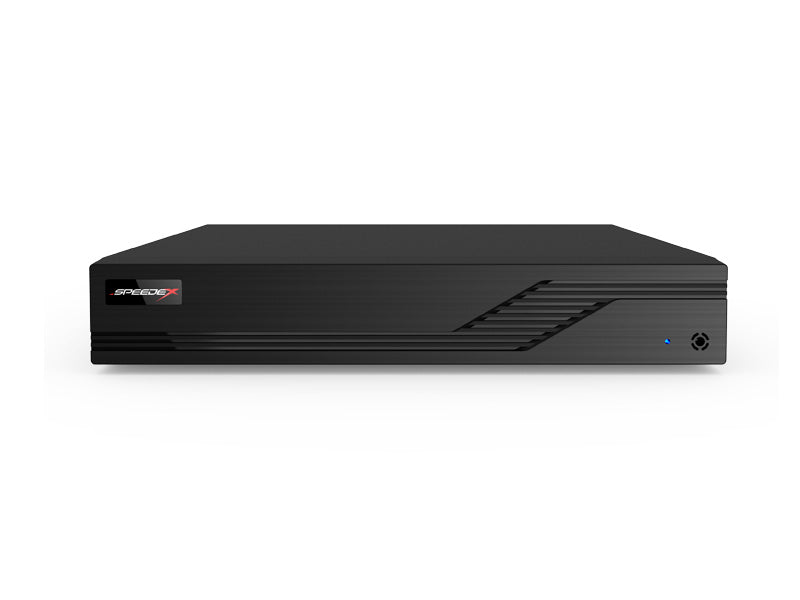

Speedex 4 CH 5MP HD PoE NVR

ID: SEC-NVR-SPEEDEX-T3104B1-5MP
MODEL/PART#: T3104B1


Brief Description:

TD-3100B1-0P series are 4 / 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P
high definition PoE NVRs, which adopt the most advanced SOC
technique to ensure high definition recording in each channel and realize
outstanding robustness of the system. TD-3100B1-0P series integrate with
4 / 8 PoE network ports, support 4 / 8 CH IPC direct connection to NVR,
simultaneous 4 / 8 CH playback, and 1080P high definition display. The series
of product can meet different security requirements of home, financial,
commerce, enterprise, transportation and government, etc.

Warranty:

Modcom:     2 Year



Features

-Support 4 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input

-Adopt standard H.265 and H.264 high profile compression format to

 get high-quality video at much lower bit rate

-Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style

 operation by mouse

-Multi-mode recording: manual / timer / motion / sensor

-Playback : 4 CH simultaneous playback

-Search : time slice, time, event ( manual, sensor, motion ), tag search

-Express and flexible backup via USB, network and so on

-Pentaplex : preview, record, playback, backup and remote access

-DHCP, DDNS, PPPoE network protocol and CMS supported

-Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

-4 PoE network ports, support IPC direct connection to NVR; support PoE power supply

-Dual stream technology for local storage with high definition, remote

 network transmission and remote surveillance with mobile device

-Multi-user online simultaneously

-Authorization management, log view and device status view

-1080P HD output, true high resolution display

-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

-Support NAT function and QRCode scanning by mobile phone and PAD

 Powerful smart phone & Pad surveillance with iOS and Andriod OS



Mobile Apps: SuperLive Plus





Software for Mac OS: download

Specification



Model

T3104B1

T3108B1



System

Compression

Standard H.265, H.264

OS

Embedded Linux







Video

Network Input

4 CH IPC input

8 CH IPC input

IP Input Access / Transfer Bandwidth

28Mbps / 28Mbps

40Mbps / 40Mbps

Network Access Format

5MP/4MP/3MP/1080P/960P/720P@25 / 30fps

Output

HDMI × 1 : 1920×1080/1280×1024/1024×768 VGA × 1 : 1920×1080/1280×1024/1024×768



Audio

Network Input

4 CH IPC audio input

8 CH IPC audio input

2-way Audio

No

Local Output

No ( HDMI supports the audio output )



Record

Record Stream

Dual stream recording

Resolution

5MP / 4MP / 3MP / 1080P / 960P / 720P

Mode

Manual, timer, motion, sensor







Playback

Simultaneous Playback

Max 4 CH

Max 8 CH

Search

Time slice / time / event / tag search

Smart Search

Highlight colors to display the camera record in a certain period of time, different colors refer to different record events

Function

Play, pause, FF, FB, digital zoom, etc.





Alarm

Mode

Manual, sensor, motion, exception

Input

No

Output

No

Triggering

Record, snap, preset, e-mail, etc.



Network

Interface

RJ45 10 / 100 Mbps × 1

PoE Port

RJ45 × 4

RJ45 × 8

Protocol

TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP

Mobile Device

OS

iOS, Andriod

Storage

HDD

SATA × 1, up to 6TB per HDD



Backup

Local Backup

U disk, USB mobile HDD

Network Backup

Yes



Port

USB

USB 2.0 × 2

Remote Controller

Optional







Others

Power Supply

DC48V/1.25A

DC48V/2.5A

Consumption

 6W ( without HDD )

Dimensions (mm)

255 × 233 × 42 ( W × D × H )

Work Environment

-10  50 ℃,10%  90% humidity



Speedex 4 CH 5MP HD PoE NVR

Speedex 4 CH 5MP HD PoE NVR

$149.99
