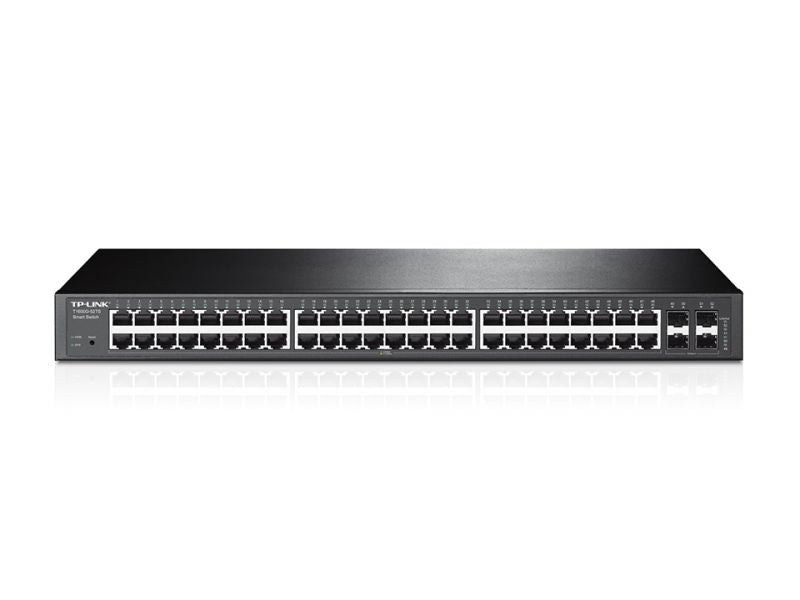

JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots

$516.00

Hurry up! Sales Ends In

Hurry! Only 1 Left in Stock!

Real time 24 visitor right now
DELIVERY & RETURN
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

Features

  • - PoE Features
    • Standard: 802.3at/af compliant with up to 30W per port
    • PoE+ Ports: 48 Ports
    • Power Supply: 384W
    • PoE Schedule (Time-based Settings)
  • - L2 and L2+ Features
    • Static Routing
    • Link Aggregation Control Protocol (LACP)
    • 4k VLANs
    • STP/RSTP/MSTP
    • IGMP Snooping
    • LLDP / LLDP-MED
  • - Security Strategies
    • Access Control List (L2~L4 ACL)
    • IP-MAC-Port Binding
    • 802.1x and Radius Authentication
    • Port Security
    • Strom Control
    • SSL and SSH encryptions
    • Dos Defend
  • - Quality of Service
    • 8 priority queues
    • 802.1P/DSCP QoS
    • Voice VLAN
  • - Management
    • Web-based GUI
    • Command Line Interface (through telnet)
    • SNMP v1/v2c/v3
    • RMON (1, 2, 3, 9 group)
    • IPv6 Management
    • Dual Image

Specification

HARDWARE FEATURES
Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface

48 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity

3
Power Supply

100~240VAC, 50/60Hz
Power Consumption

Maximum (PoE on): 470.4W (110V/50Hz)
Maximum (PoE off): 46.5W (220V/50Hz)
PoE+ Ports(RJ45)

Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports
Power Supply: 384W
Dimensions (WxDxH)

17.3*13*1.7 in.(440*330*44 mm)
PERFORMANCE
Bandwidth/Backplane

104Gbps
Packet Forwarding Rate

77.4Mpps
MAC Address Table

16k
Jumbo Frame

9 KB
SOFTWARE FEATURES
Quality of Service

Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS*
Voice VLAN
L2 and L2+ Features

Static Routing
DHCP Relay*
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED*
VLAN

Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List

L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL*
Security

AAA*
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
IPv6

Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications

DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management

Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image

*These features will be supported in a future firmware release.
OTHERS
Certification

CE, FCC, RoHS
Package Contents

Switch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements

Microsoft Windows XP, Vista, 7, 8, 10, MAC OS, NetWare, UNIX or Linux.
Environment

Operating Temperature: 0~40 °C (32~104 °F);
Storage Temperature: -40~70 °C (-40~158 °F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
