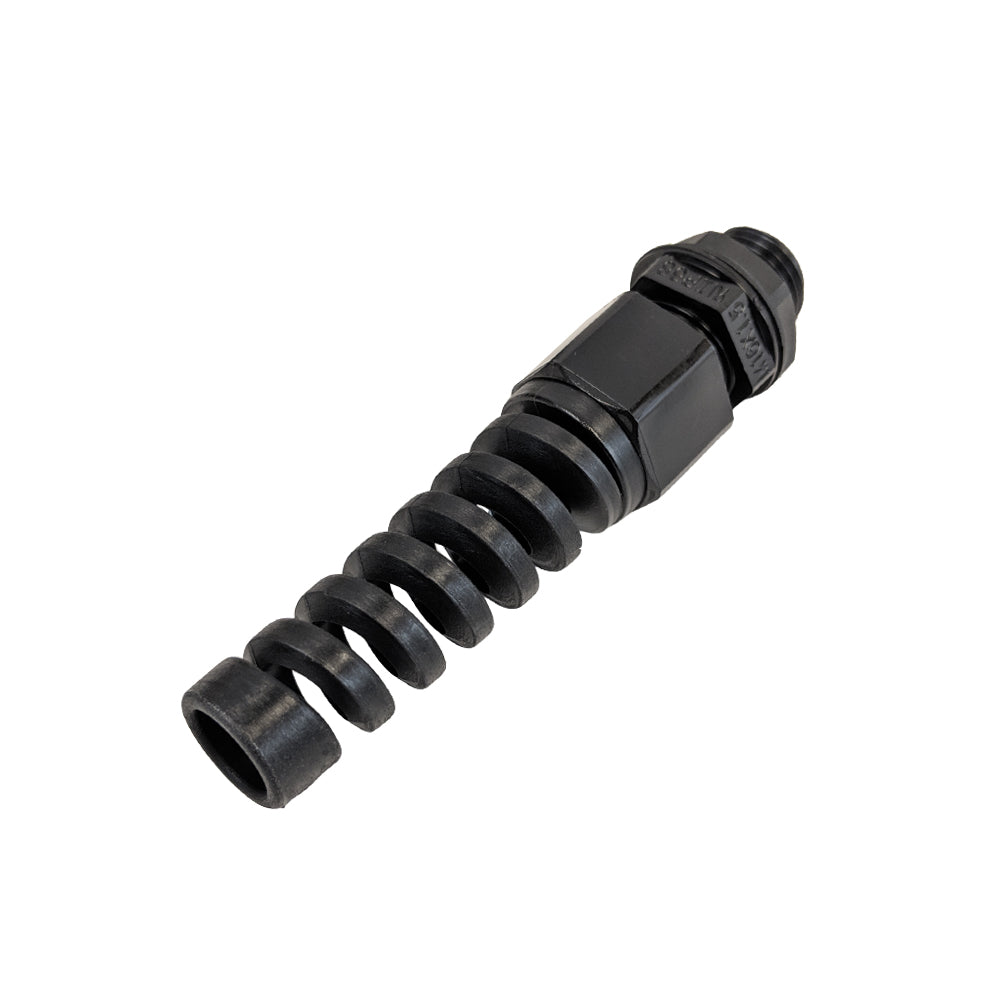

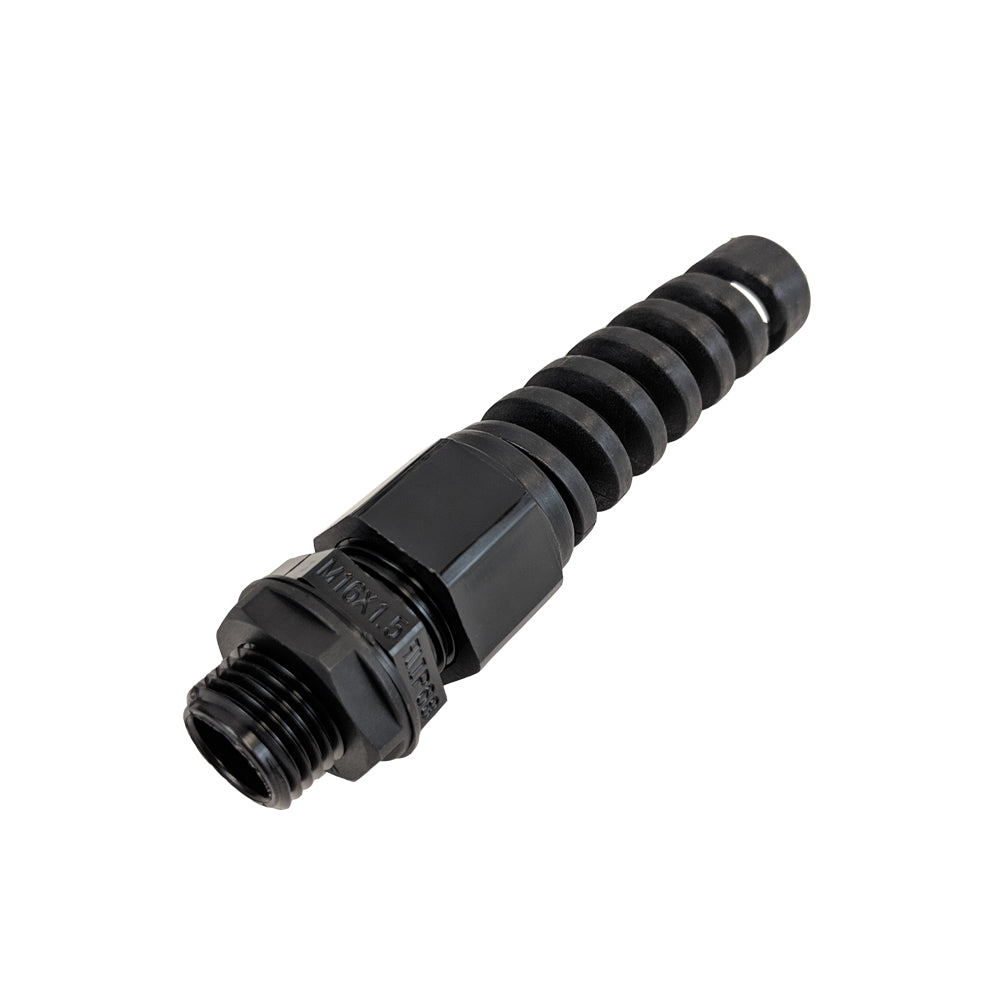

This cable gland with strain relief has a metric thread pattern of M16xP1.5 and accommodates a cable size of 5 to 10mm. The gland is dust resistant and waterproof with an IP68 rating and also has a flammability rating of UL94V-2. Cable glands are often referred to as cord grips or strain reliefs and are designed to attach and secure the end of a cable to a receptacle box or equipment.
|
Physical Characteristics
|
|||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black | ||||||||||||||||||
| Material | Nylon 66 | ||||||||||||||||||
| Thread | M16xP1.5 | ||||||||||||||||||
| Mounting Hole | 16.0 ~ 16.3 mm [0.63 ~ 0.64 inches] | ||||||||||||||||||
| Cable Range | 5 ~ 10 mm[0.20 ~ 0.39 inches] | ||||||||||||||||||
|

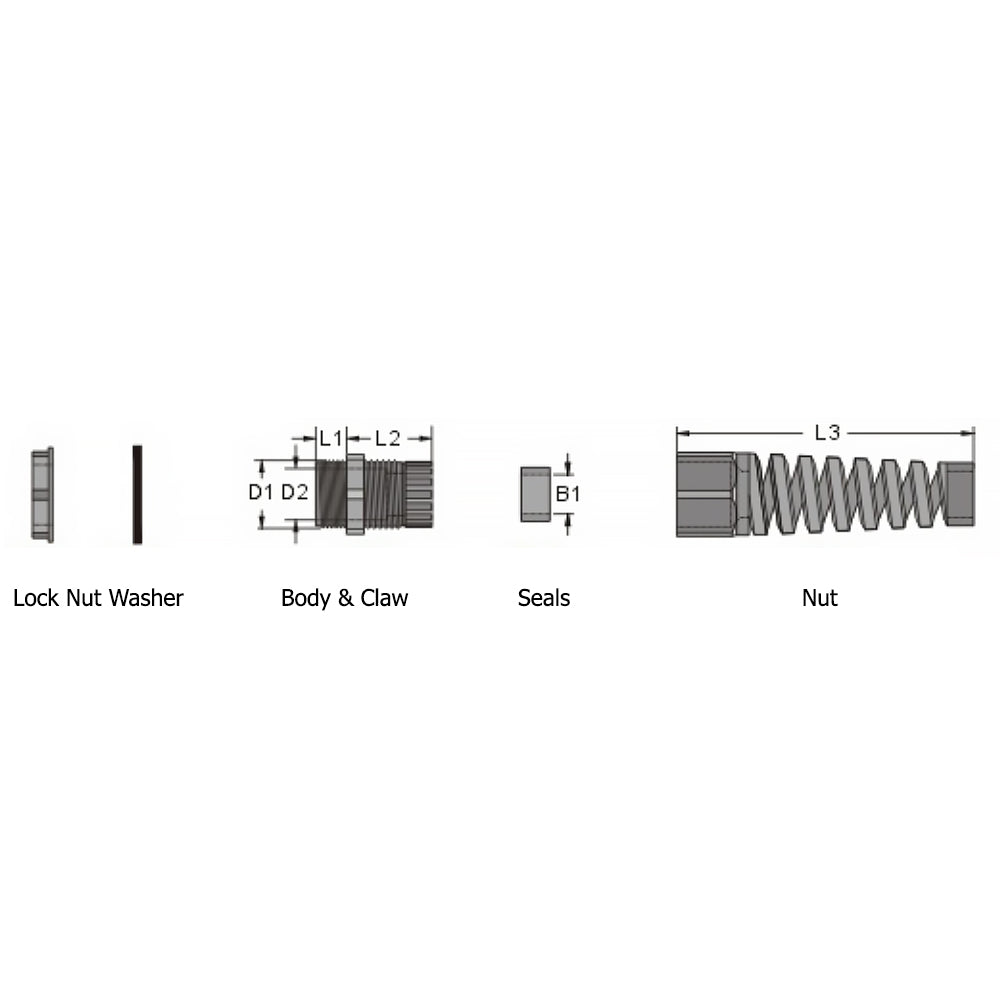

Dimensions (mm) |
|
||||||||||||||||||
| Flammability Rating | UL94V-2 | ||||||||||||||||||
| IP68 Rated | Compliant | ||||||||||||||||||
|
Approvals
|
|||||||||||||||||||
| UL | Compliant | ||||||||||||||||||
| RoHS | Compliant | ||||||||||||||||||
|
Packaging Information
|
|||||||||||||||||||
| Package Quantity | 1 | ||||||||||||||||||
| Product Weight | 0.2 lbs [0.09kg] | ||||||||||||||||||
