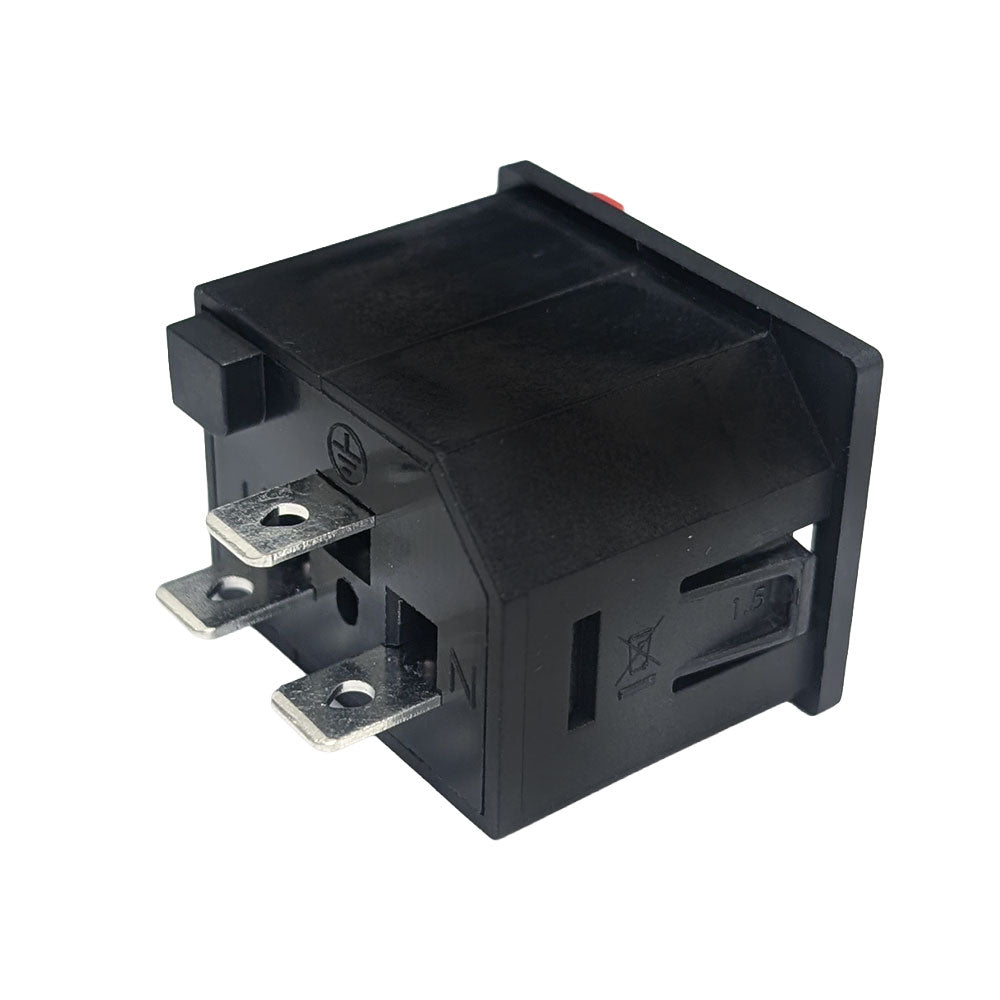

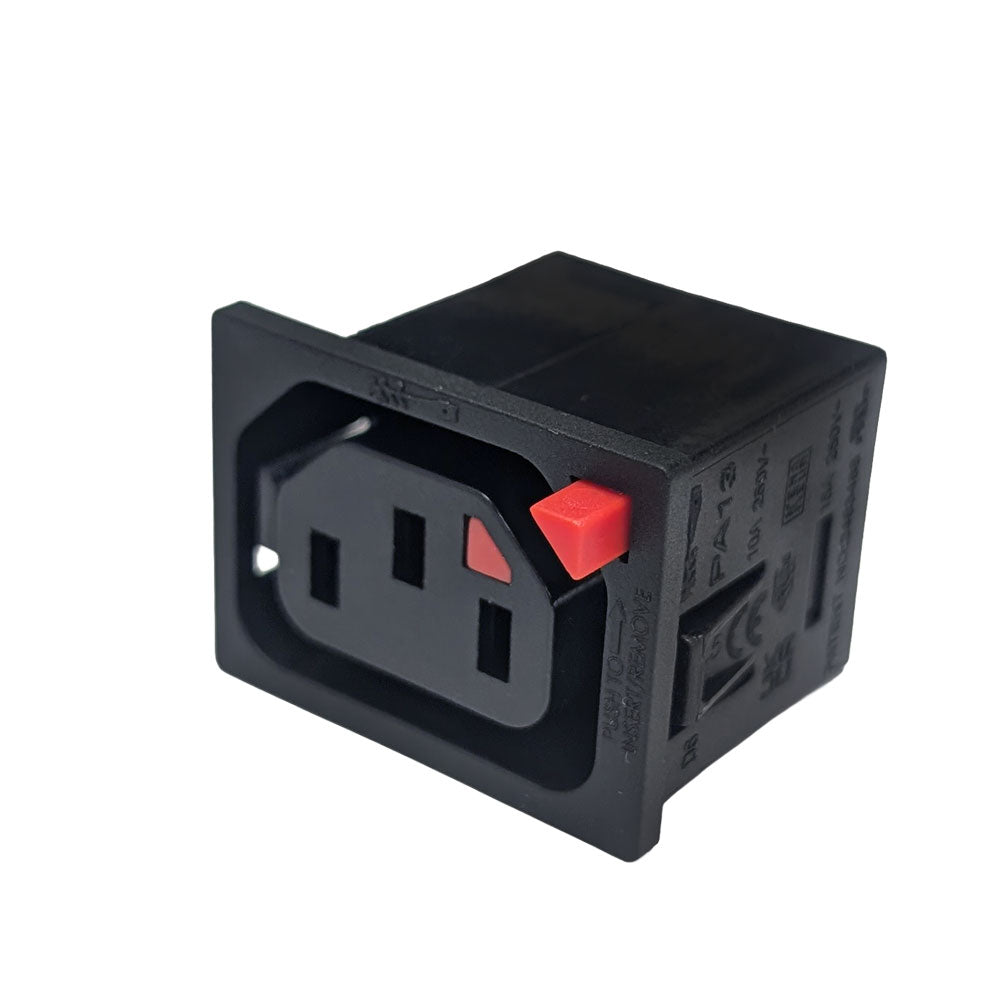

This power outlet has a locking female C13 connector on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.
| Physical Characteristics | |
|---|---|
| Connection Type | Snap-in Mounting From Front |
| Color | Black |
| Material (Body) | Black Thermoplastic UL94V-0 |
| Connector Plating | Nickel |
| Rating | 10A/250VAC |
| Insulation Resistance | 10MΩ (500VDC, 1Min.) |
| Dielectric Strength | 2KV (50Hz 1 Min) to Accessible Surfaces |
| Panel Mount | Compliant |
| Panel Thickness | Black IEC320 Snap in 1.5mm Panel Thickness |
| Solder/QC Dimensions | 6.3 x 0.8mm |
| Temperature Rating | 20°C to + 70°C |
| Lock Retention | >100N |
| Manufacturing Information | |
| IEC-Lock Part # | PA135015BKSR |
| Connectors | |
| C13 | Female |
| Solder/Quick Connect | Male |
| Approvals | |
| Certification |
IEC /BS EN 60320-1: 2021 |
| CE |
Compliant |
| Packaging Information | |
| Package Quantity | 1 |
