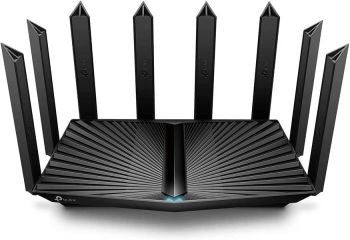

AX6600 Tri-Band Gigabit Wi-Fi 6 Router
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Features
-Faster AX6600 Tri-Band WiFi: 4804Mbps (5GHz) + 1201Mbps
(5GHz) + 574Mbps (2.4GHz)
-Ultra Connectivity: 1 2.5Gbps WAN/LAN port + 1 Gigabit
WAN/LAN port + 3 Gigabit LAN ports and 2 USB ports ensure
max flexibility and boosted throughput; The 2.5Gbps
WAN/LAN port and 1Gbps WAN/LAN port cannot be used
as the WAN port at the same time
-Maximized Coverage: 8 high-gain antennas equipped with
Beamforming ensure long range coverage
-Powerful Processing: 1.5GHz Quad-Core CPU ensures your
network performance always at peak run
-More Devices with Less Lag: OFDMA and MU-MIMO technology
deliver data to multiple devices, simultaneously
-Refined Security: WPA3 reinforces Wi-Fi encryption for
improved security
-TP-Link HomeShield: TP-Link's premium security services
keep your home network safe with cutting-edge network
and IoT protection. Free features:
1. Network Security Scan
2. Basic Parental Controls
3. QoS
4. Weekly/Monthly Reports
5. IoT Device Identification, HomeShield Pro paid service
ads more robust protections and features.
Get started with a one month free trail of Homeshield Pro.
-Works with all internet service providers (a modem is
required for most internet service providers). TP-Link offers
2-year warranty and free 24/7 technical support.
Multiple streams in the same band strengthen the fault
tolerance in transmission
Specification
WIRELESS | |
---|---|
Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds |
AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range |
4 Bedroom Houses 8× Fixed High-Performance Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage 4T4R Multiple streams in the same band strengthen the fault tolerance in transmission |
WiFi Capacity |
Very High Tri-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 8 Streams Connect your devices to more bandwidth |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | 1.5 GHz Quad-Core CPU |
Ethernet Ports | 1× 2.5 Gbps WAN/LAN Port 1× 1 Gbps WAN/LAN Port 3× 1 Gbps LAN Ports |
USB Support | 1× USB 3.0 Port 1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power | 12 V ⎓ 3.3 A |
SECURITY | |
---|---|
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 5 GHz-1 Guest Network 1× 5 GHz-2 Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Service Kits | HomeShield Learn More> |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: <20dBm{2.4GHz} <23dBm{5.15GHz~5.35GHz} <30dBm{5.47GHz~5.725GHz} FCC: <24dBm{5.47GHz~5.725GHz } <30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz } |
WiFi Reception Sensitivity | 2.4GHz: 11n HT20 MCS0:-95dBm 11ax HE20 MCS11:-64dBm 11ax HE40 MCS11:-62dBm 5GHz-1: 11ac VHT20 MCS0:-92dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 5GHz-2: 11ac VHT20 MCS0:-95dBm 11ax HE20 MCS11:-61dBm 11ax HE40 MCS11:-58dBm 11ax HE80 MCS11:-55dBm 11ax HE160 MCS11:-53dBm |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 12.2 × 8.1 × 6.8 in (311 × 207 × 174 mm) |
Package Contents | Wi-Fi Router Archer AX90 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
