Overview

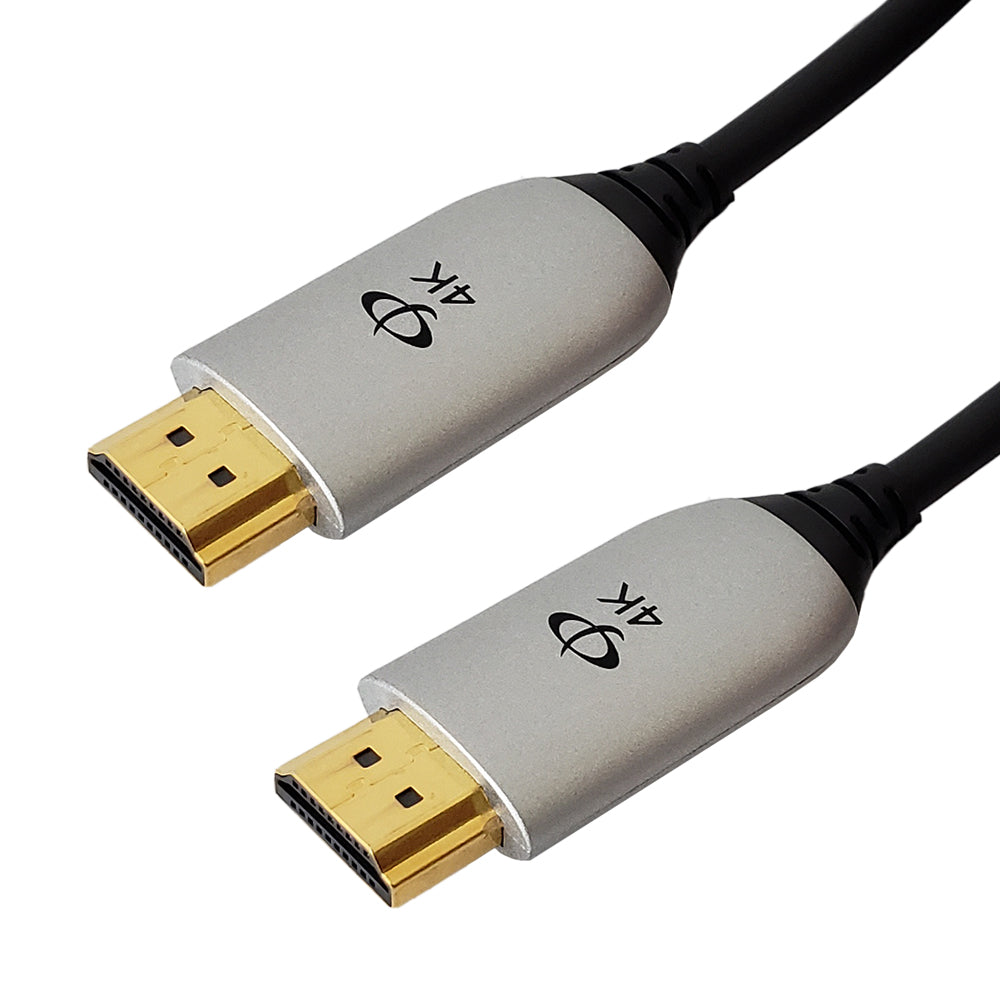

This active optical High-Speed HDMI® cable consists of a HDMI male connector on both ends. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 4K Ultra HD resolution and High Dynamic Range (HDR), and works with splitters, switches and other video sharing devices.

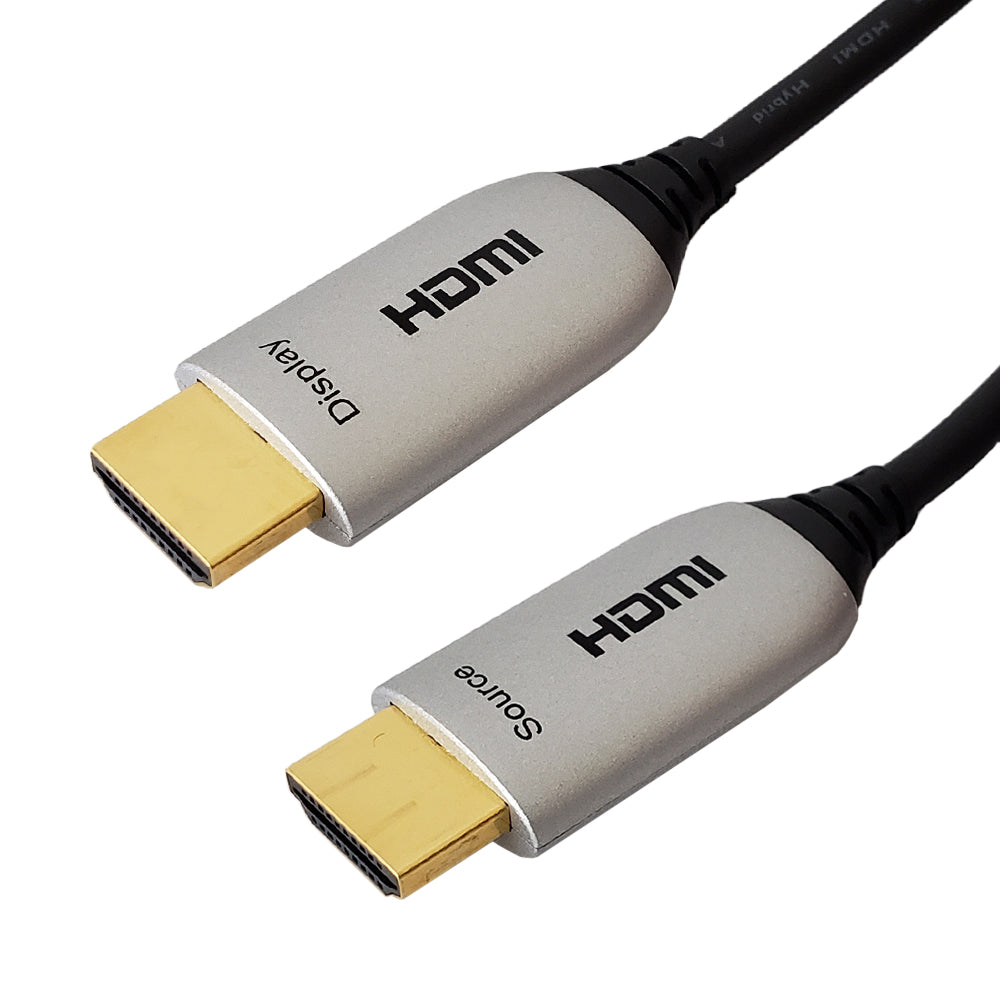

This active optical HDMI® cable is directional, each connector has a marking to indicate whether it should be connected to the source or the display. Always test the connection before installing the cable within a wall.
Extend HDMI Signals Over Optical CableThese cables are constructed from both copper and optical fiber, they feature a built-in booster chipset ideal for maintaining 4K Ultra HD resolution and ensure a full 18Gpbs bandwidth with no signal loss over longer distances. Optimum Performance and Easy InstallationThese cables utilize AOC technology which make them more flexible and thinner than traditional long-length cables, making them easier to install in walls or run around tight corners. The fiber reduces the risk of EMI/RFI so performance is stable when used in high interference environments.
|
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color |
Black |
| Connector Plating | Gold |
| Shell Material | Zinc-Alloy |
| Cable Specs | Fiber Optic 50/125um multimode / Copper |
| Cable Diameter | 4.8mm |
| Shielding | 75% Braid + 100% Aluminum-Mylar Foil |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Bend Radius | 48mm |
|
Connectors
|
|
| Connector A | HDMI A (19 pin) Male |
| Connector B | HDMI A (19 pin) Male |
|
Performance
|
|
| Resolution | Ultra HD 4k x 2k (4096 x 2160) @ 60Hz |
| Active Chipset Technology | Silicon SL82817/SL82827 |
| Chroma Sampling | 4:4:4 |
| Bandwidth | 18Gbps |
| Video | HDR, Deep Color (48-bit) and 3D Compatible |
| Audio | 32 Channel Audio with ARC |
| Support | CEC, EDID, and HDCP |
| Built in Ethernet Channel | Compliant |
| HDCP 2.2 Compliant | Compliant |
| HDMI Version | HDMI 2.0 |
|
Approvals
|
|
| CE | Compliant |
| FCC | Compliant |
| CPR | Compliant |
| ATC | Compliant |
|
Environmental
|
|
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
|
Warranty Information
|
|
| Warranty | 3 Year Warranty |
