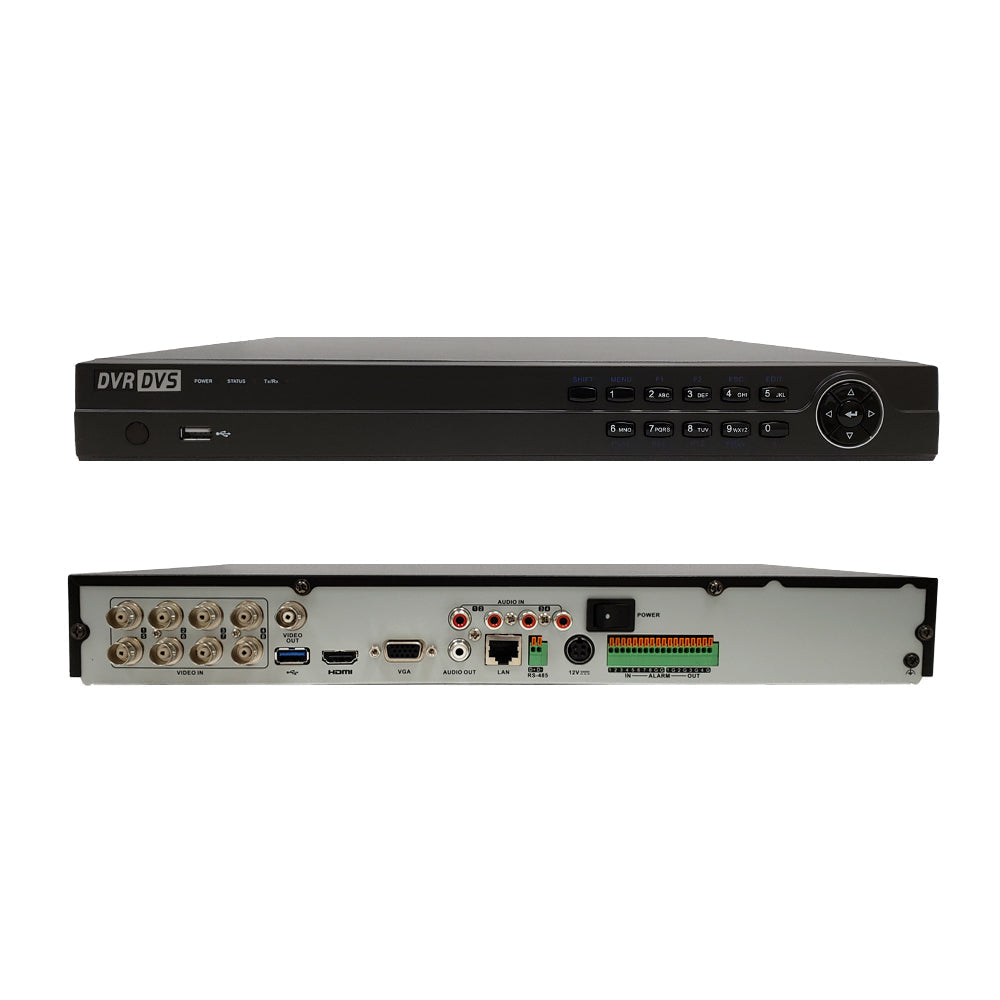

8-Channel Analog / 16-Channel IP - 8MP - HD-TVI, AHD, CVI, CVBS, DVR - 2x SATA
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Overview
This DVR can support a maximum of 8 analog channels or a maximum of 16 IP channels for a total of 16 cameras in any combination (when Enhanced IP Mode is enabled). The analog cameras connect directly to the DVR and can support AHD, CVI and CVBS surveillance camera formats. IP cameras can be connected through a PoE switch only. Long distance transmission is supported over UTP and coaxial cables. The DVR can output video simultaneously using the HDMI and VGA ports. (Hard drive sold separately).
Features
- Support H.265 Pro+/H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input
- Maximum 8 analog or 16 IP camera inputs - Maximum 16 cameras (up to 8 MP)
- Maximum 800m for 1080p and 1200m for 720p HDTVI signal transmission
- Maximum 32/64/128 Mbps incoming bandwidth and output bandwidth limit configurable
- Up to 10 TB capacity per HDD
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Dimensions | ’‚¬ 12.4" x 9.5" x 1.8" (’‚¬ 315 x 242 x 45mm) |
| Operating Temperature | -10°C to 55°C (14°F to 131°F); Humidity 10% to 90% |
| Power Supply | 12V DC |
| Power Consumption | €°¤ 20W(without hard disks) |
|
Video and Audio
|
|
| HDMI/VGA Output | HDMI: 1-channel, 4K (3840 — 2160)/30Hz, 2K (2560 — 1440)/60Hz, 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz VGA: 1-channel, 1920 — 1080/60Hz, 1280 — 1024/60Hz, 1280 — 720/60Hz, 1024 — 768/60Hz |
| CVBS Output | 1-channel, BNC (1.0 Vp-p, 75Ω), PAL Resolution: 704 x 576 NTSC Resolution: 704 x 480 |
| Recording Resolution | 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Analog Video Input | 4-channel, BNC interface (1.0Vp-p. 75Ω) connection, Supporting Coaxiton Connection |
| Supported Camera Types | Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30 Support CVBS input: PAL/NTSC |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Video Bit Rate | 32 Kbps-10 Mbps |
| Stream Type | Video / Video & Audio |
| Audio Input |
4-channel, RCA (Vp-p, 1 KΩ) |
| Audio Output |
1-channel, RCA (Linear, 1�€) |
| Audio Compression |
G.711u |
| Audio Input Interface |
4-channel, RCA (2.0 Vp-p, 1 �€) |
| Audio Bit Rate |
64kbps |
| Two-way Audio |
1-channel, RCA (2.0 Vp-p 1 �€) - Using the 1st channel of audio input |
| Dual Stream |
Support |
| Synchronous Playback |
8-channel |
|
Network Management
|
|
| Remote Connections | 64 |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, Guarding Vision, NTP, SADP, NFS, iSCSI, UPnP€ž¢, HTTPS, ONVIF |
|
Hard Disk Driver
|
|
| Interface Type | 2 SATA Interface |
| Capacity | Up to 10TB capacity for each disk |
|
External Interface
|
|
| Network Interface | 1; RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB Interface | Front panel: 1 x USB 2.0 Rear panel: 1 x USB 3.0 |
| Serial Interface | 1 standard RS-485 serial interface, half-duplex |
| Alarm In/Out | 8/4 |
|
Approvals
|
|
| RoHS | Compliant |
| c(UL)us | Yes |
| FCC | Yes |
| CE | Compliant |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 3.9 lbs [1.78 kg] |
