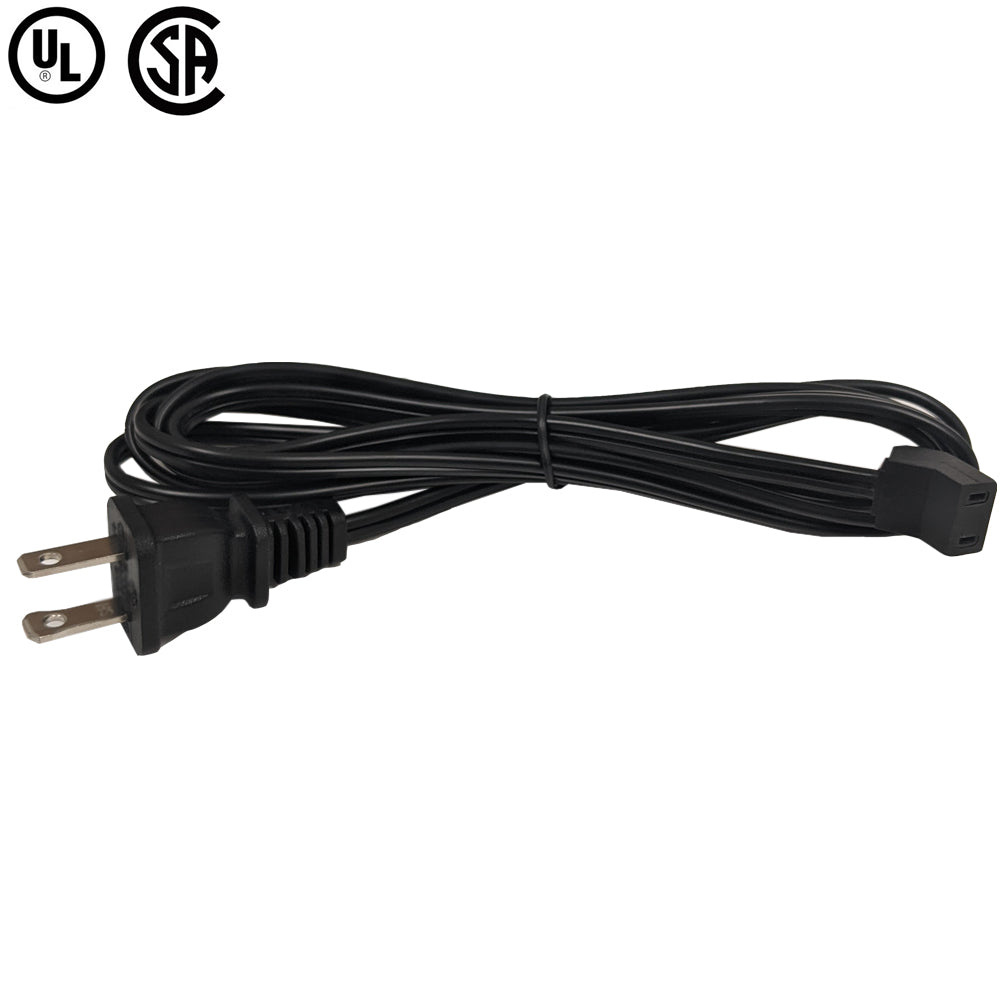

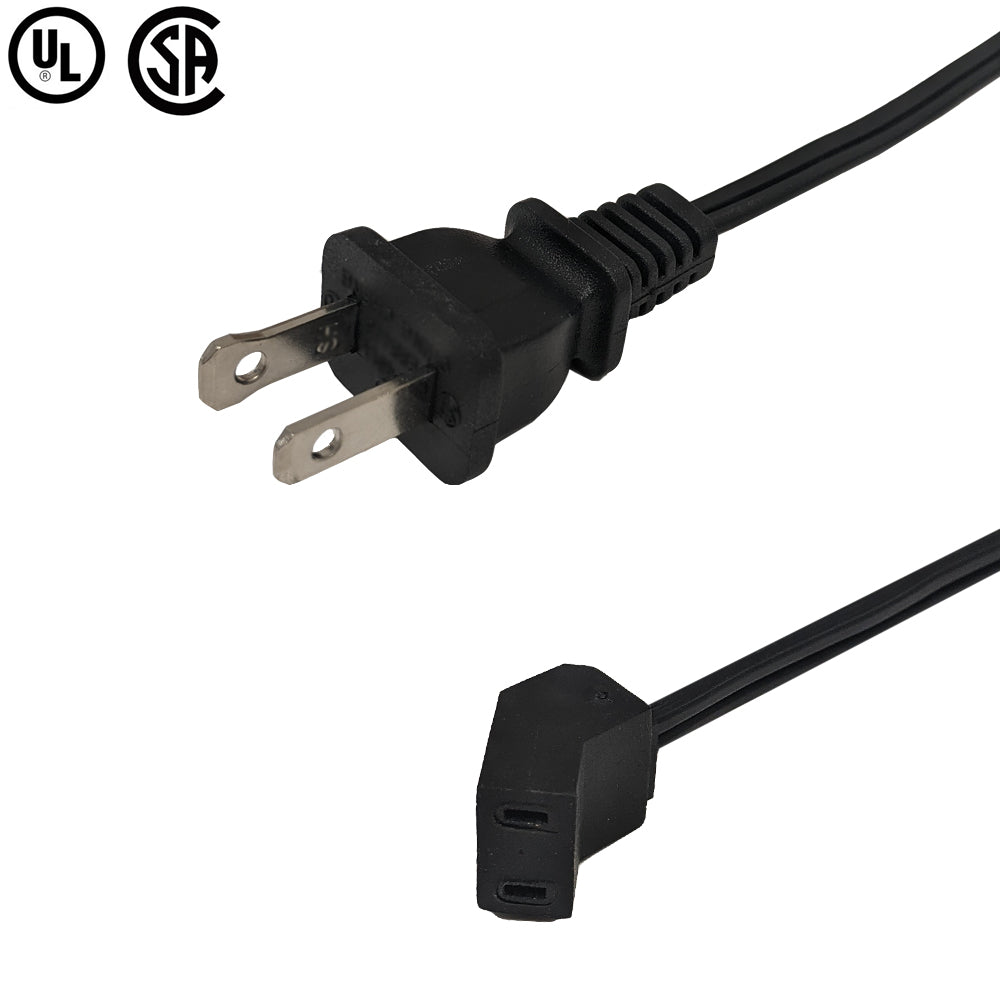

This power cord consists of a 1-15P male on one end and a AC fan tab style connectors on the other end. It is typically used to power AC fans. Premium quality connectors are used to ensure a secure fit.
| Physical Characteristics | |
|---|---|
| Cable Length | 6 foot [1.8m] |
| Color | Black |
| Diameter | 2.7mm x 5.4mm |
| Wire Gauge | 18 AWG |
| Jacket | SPT-1 |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Conductor Material | 100% bare copper |
| Jacket Fire Rating | FT2 VW-1 |
| Connector(s) | |
| Connector A | NEMA 1-15P |
| Connector B | AC Fan Connector |
| Performance | |
| Power Rating | 125V / 10A |
| Approvals | |
| Cable | UL, CSA |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.25 lbs [0.1kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
