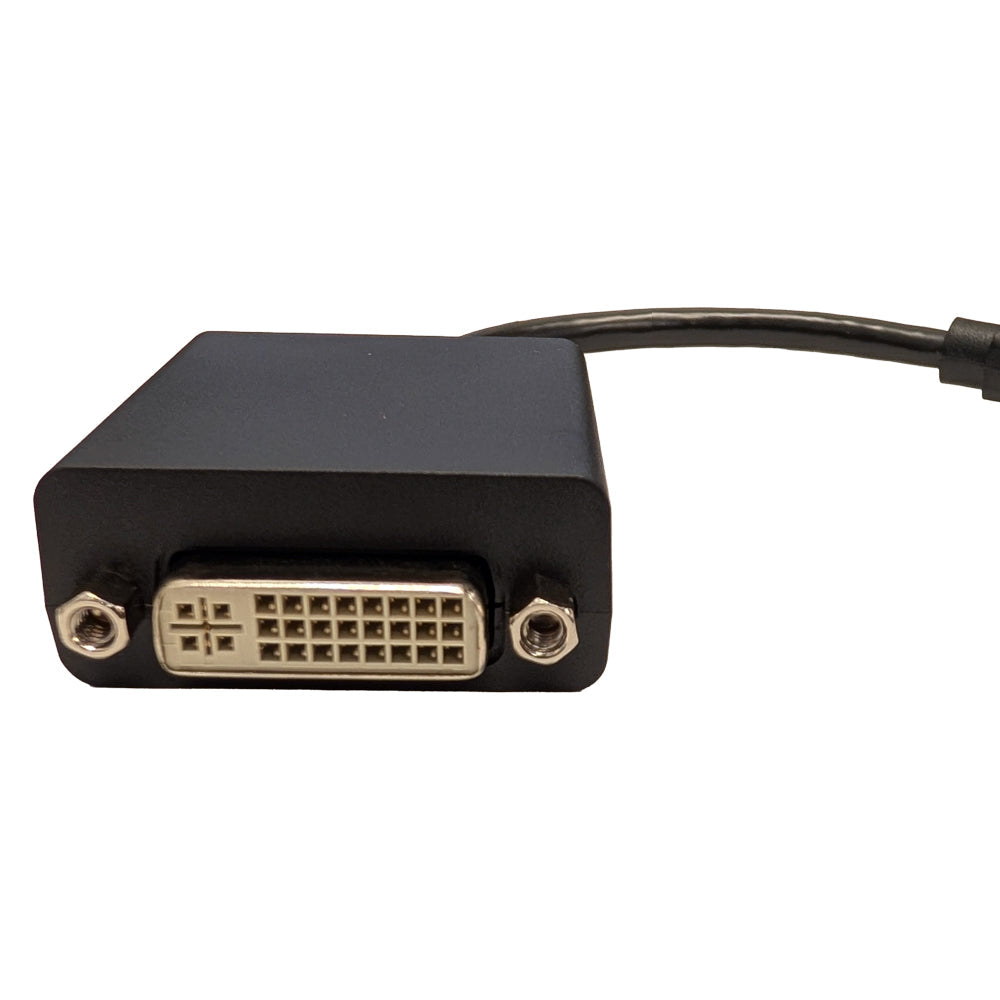

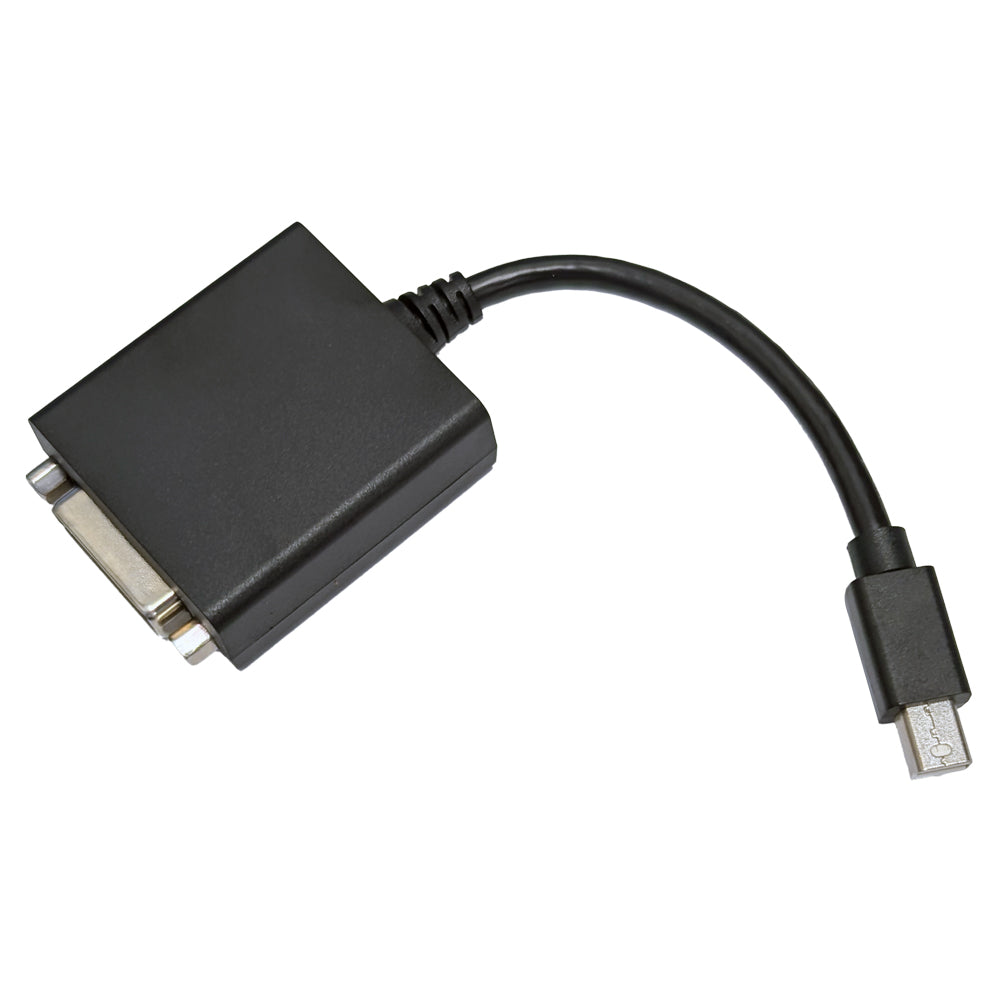

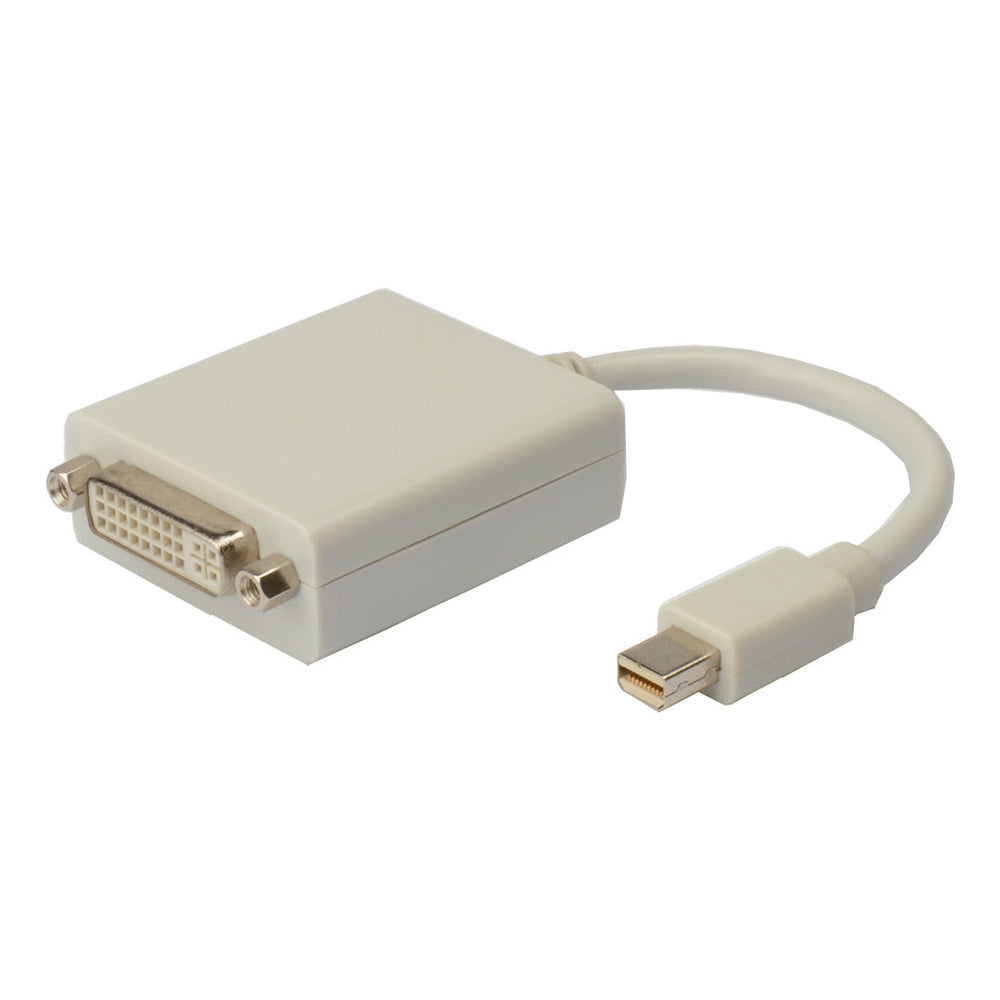

This adapter consists of a Mini-DisplayPort male on one end and a DVI female on the other. It is primarily used to connect a Mini-DisplayPort devices such as MacBooks to a DVI monitor or projector.
Features:
- Support Mini DisplayPort 1.1 input and DVI output
- Support DVI highest video resolution 1080p
- Support DVI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth
- Support DVI 12bit per channel (36bit all channel) deep color
- Powered from Mini DisplayPort source
| Physical Characteristics | |
|---|---|
| Cable Length | 6 Inch |
| Color | Black |
| Temperature Range |
Operating : 0 ℃ to +45℃ Storage : -10℃ to +80℃ |
| Humidity Range |
Operating : 10% to 85 % RH (no condensation) Storage : 5% to 90 % RH (no condensation) |
| Connectors | |

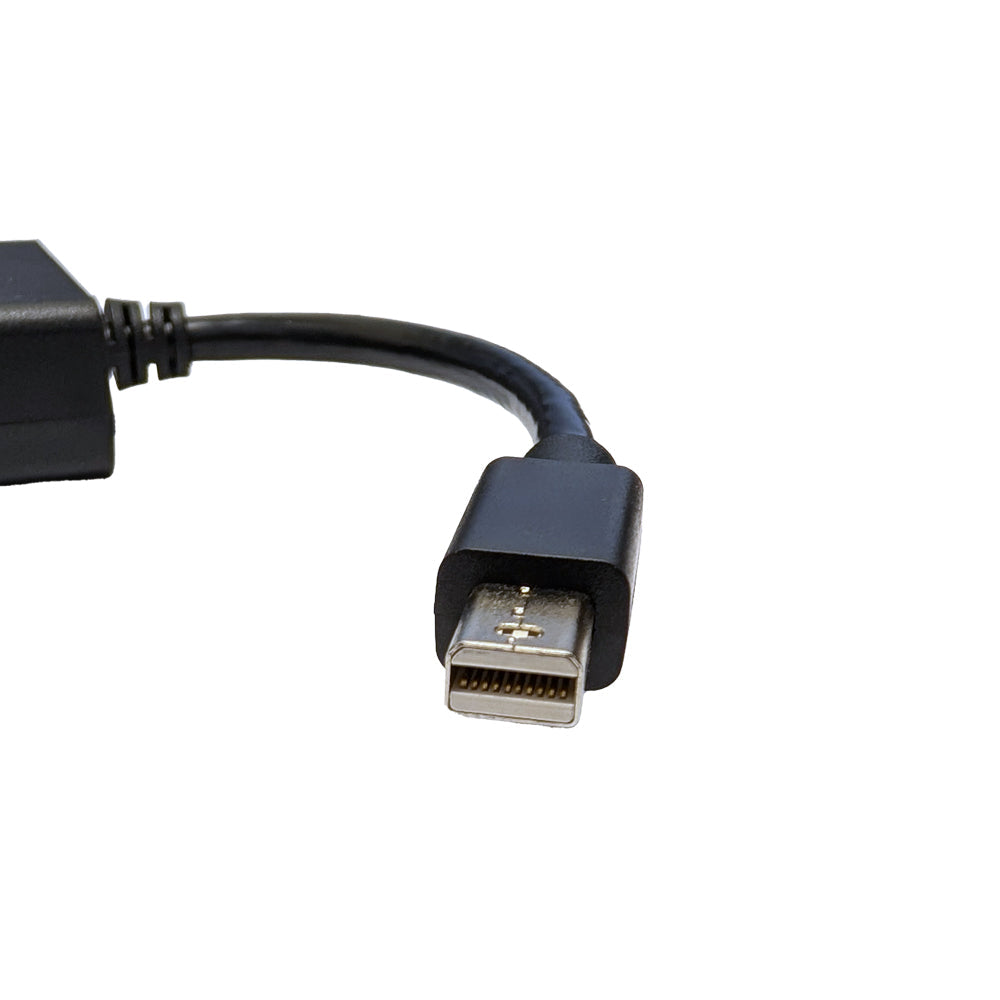

| Connector A | Mini-Display Port Male (20 Pin) |
| Connector B | DVI Female |
| Performance | |
| Speed | DVI 225Mhz/2.25 Gbps per channel (6.75Gbps all channels) |
| Input Video Signal | 5 Volts p-p (TTL) |
| Maximum Single Link Range | 1920x1080P |
| Resolution |
Interlaced(50&60Hz) : 480i, 576i, 1080i Progressive(50&60Hz) : 480p, 576p, 720p, 1080p |
| Vertical Frequency Range | 50/60Hz |
| Power consumption (Max) | 3W |
| Version | 1.1a |
| Environmental | |
| FCC,CE,UL | Compliant (Converter Unit) |
| UL,CE,FCC | Compliant (Power Supply) |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.1 lbs [0.04 kg] |
