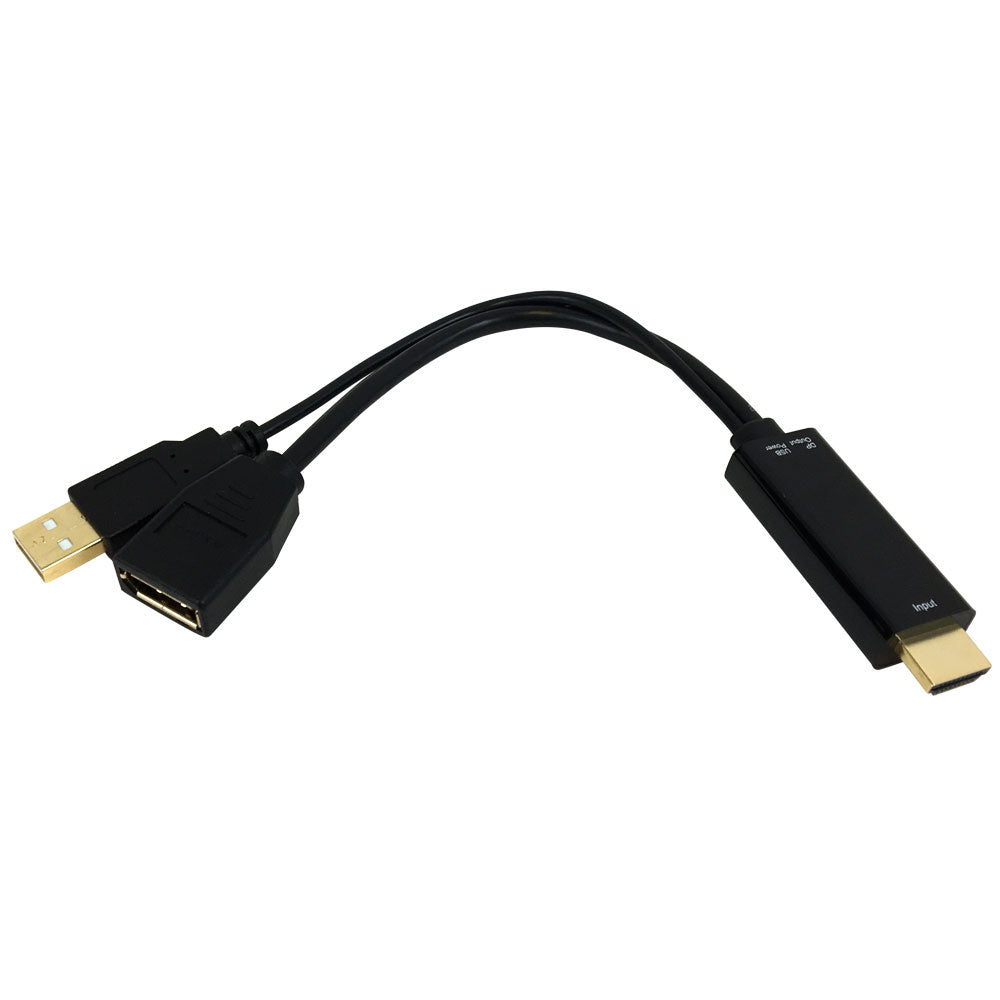

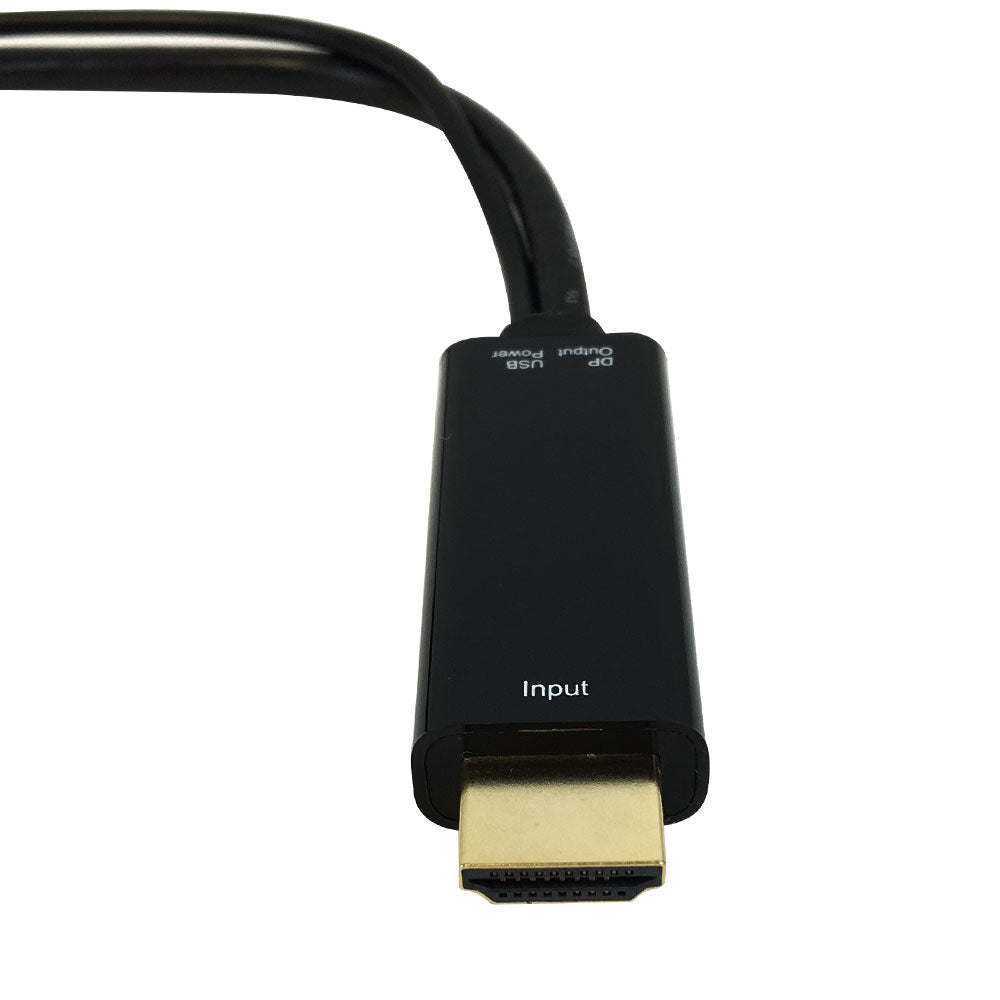

This adapter consists of a HDMI male on one end and a DisplayPort v1.2 female on the other. It is used to connect a HDMI source to a DisplayPort monitor. It is also equipped with USB A male plug for additional power in the instance there is not enough power supplied from HDMI source.
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Gold |
| Size | 20.8x11x245mm |
| Power Consumption | 500mA |
| Operating Temperature | 0℃ ~ 45℃ |
| Storage Temperature | -10℃ ~ 80℃ |
| Connectors | |
| Connector A | HDMI Male |
| Connector B | DisplayPort Female |
| Connector C | USB A Male (for power supply) |
| Performance | |
| Resolution | up to 4096 x 2160@30Hz (4k x 2k) |
| DisplayPort Version | 1.2 |
| HDCP Compliant | Compliant, Version 1.4 |
| Support | HDMI Input with Link Rate up to 2.97 Gbps/Data Pair, Color Depth up to 48 Bits, 3D Video Timings DisplayPort Output with Link Rate HBR2/HBR/RBR, AUXCH 1 Mbps, eDP Operation |
| Audio | 7.1 Ch up to 192 KHz Sample Rate |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Certifications | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.09 lbs [0.04 kg] |
