This riser rated Cat6a bulk cable is 500 feet in length and consists of 4 pairs of 28AWG stranded wires. It is typically used to manufacture Cat6a ultra-thin patch cables and terminated with Cat6a RJ45 plugs designed for ultra-thin cable.
Note: Longest recommended terminated length using this cable is 25ft.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Cable Diameter | 3.6mm |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 28 AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 7/0.13 BC |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR/FT4 [Riser Rated] |
| Shielding | None, UTP |
| Temperature Rating | 75°C |
| Approvals | |
| c(UL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 7.0 lb |
Spec Sheets:
Related Products
SKU: CZSTP-SOL350-B
AVAILABILITY: In stock (5 items)
PRODUCT TYPE: Cat5e
VENDOR: Modcom IT Solutions
Product Description TechCraft CAT5e network cables transmit at up to 1000 MbpsF/UTP Cable with overall foil shield and drain wireCompatible with 100 Base T/1000 Base T (gigabit) networksSolid core wireShieldedCable: 4 pair STP, F/UTP, CMG (cUL) certified
SKU: BK-C6STU-4BK-500
AVAILABILITY: In stock (5 items)
PRODUCT TYPE: Cables
VENDOR: Modcom IT Solutions

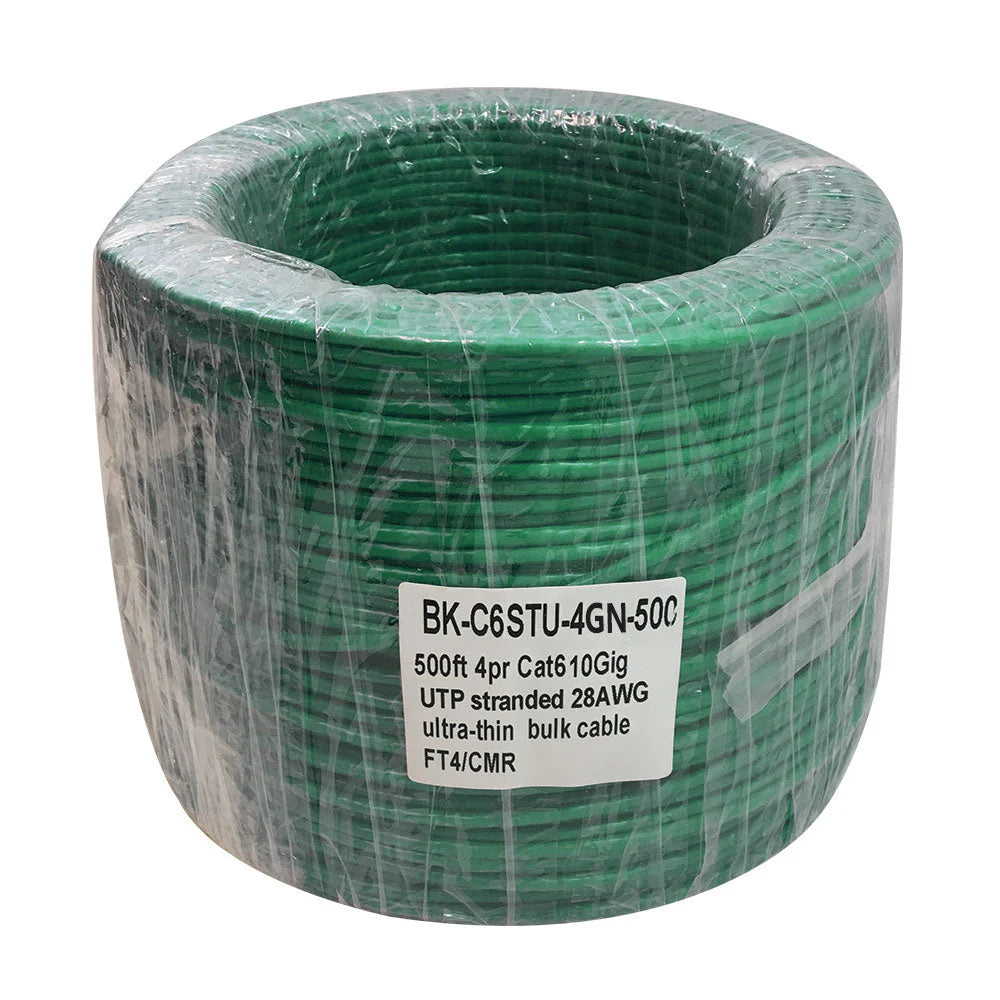

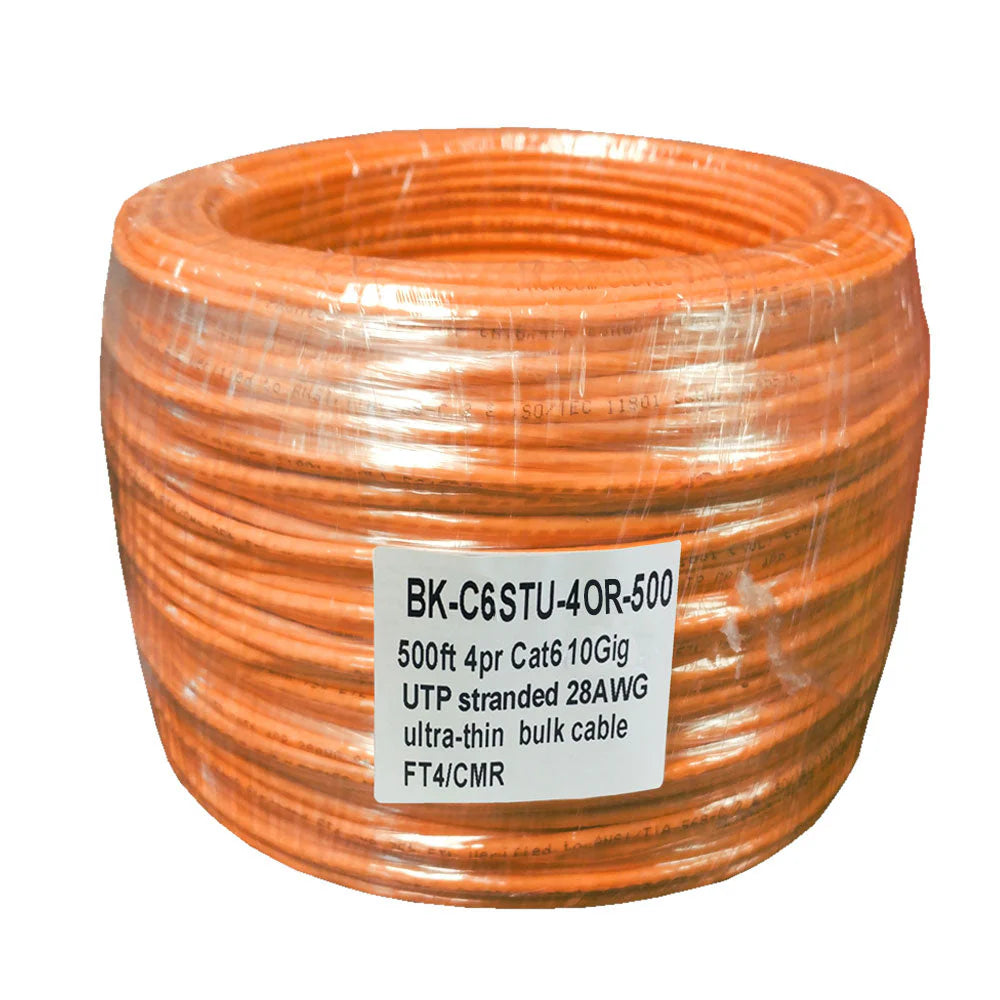

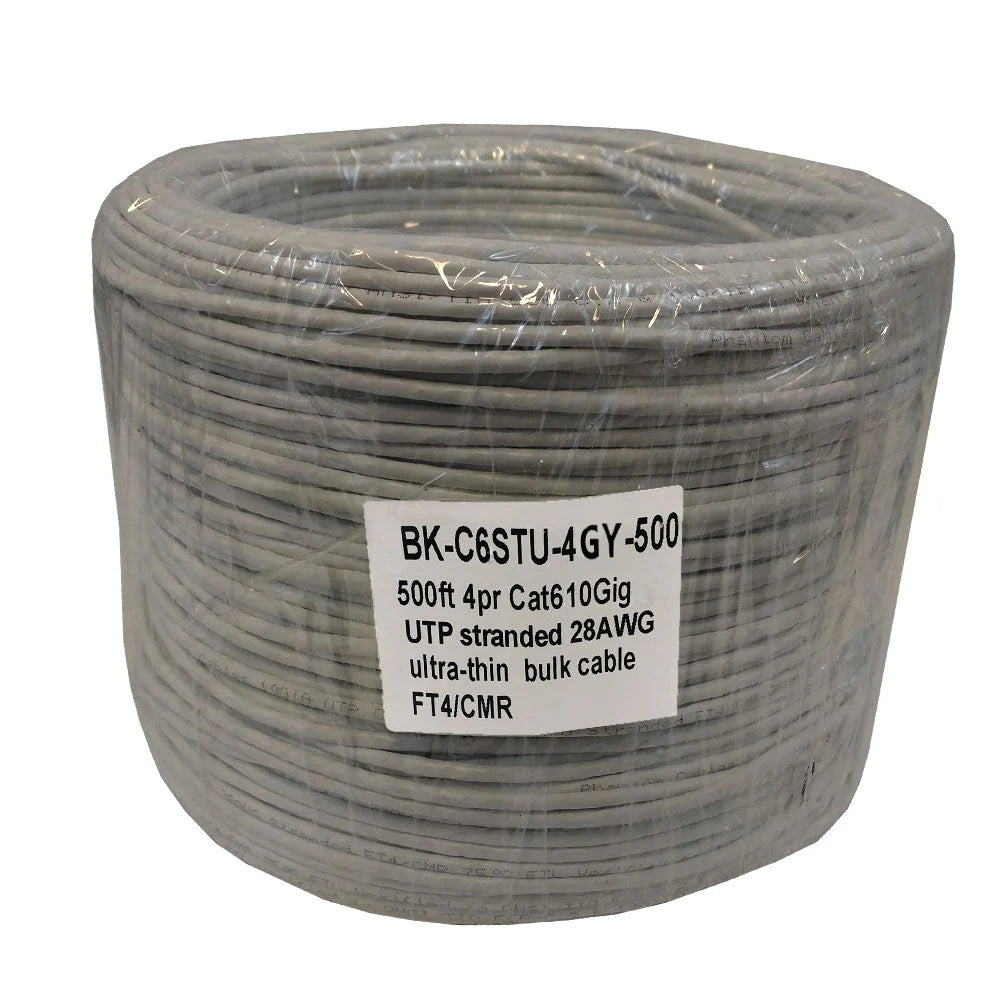

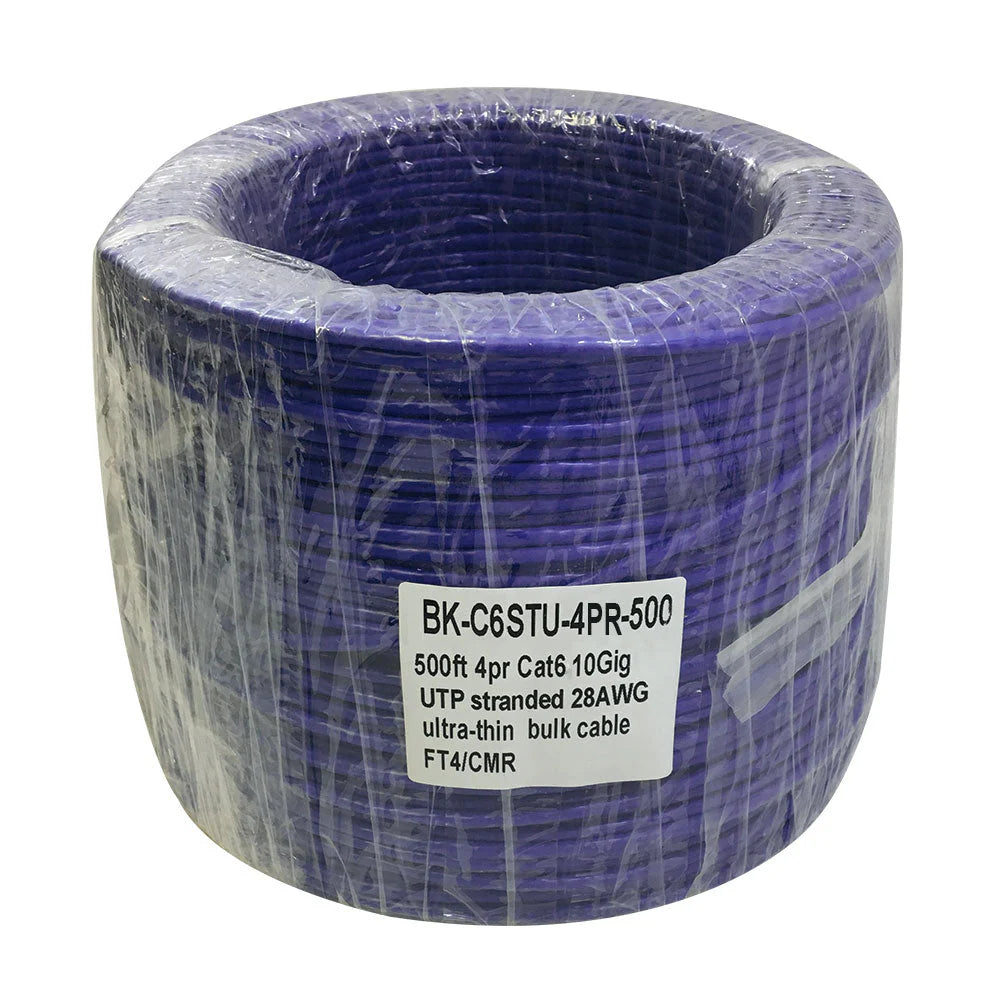

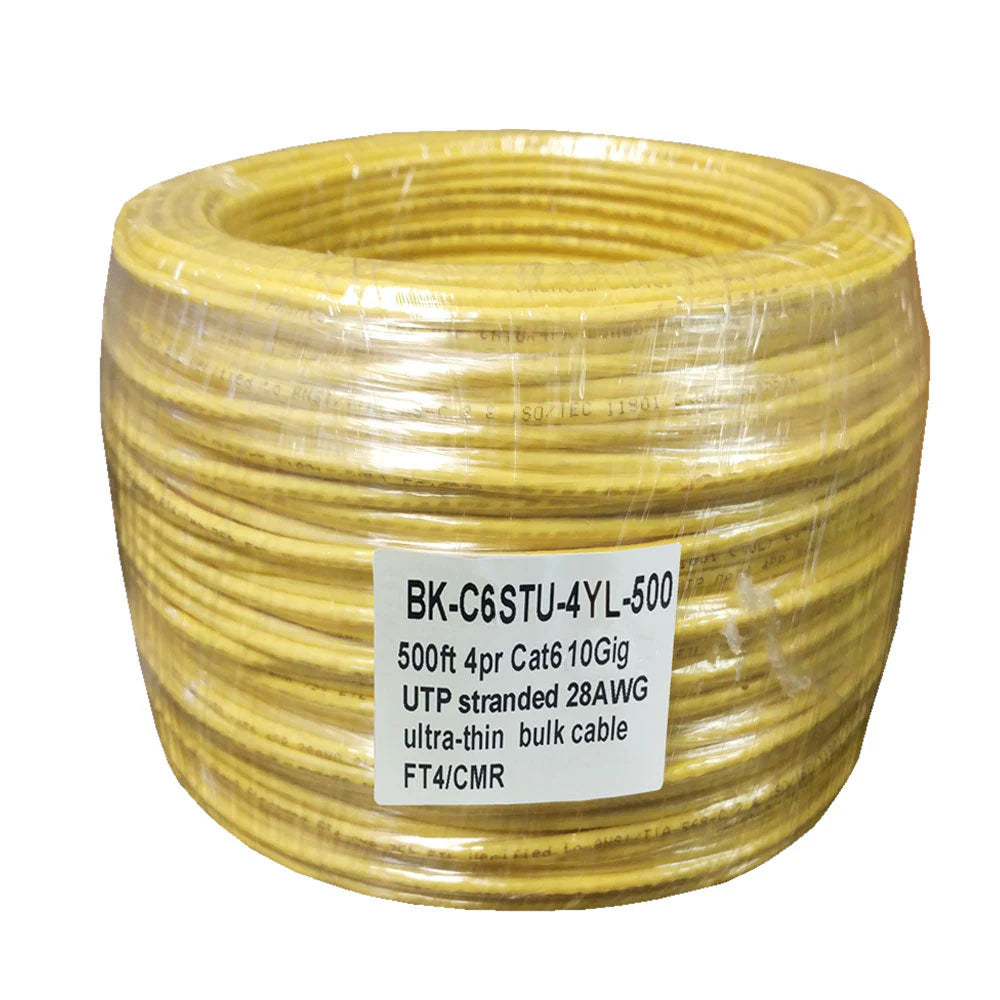

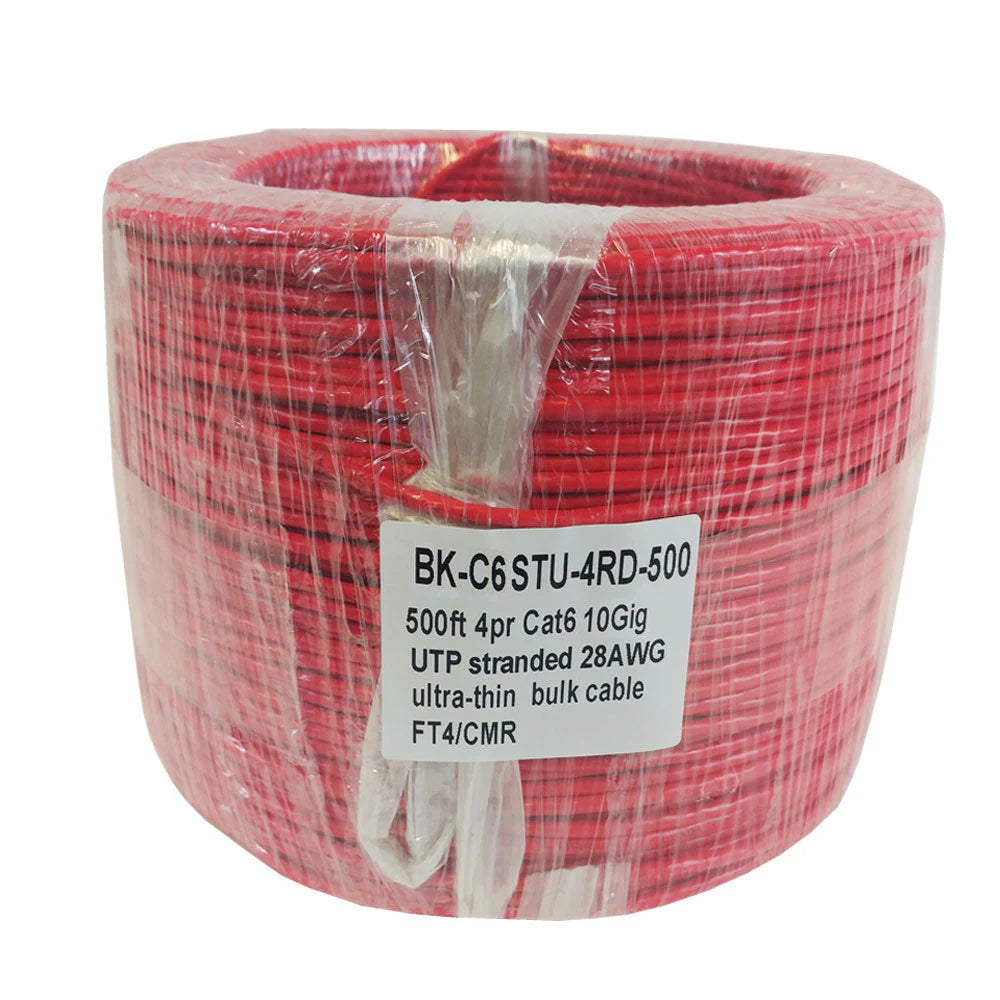

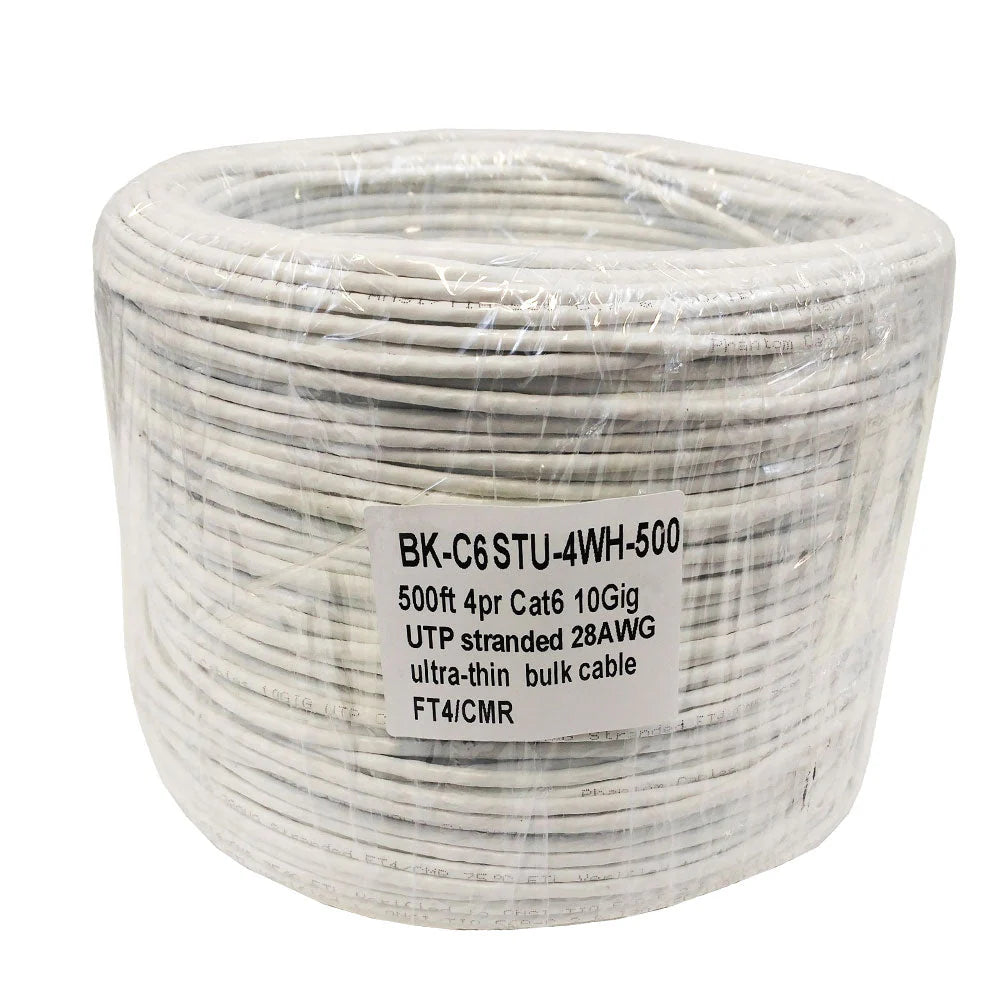

Overview This riser rated Cat6 bulk cable is 500 feet in length and consists of 4 pairs of 28AWG stranded wires. It is typically used to manufacture Cat6 ultra-thin patch cables and terminated with Cat6 RJ45 plugs designed for ultra-thin...
