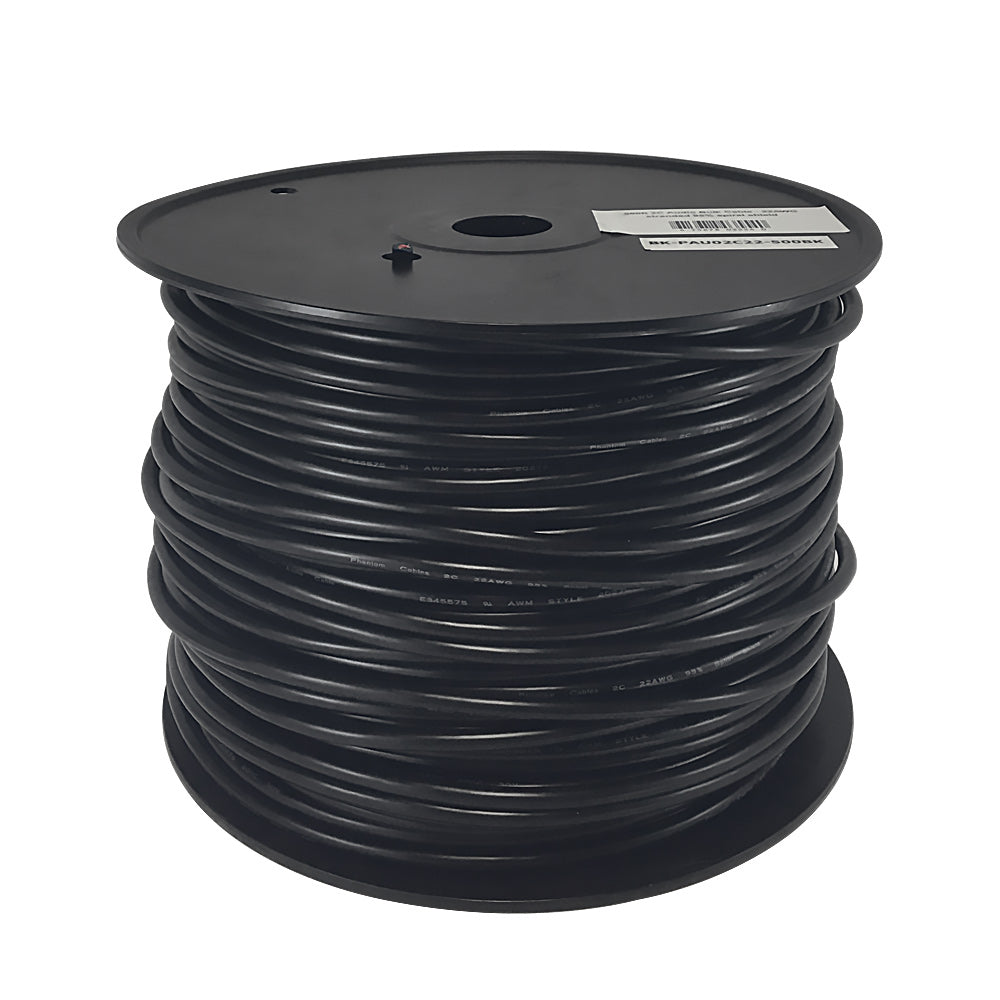

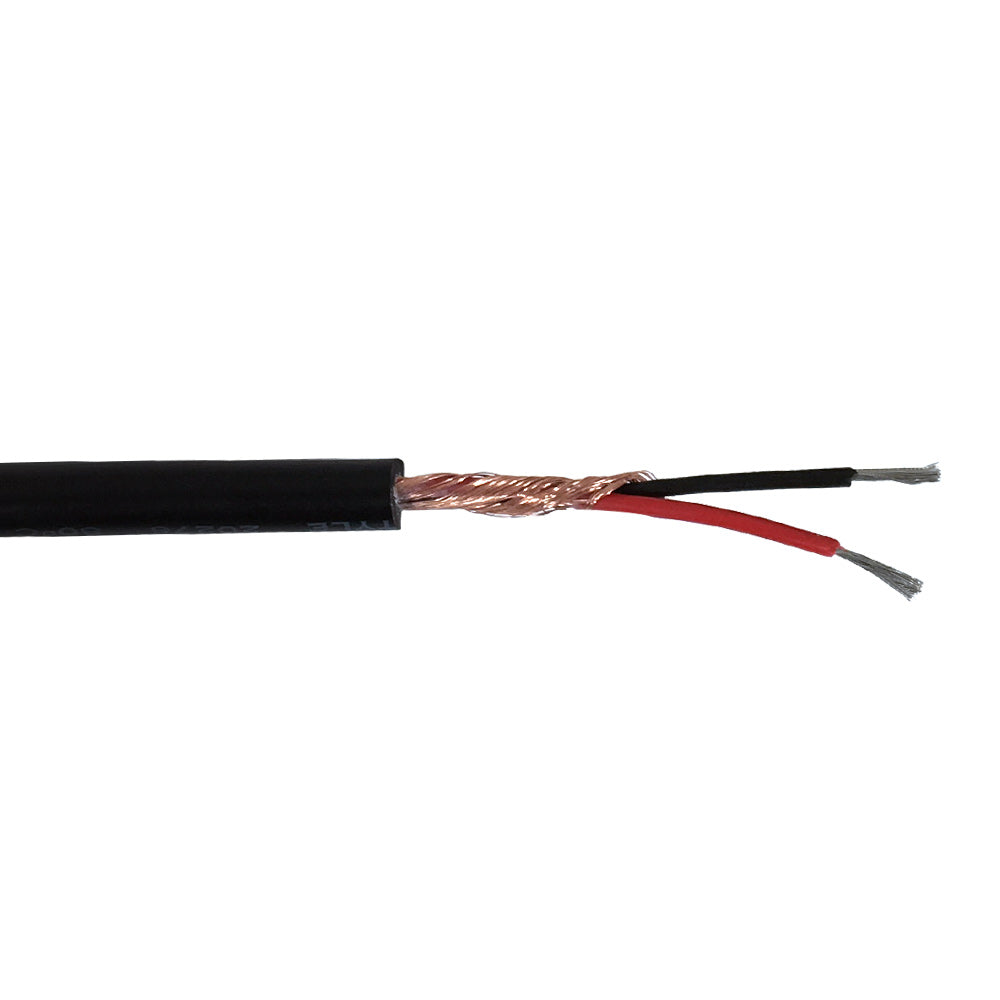

This bulk audio cable consists of 2 conductors of 22AWG stranded wire, is black in color and 500 feet in length. It is typically used to interconnect audio devices.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black |
| Cable Diameter | 6 +/- 0.2mm |
| Number of Conductors | 2 Conductors |
| Wire Gauge | 22AWG Stranded |
| Conductor Material | 100% Tinned Copper |
| Stranding Count & Diameter | 41/0.100 +/- 0.008mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shielding | 95% Bare Copper Spiral Shield |
| Voltage Rating | 30V |
| Temperature Rating | 80℃ |
| Approvals | |
| c(UL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 17.8 lbs [8.1kg] |
