4 inch HDMI Male to USB Type-C Female 4K@60Hz Adapter - BLACK
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Overview

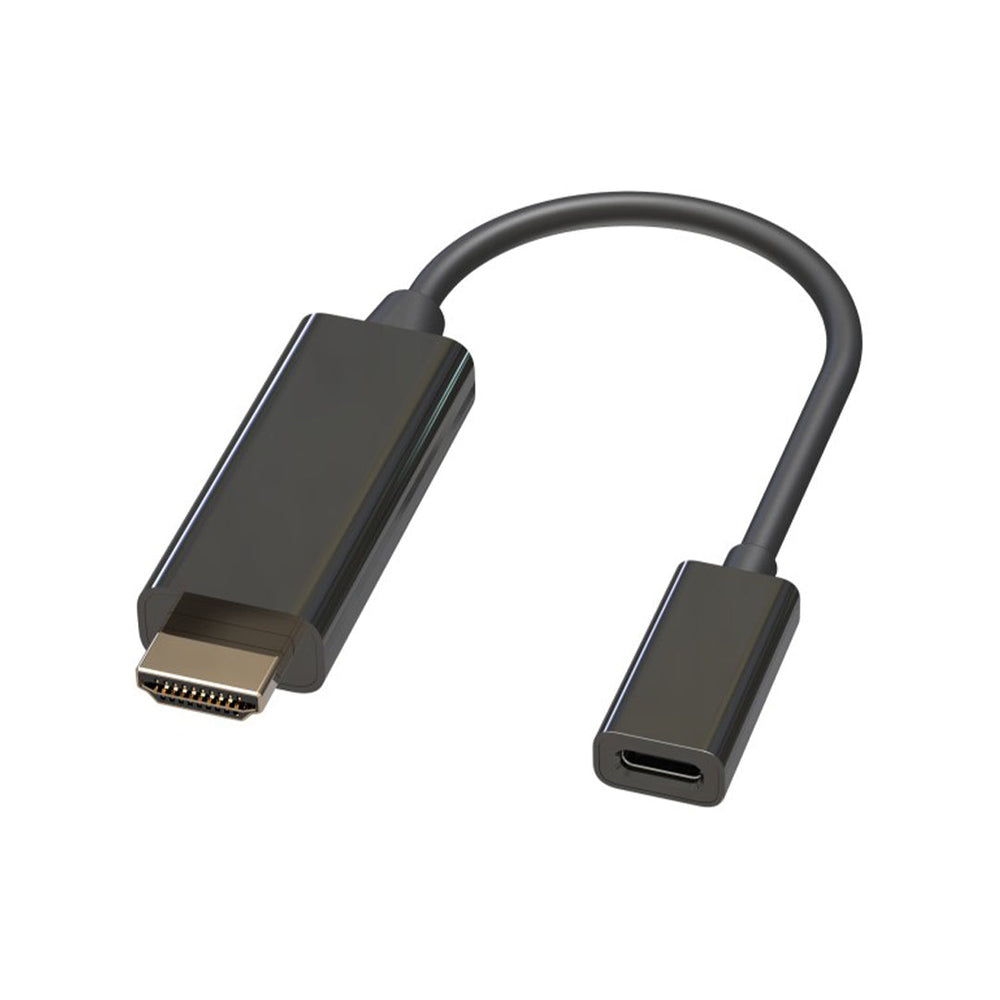

This adapter consists of a HDMI male on one end and an USB Type-C female on the other. It is used to connect a HDMI source such as a PC or tablet to a USB-C display, monitor or projector (with DP1.2 support) via a Type-C male to male cable (not included) and maximum resolution of 4096 x 2160@60Hz.
Features:
HDMI:
- Supports 8bit color Depth
- Supports both HDCP1.4 and HDCP2.2
- Status and Control Data Channel (SCDC)
-
Resolution up to 4Kx2K@60Hz for 4:4:4 format, HDR
USB-C:
- Support DP 1.2 specification
- Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data Rate per lane
- Resolution up to 4Kx2K@60Hz for 4:4:4 format
- 8bit color Depth
- Hot-Plug Detect
|
|
Ultra High-Definition ResolutionSupports video resolutions up to 4K@60Hz. Supports 8bit Color DepthThis adapter supports an 8bit color depth with 4:4:4 color format. Support Four Lanes Data RatesCapable of supporting four lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) data rate per lane. |
Specifications
| Physical Characteristics | |
|---|---|
| Input | HDMI Male |
| Output | USB-C Female |
| Operating Temperature | 0℃~45℃ |
| Operating Humidity | 10% ~ 85 % RH (no condensation) |
| Storage Temperature | -10℃~ 80℃ |
| Storage Humidity | 5% ~ 90 % RH (no condensation) |
| Performance | |
| Resolution | 4K@60Hz |
| Power Supply | 5V@500mA Max. (Type-C Device) |
| Approvals | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.50 lbs [0.23 kg] |
