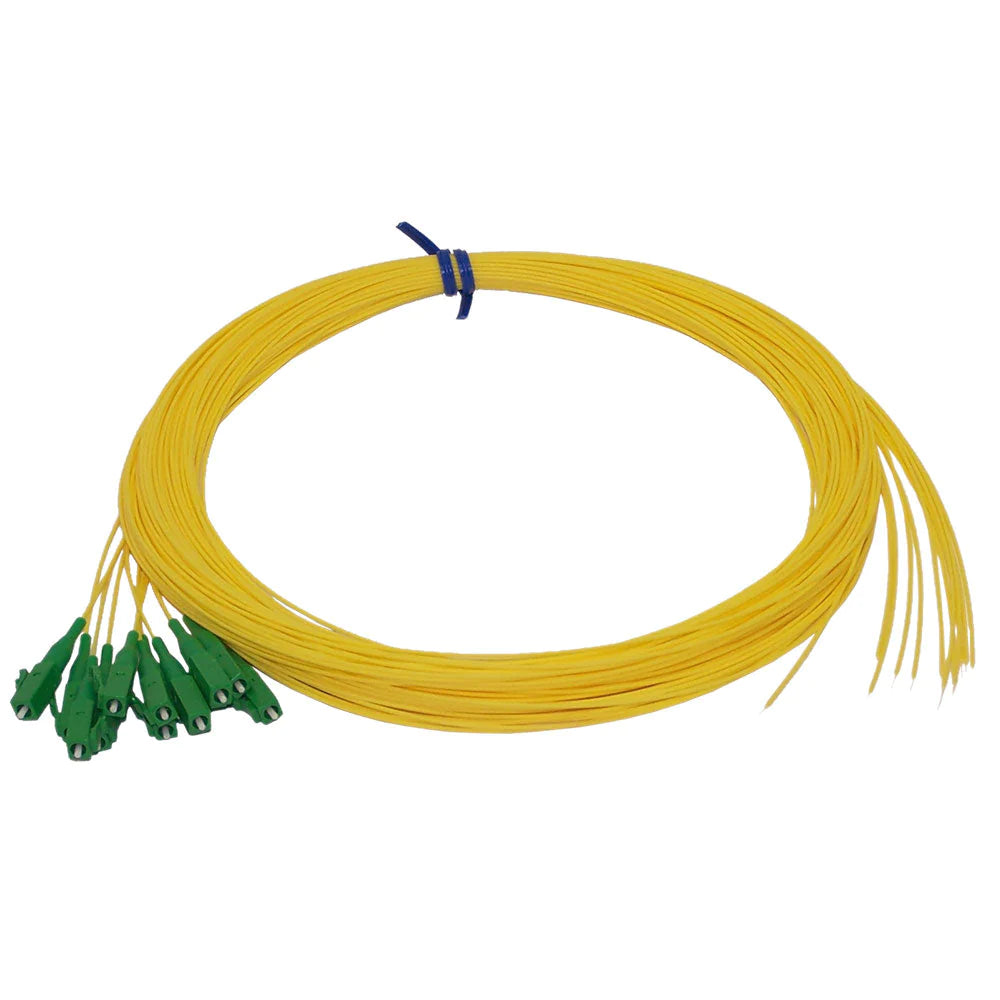

3m LC/APC 12-Fiber OS2 Singlemode Simplex 9 micron - 900um Pigtail - Yellow

$49.39

Hurry up! Sales Ends In

Hurry! Only 5 Left in Stock!

Real time 23 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

These 9 micron (OS2) fiber optic pigtails have terminated LC/APC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.

Physical Characteristics
Cable Length 3m [9.84 foot]
Color Yellow
Cable Diameter 900 micron
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Low Smoke Zero Halogen (LSZH)
Connector(s)
Connector A 1 - LC/APC Simplex Male
Connector B Un-Terminated
Performance
Insertion Loss ā‚¬Ā¹0.3db @ 1550nm
Return Loss ā€°Ā„55db
Speed 10 Gbps
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1 Pack of 12 Cables
Product Weight 0.20 lbs [0.09kg]
Warranty Information
Warranty Limited Lifetime
3m LC/APC 12-Fiber OS2 Singlemode Simplex 9 micron - 900um Pigtail - Yellow

3m LC/APC 12-Fiber OS2 Singlemode Simplex 9 micron - 900um Pigtail - Yellow

$49.39
