Overview

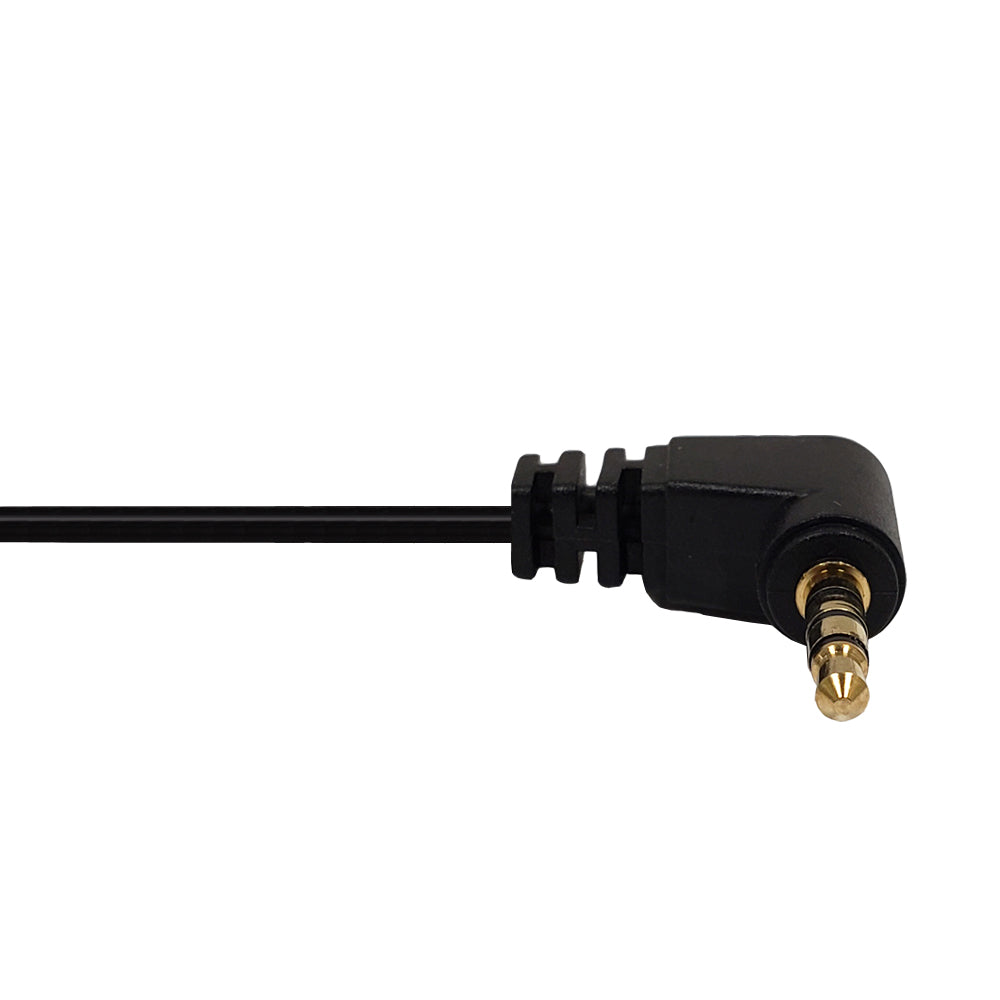

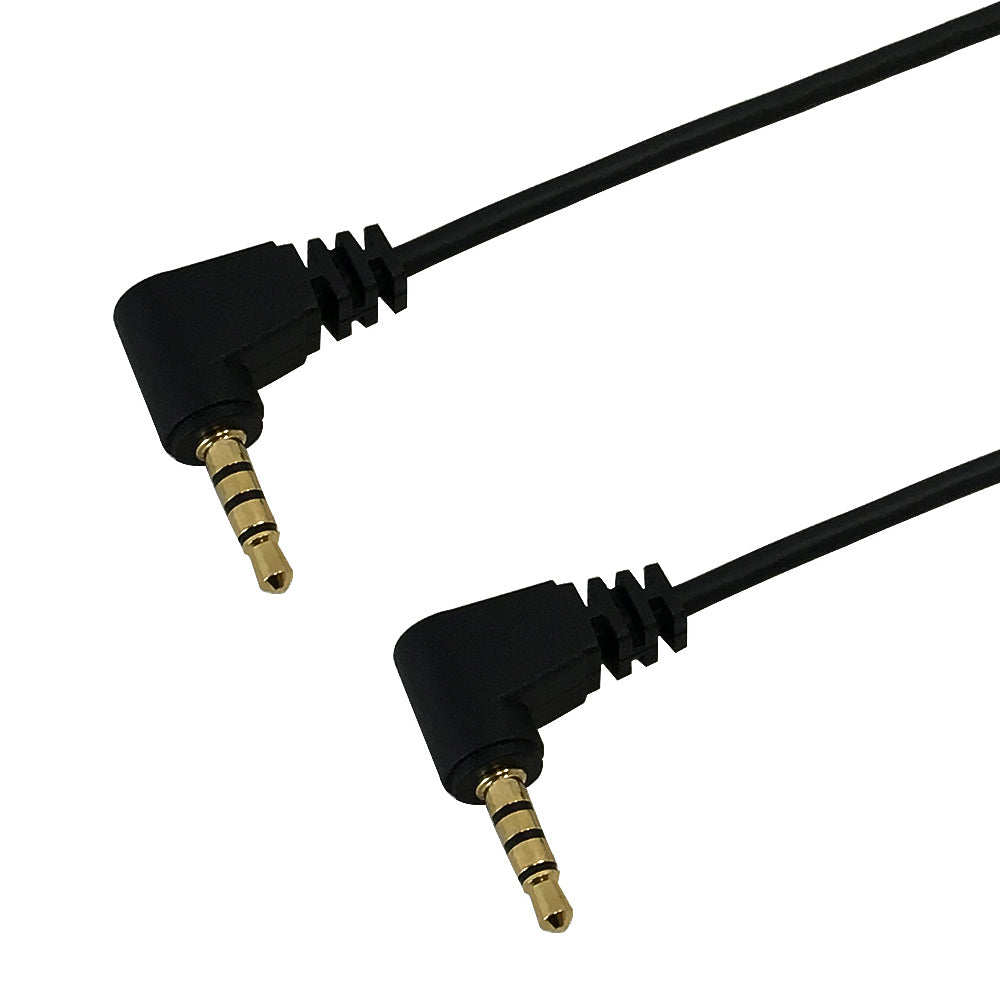

This ultra slim 4C audio cable has a 3.5mm right angle male on one end and a 3.5mm right angle male on the other. It is typically used to connect audio devices such as iPods, MP3 players and smart phones to a 3.5mm headset with a microphone. The right angle connectors and cable are designed to be lightweight, durable and fit perfectly in tight fit applications.
|
| Slim Connector DesignThe connector moldings have a slim profile to fit properly in today's compact electronic devices. Flexible Cable ShieldingThis audio cable features 85% tin copper spiral braid cable shielding for increased flexibility. Ultra-Thin Cable with a Riser Fire Rated JacketThe ultra-thin cable comes in a FT4 riser fire rated jacket for in-wall use.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 2.8mm |
| Wire Gauge | 28AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 85% Bare Copper Spiral |
| Strain Relief | Molded PVC |
| Storage Temperature | -10 °C to +70 °C |
| Operating Temperature | 0 °C to + 45 °C |
Connectors | |
| Connector A | 3.5mm 4C Right Angle Male |
| Connector B | 3.5mm 4C Right Angle Male |
| Connector A Diameter | 9mm |
| Connector B Diameter | 9mm |
Approvals | |
| c(UL)us | Compliant - Cable |
Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Materials | Compliant |
Package Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
