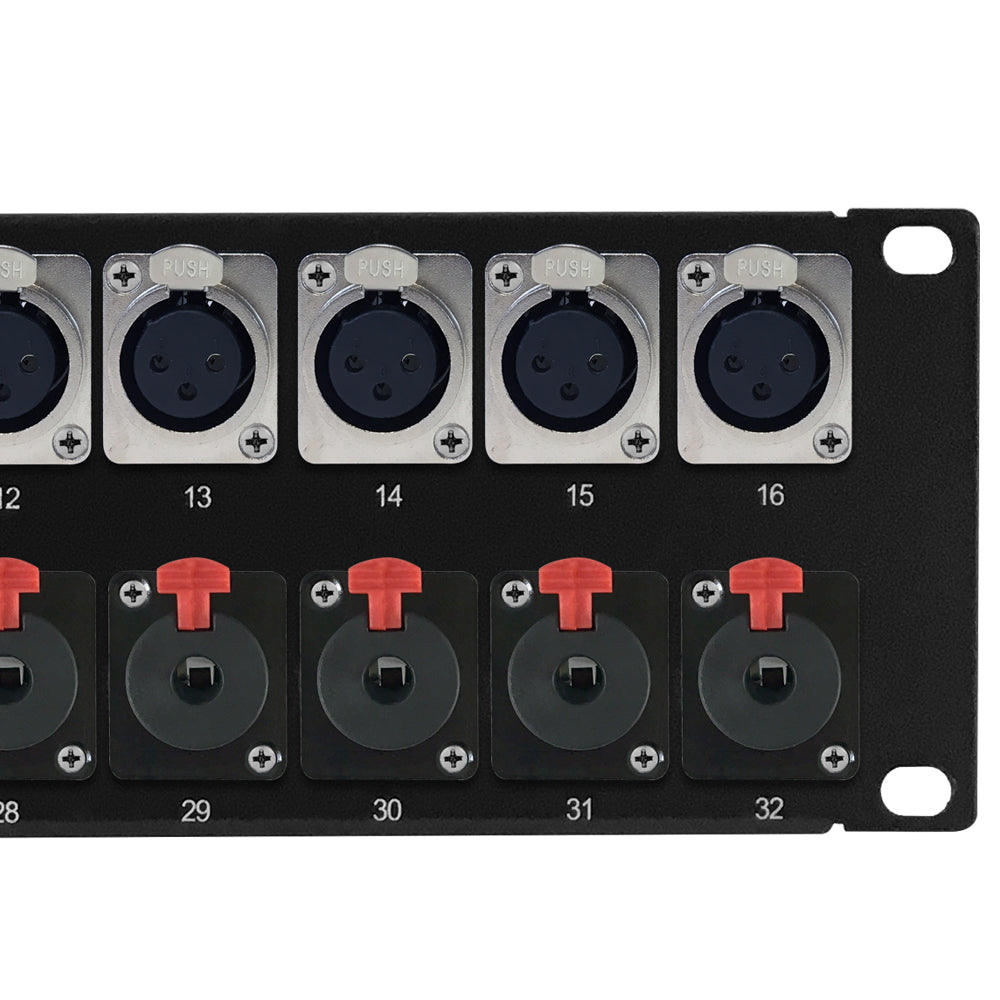

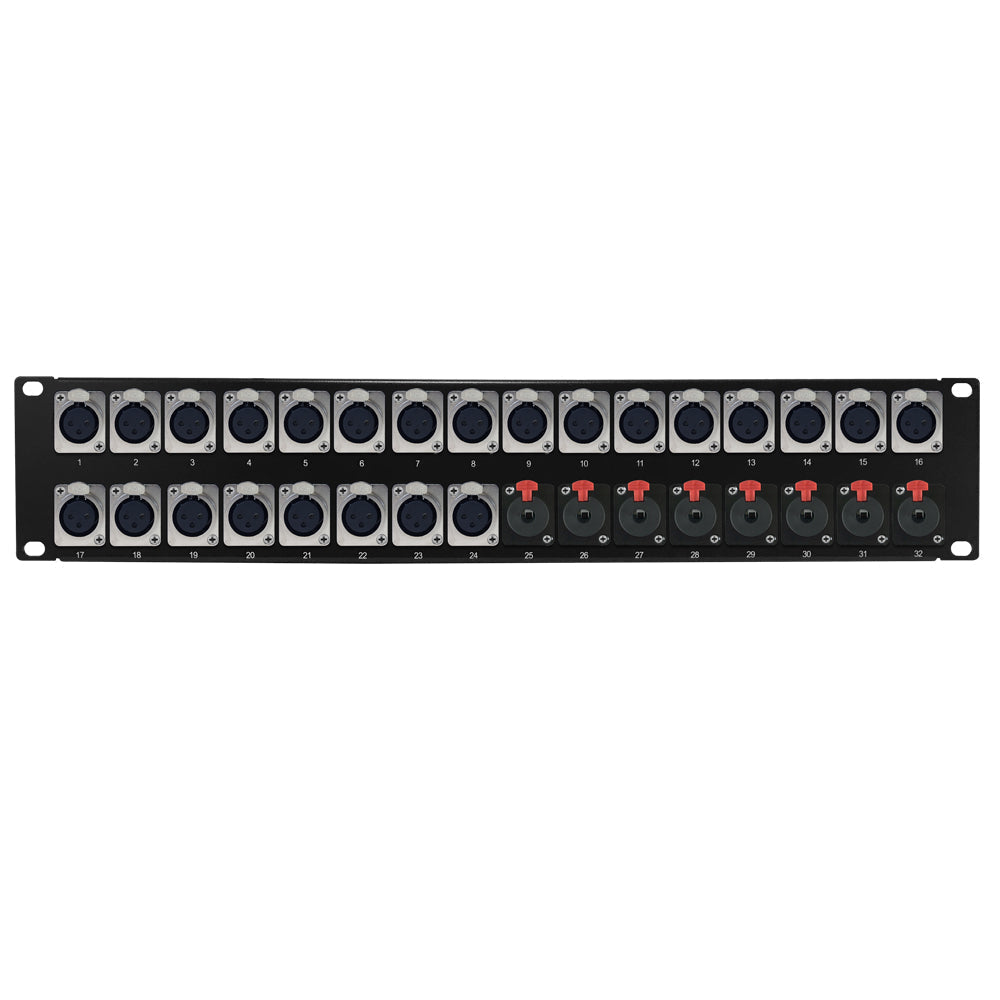

This 24 port XLR patch bay has eight 1/4" female and twenty four locking XLR female connectors on the front and solder connectors on the back. It is meant to be mounted on a 19" rack or cabinet and used as a return snake patch panel.
| Physical Characteristics | |
|---|---|
| Color | Black Powder Coated |
| Material | Steel |
| Connector Type | 8 - 1/4" TRS Female 24 - Locking XLR Female |
| Ports | 32 |
| Product Dimensions | 19" W x 3.5" H [48 cm W x 8.9 cm H] |
| Rackmountable | Yes, 19" Rack or Cabinet |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 - Patch Panel |
| Product Weight | 2.3 lbs [1.04 kg] |
