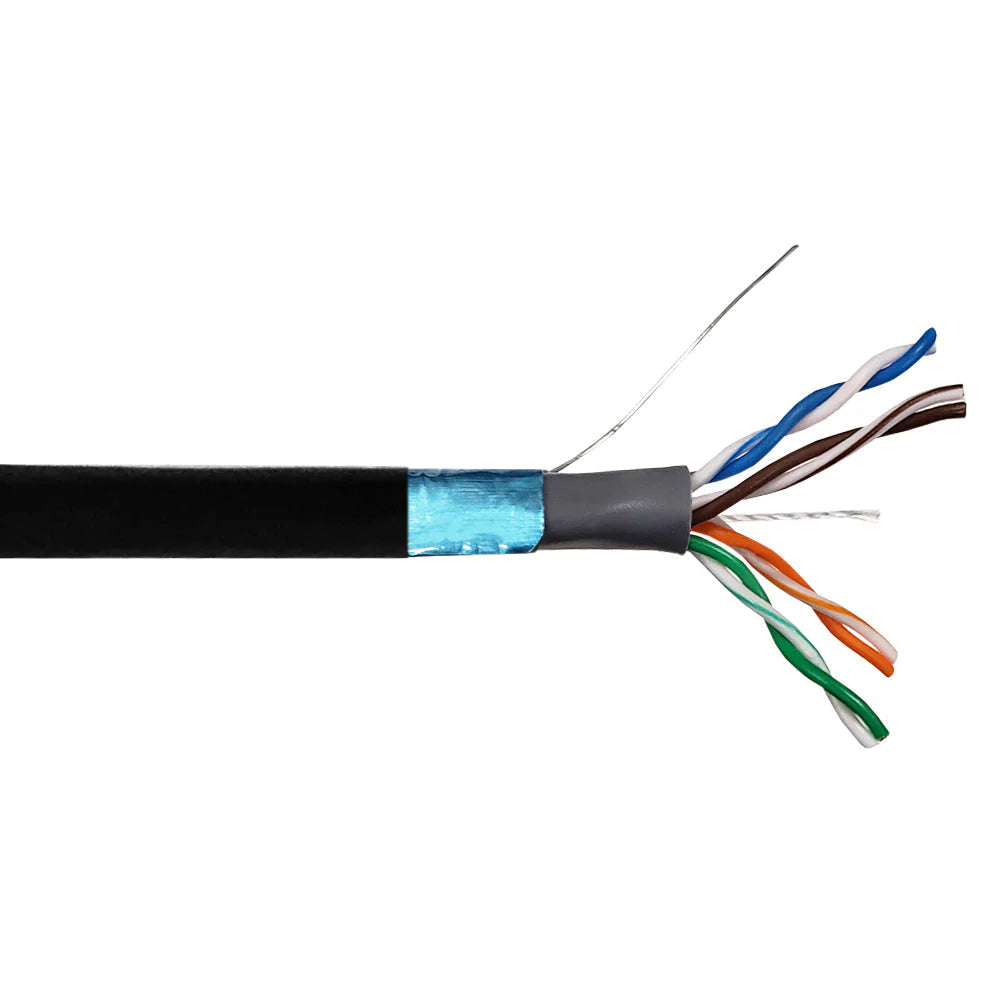

This bulk outdoor rated Cat5e cable is 100 feet in length and consists of 4 pairs of 24AWG solid wires. It is typically used outdoors either above or below ground as premise wiring to connect network devices.
| Physical Characteristics | |
|---|---|
| Cable Length | 100 foot [30.5m] |
| Color | Black |
| Number of Pairs | 4 Pairs |
| Wire Gauge | 24AWG Solid |
| Conductor Material | 100% Bare Copper |
| Product Standard Certification | CMX |
| Jacket Material | LSZH (UV) |
| Jacket Rating | Direct Burial / UV |

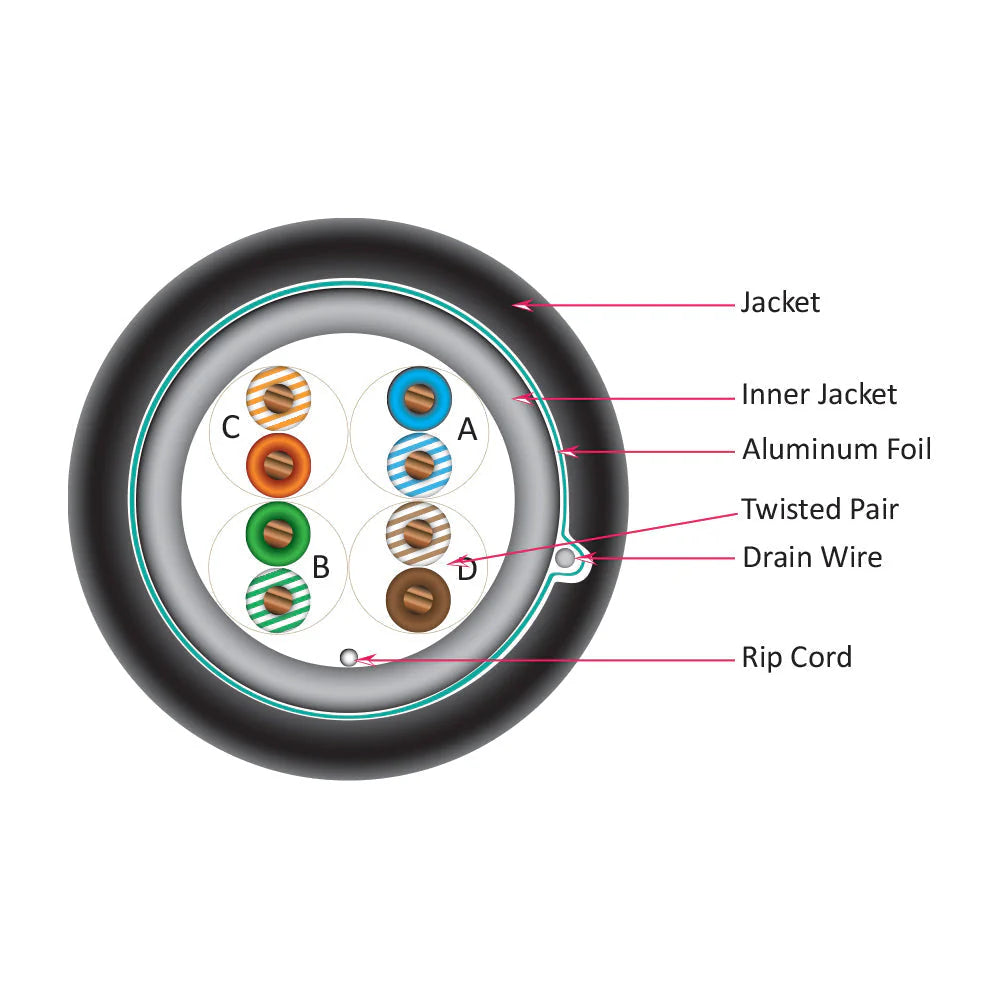

| Inner Jacket Average Thickness | 0.016 inch [0.40 mm] |
| Inner Jacket Minimum Point Thickness | 0.014 inch [0.36 mm] |
| Inner Jacket Outer Diameter | 0.19 inch [4.80±0.10 mm] |
| Aluminum Foil | Compliant |
| Drain Wire (Tinned Copper) |
7/0.16 |
| Outer Jacket Average Thickness | 0.023 inch [0.60 mm] |
| Outer Jacket Minimum Point Thickness | 0.021 inch [0.54 mm] |
| Outer Diameter | 0.24 inch [6.20±0.10 mm] |
| Rip Cord | Compliant |
| Cable Shielding | None |
| Insulation | PE |
| Insulation Average Thickness | 0.008 inch [0.200mm] |
| Insulation Minimum Point Thickness | 0.007 inch [0.185mm] |
| Insulation Diameter | 0.036 inch [0.91±0.005mm] |
| Twisted Pair Diameter | 0.072 inch [1.82±0.01mm] |
| Temperature Rating | 75°C |
| Rated Voltage | 300V |
| Mechanical Characteristics | |
| Before Tensile Strength (Mpa) |
≥13.8 |
| Aging Elongation (%) |
≥100 |
| Aging Condition (ºCxhrs) |
100x168 |
| After Tensile Strength (Mpa) |
≥85% of unaged |
| Aging Elongation (%) |
≥50% of unaged |
| Cold Bend (-20±2º Cx4hrs) |
No Crack |
| Environmental Characteristics | |
| 1.0-350MHz Impendance (Ohms) |
100±15 |
| 1.0-350MHz Delay Skew (ns/100m) | ≤45 |
| Pair-to-Ground Capacitance Unbalance (pF/100m) | ≤330 |
| Max. Conductor DC Resistance 20°C (ohms/km) | 88.5 |
| Resistance Unbalance (%) | ≤5 |
| PoE Compliance | |
| PoE / IEEE 802.3af Type 1 | 15.4W (37-57V) |
| PoE+ / IEEE 802.3at Type 2 | 30W (42.5-57V) |
| PoE++ / IEEE 802.3bt Type 3 | 60W (42.5-57V) |
| 4PPoE / IEEE 802.3bt Type 4 | 100W (41.1-57V) |
| Environmental | |
| RoHS, c(ETL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 3.3 lbs [1.5kg] |
