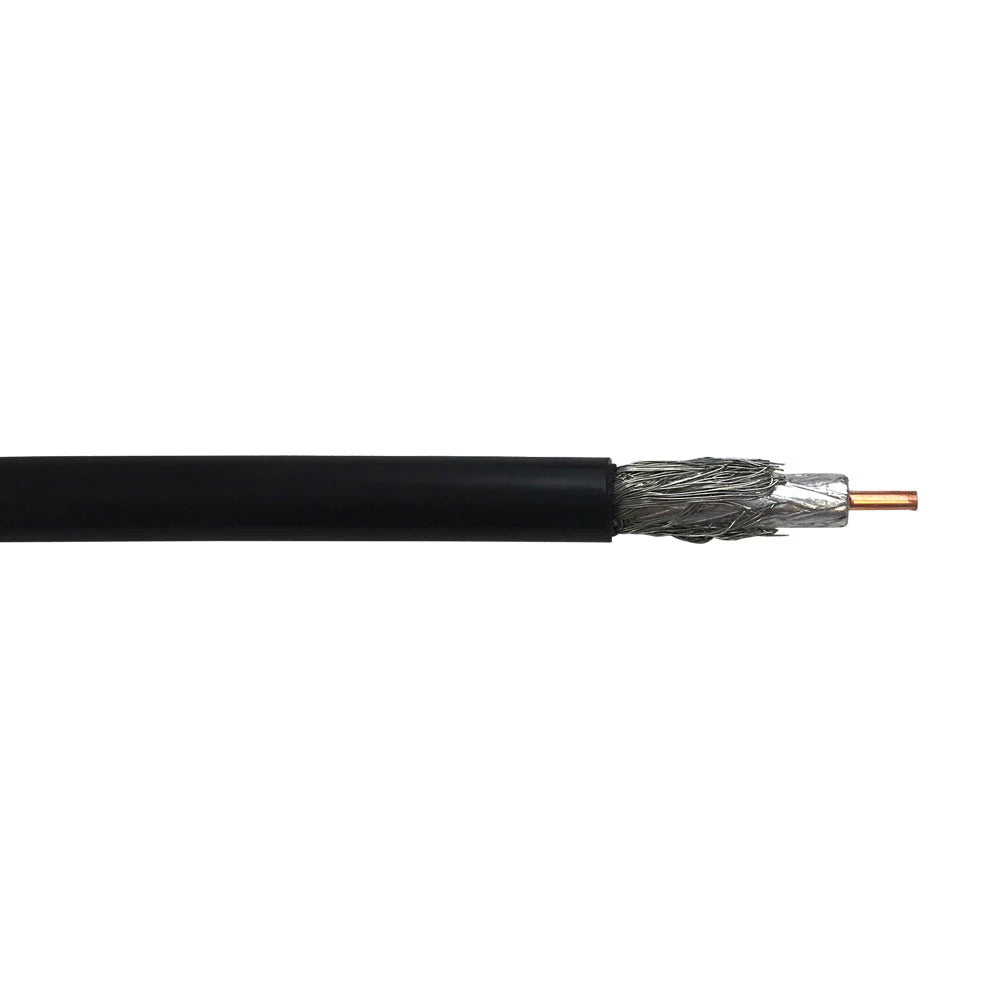

1000ft RF-195 bulk cable 90% TC braid + foil Black
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This low loss bulk RF-195 cable is 1000 feet in length and consists of a 0.94mm (0.037 inch) solid bare copper wire. It is ideal for jumper assemblies in wireless communication systems, short antenna feeder runs, GPS and mobile antenna applications.
Specifications
| Physical Characteristics | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Color | Black | ||||||||||
| Inner Conductor Material | Bare Copper | ||||||||||
| Dielectric Material | Foam PE | ||||||||||
| First Shield | Bonded Aluminum Foil | ||||||||||
| Second Shield | Tinned Copper Wire Braid (96*0.12) 90% Coverage | ||||||||||
| Jacket | PE, Outdoor UV Resistant, Black | ||||||||||
| Diameters |
|
||||||||||
| Performance | |||||||||||
| Impedance | 50±3Ω | ||||||||||
| Capacitance | 83pF/m | ||||||||||
| Velocity of Propagation | 80% |
||||||||||
| DC Resistance |
Inner Conductor Outer Conductor 24.9Ohm/Km 16.1Ohm/Km |
||||||||||
| Shielding Effectiveness | ≥90dB | ||||||||||
| Temperature |
Installation: - 20℃ ~ +65℃ Operating Temp: -40℃ ~ +85℃ |
||||||||||
| Attenuation (@20℃ ) | ||||||||
|---|---|---|---|---|---|---|---|---|
| 150Mhz | 220Mhz | 450Mhz | 900Mhz | 1500Mhz | 1800Mhz | 2000Mhz | 2500Mhz | 5800Mhz |
| 14.6dB/100m | 17.7dB/100m | 25.5dB/100m | 36.5dB/100m | 47.7dB/100m | 52.5dB/100m | 55.4dB/100m | 62.4dB/100m | 98.1dB/100m |
