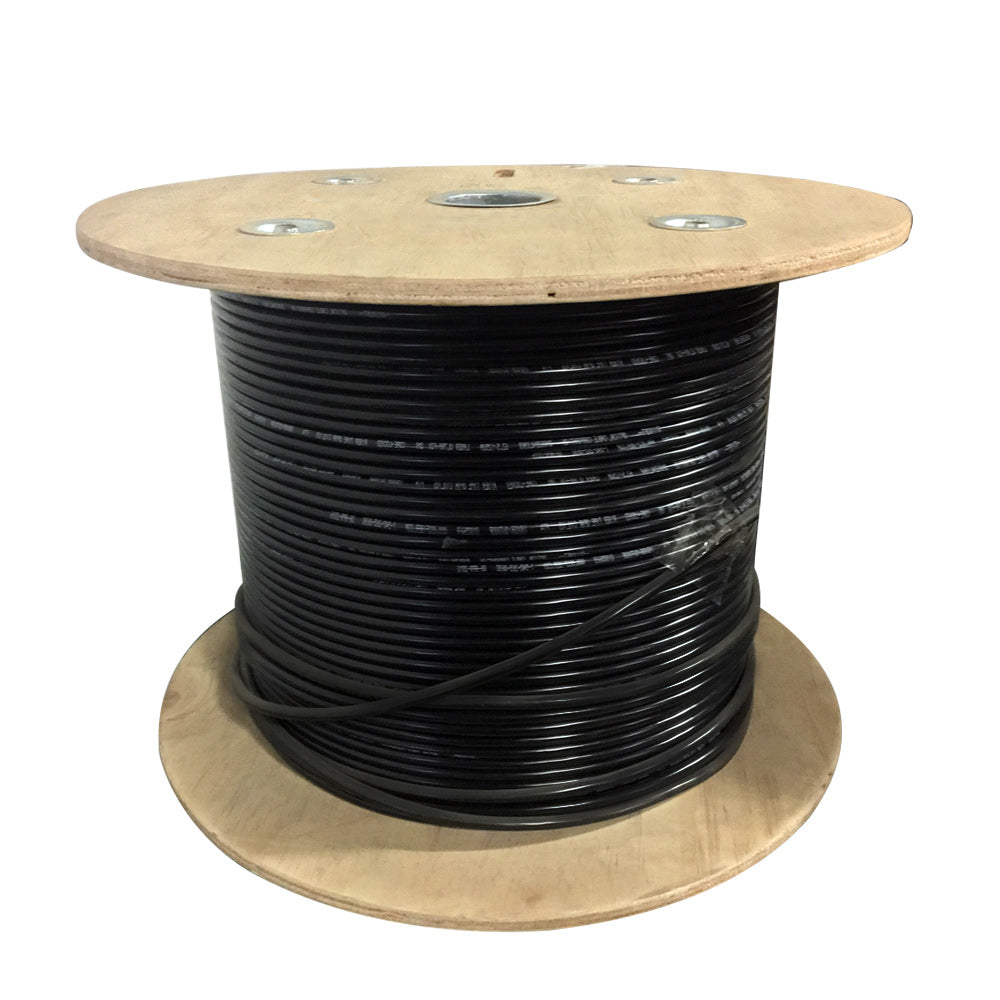

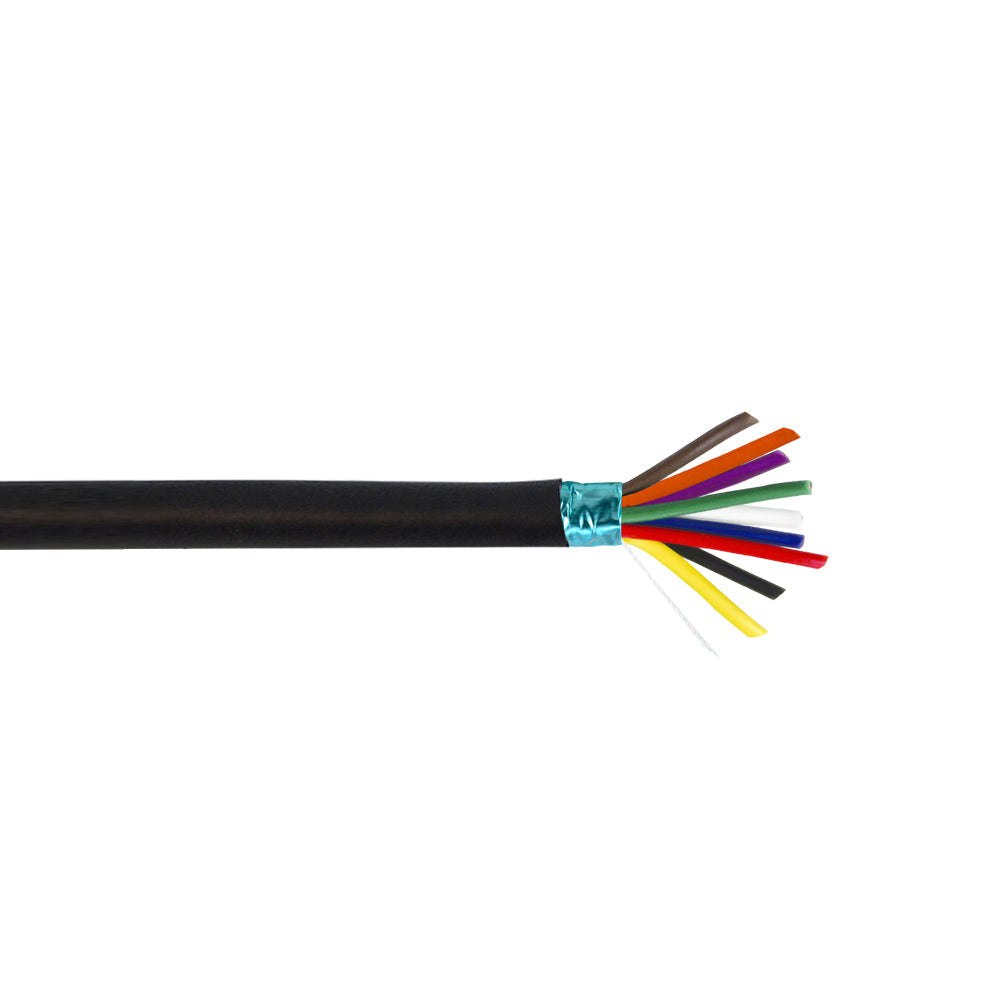

This bulk data cable is 1000ft in length and consists of 9 conductors of 24 gauge stranded wire. It is typically used to interconnect RS-232 data applications.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [304m] |
| Color | Black |
| Cable Diameter | 5.20 mm |
| Number of Conductors | 9 Conductors |
| Wire Gauge | 24AWG |
| Conductor Material | Tinned Copper |
| Conductor Cabling OD | 0.60mm |
| Stranding Count & Diameter | 7/0.20±0.008mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Insulation OD | 1.10±0.05mm |
| Insulation Avg. Thickness | 0.25mm |
| Assemble Cabling OD | 4.00mm (Ref.) |
| Drain Construction | 7/0.200±0.008mm |
| Drain Material | Tinned Copper |
| Al Constructive Side | Inside/Overlap 25% |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket OD | 5.20±0.20mm |
| Jacket Avg. Thickness | 0.51mm |
| Jacket Rating | CMR/CL3/FT4 [Riser Rated] |
| Cable Shielding | 100% Mylar Foil |
| Temperature Rating | 80℃ |
| Tensile Strength | ＞1.05kgf/mm2 : Before Aging ＞70% : After aging |
| Elongation | >100% : Before Aging >65% : After aging |
| Voltage Rating | 90V |
| Dielectric Strength | AC-500V/MIN |
| Insulation Resistance | 100 M (OHMS*KM MIN at 20℃) |
| Approvals | |
| c(UL) | No |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 35.2 lbs |
