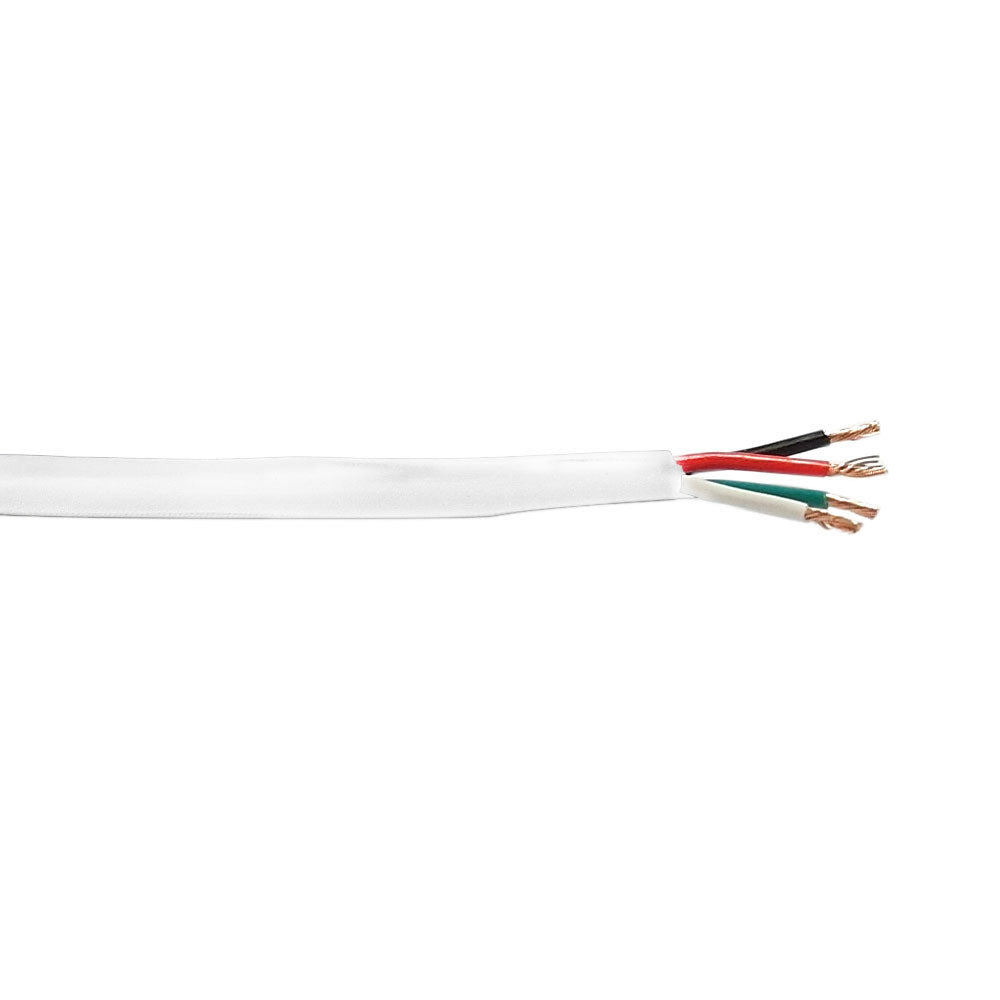

This 4 conductor 22AWG stranded control cable ensures reliable performance in automation and control systems. It is the ideal choice for industrial control panels, automation infrastructure, and commercial systems. Packaged in a 1000ft easy-pull box, this cable is engineered for seamless installation, featuring a durable PVC jacket and a built-in ripcord for efficient stripping.
Features
-
Built for Durability: Constructed with 22AWG stranded copper conductors and a robust PVC jacket, ensuring longevity in diverse operating temperatures (-20°C to +75°C). -
CMR Riser Rated: Designed to meet safety standards for vertical installation in walls and risers, providing compliance and peace of mind for commercial projects. -

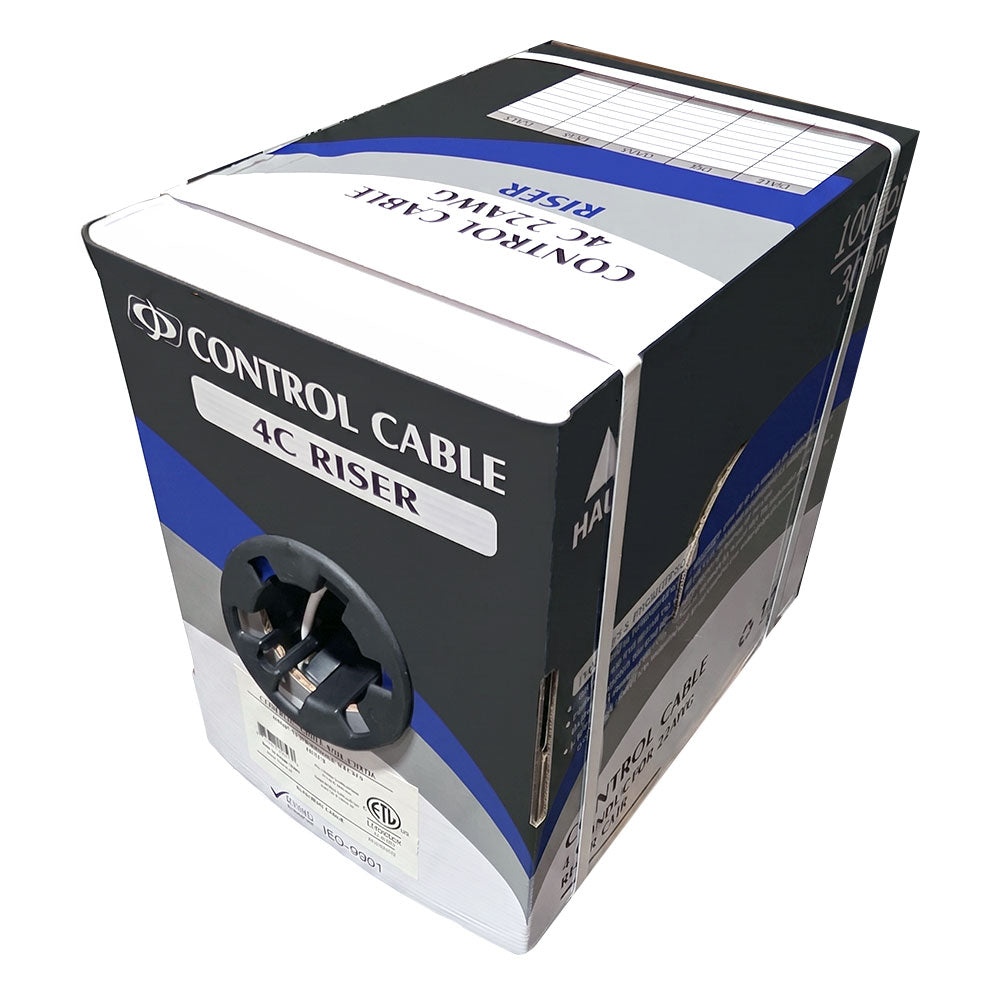

Easy Installation: The 1000ft pull-box design prevents tangles and streamlines deployment, while the integrated ripcord allows for quick and clean jacket removal.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] Pull Box |
| Jacket Color | White |
| Number of Conductors | 4 Conductors (Black, Red, White, Green) |
| Jacket Material | PVC - Polyvinyl Chloride |
| Stranding | 7*0.254mm |
| Nominal Jacket thickness | 0.45mm |
| Nominal Overall Diameter | 4.5mm |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 2.2 mm |
| Wire Gauge | 22 AWG |
| Maximum Voltage | 300V |
| Material (conductors) | Stranded Copper |
| Ripcord | Yes |
| Shielding | Unshielded |
| Operating Temperature | -20℃ ~ +75℃ |
| Before Tensile Strength | ≥13.8 Mpa |
| Aging Elongation | ≥100% |
| Aging Condition | 100x168ºCxhrs |
| After Tensile Strength | ≥85%Mpa of unaged |
| Aging Elongation | ≥50% of unaged |
| Cold Bend | No Crack (-20±2º Cx4hrs) |
| Approvals | |
| c(ETL)us | Compliant |
| ISO 9001 | Compliant |
| ISO 14001 | Compliant |
| ISO 45001 | Compliant |
| Environmental | |
| RoHS | Compliant |
| REACH | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 23.15 lbs |
