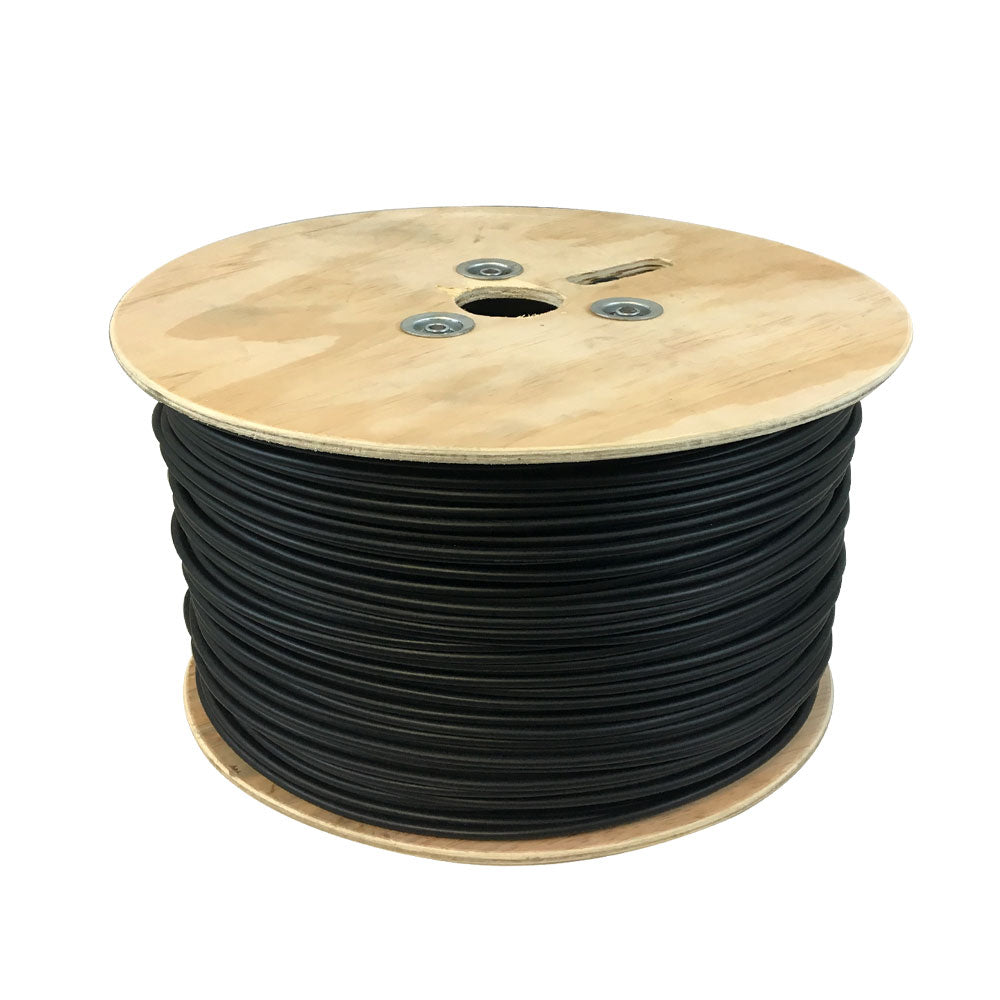

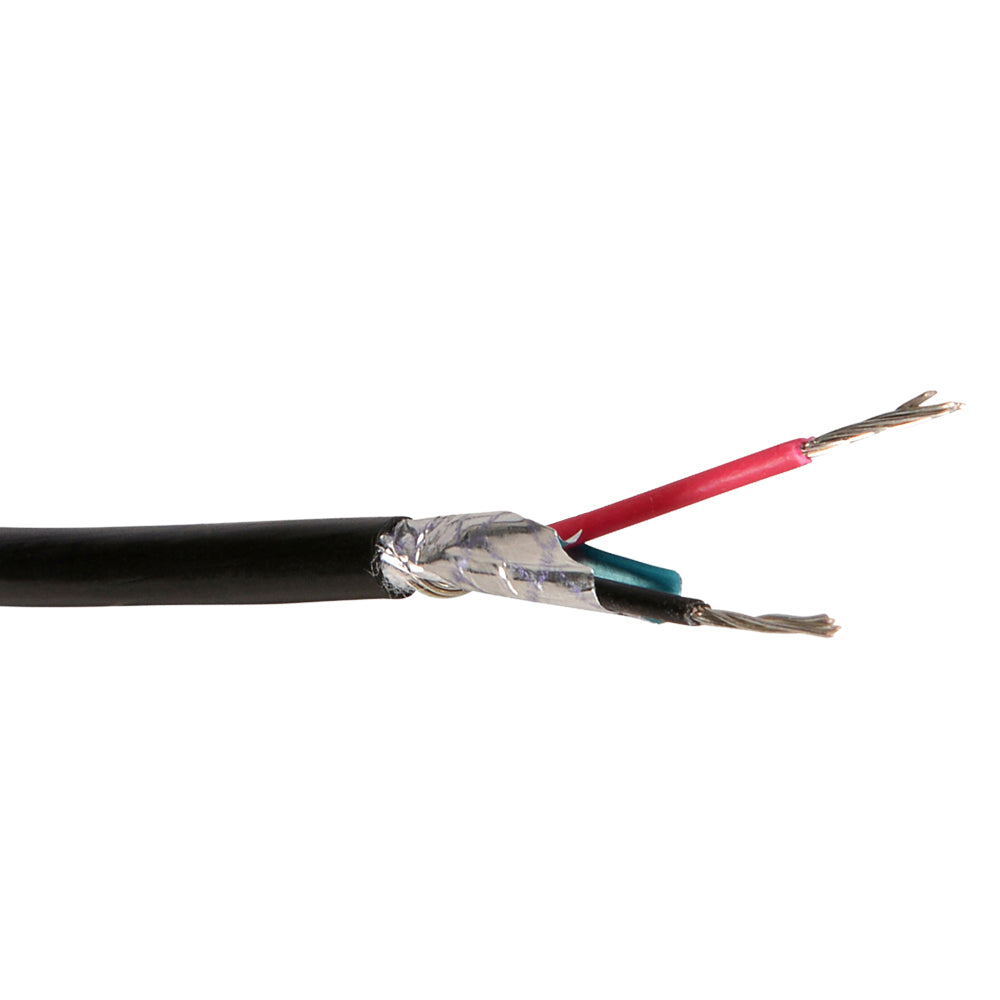

This bulk plenum audio cable consists of 2 conductors of 22AWG stranded wire, is black in color and 1000 feet in length. It is typically used in plenum air spaces to interconnect audio devices.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 4.0 mm |
| Number of Conductors | 2 Conductors |
| Wire Gauge | 22AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 7/0.20mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP/CL3 |
| Cable Shielding | 90% Copper Braid, 100% Mylar Foil |
| Temperature Rating | 80℃ |
| Approvals | |
| c(UL)us | No |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 23.54 lbs |
