This 2 conductor 22AWG stranded control cable ensures reliable performance in automation and control systems. It is the ideal choice for industrial control panels, automation infrastructure, and commercial systems. Packaged in a 1000ft easy-pull box, this cable is engineered for seamless installation, featuring a durable PVC jacket and a built-in ripcord for efficient stripping.
Features
-
Built for Durability: Constructed with 22AWG stranded copper conductors and a robust PVC jacket, ensuring longevity in diverse operating temperatures (-20°C to +75°C).
-
CMR Riser Rated: Designed to meet safety standards for vertical installation in walls and risers, providing compliance and peace of mind for commercial projects.
-

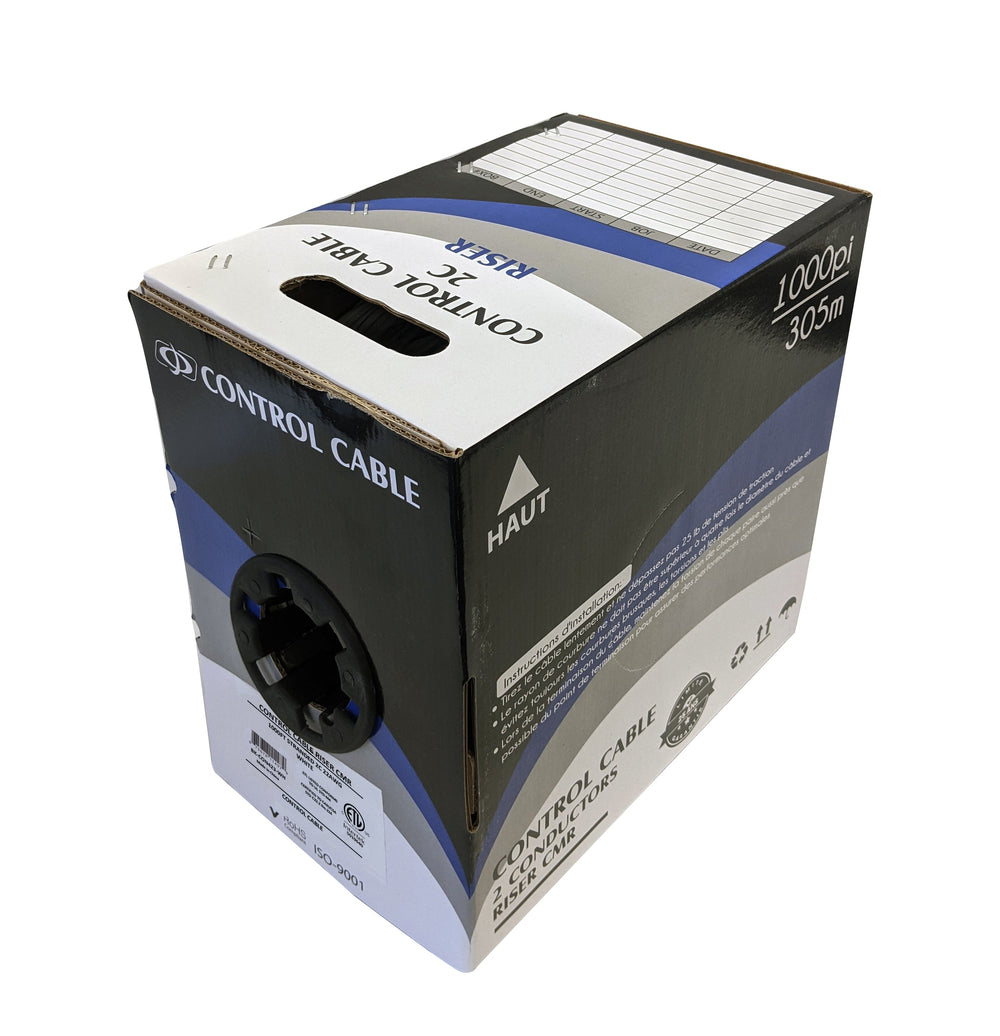

Easy Installation: The 1000ft pull-box design prevents tangles and streamlines deployment, while the integrated ripcord allows for quick and clean jacket removal.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] Pull Box |
| Jacket Color | White |
| Min. Ave. Jacket Thickness | 0.36 mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Nominal Jacket Thickness | 0.45mm |

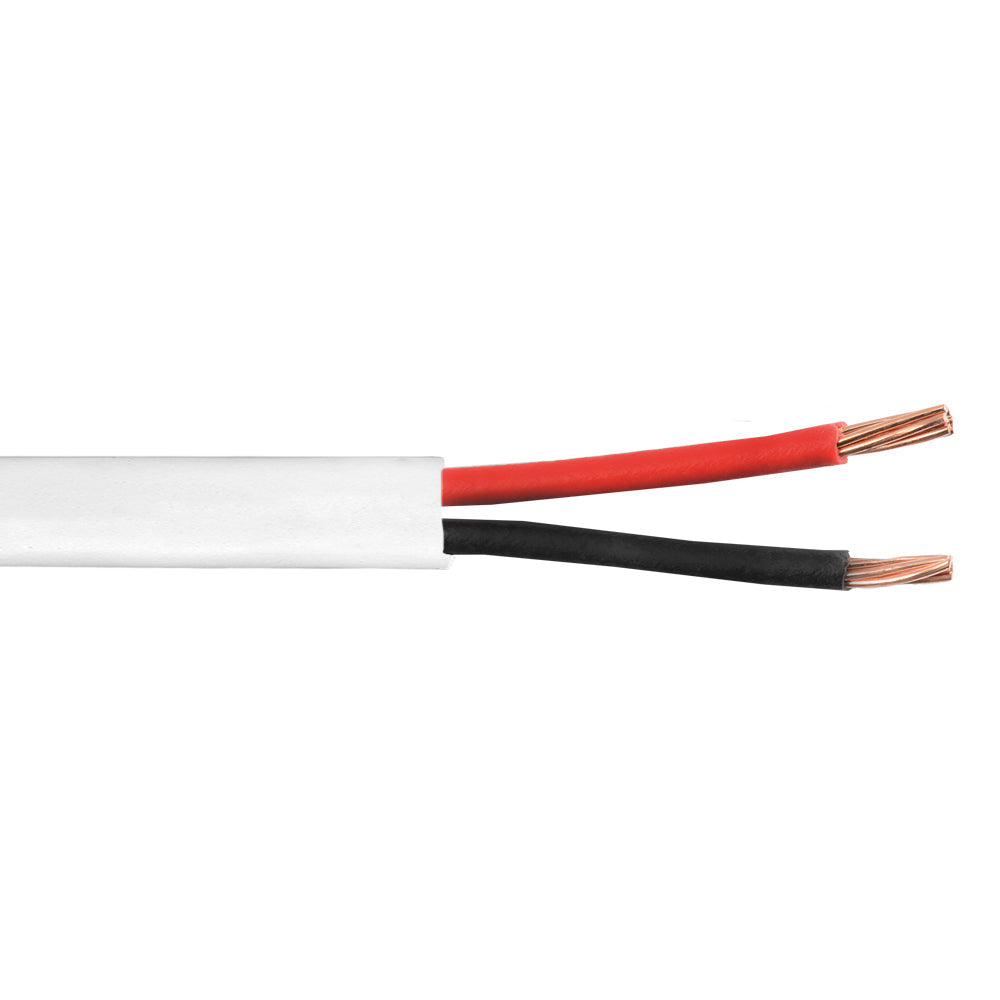

| Number of Conductors | 2 Conductors (Red/Black) |
| Conductors Material | Bare Copper - Oxygen-Free |
| Insulation Material | PVC - Polyvinyl Chloride |
| Nominal Insulation Thickness | 0.4mm |
| Nominal Insulation Diameter | 1.65mm |
| Wire Gauge | 22AWG |
| Maximum Voltage | 300V |
| Stranding | 7*0.25mm |
| Rip Cord | Yes |
| Temperature Rating | -20℃ ~ 75℃ |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (℃xhrs) | 100x168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) | No Crack |
| Approvals | |
| c(ETL)us | Compliant |
| ISO 9001 | Compliant |
| ISO 14001 | Compliant |
| ISO 45001 | Compliant |
| Environmental | |
| RoHS | Compliant |
| REACH | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 22.53 lbs |
