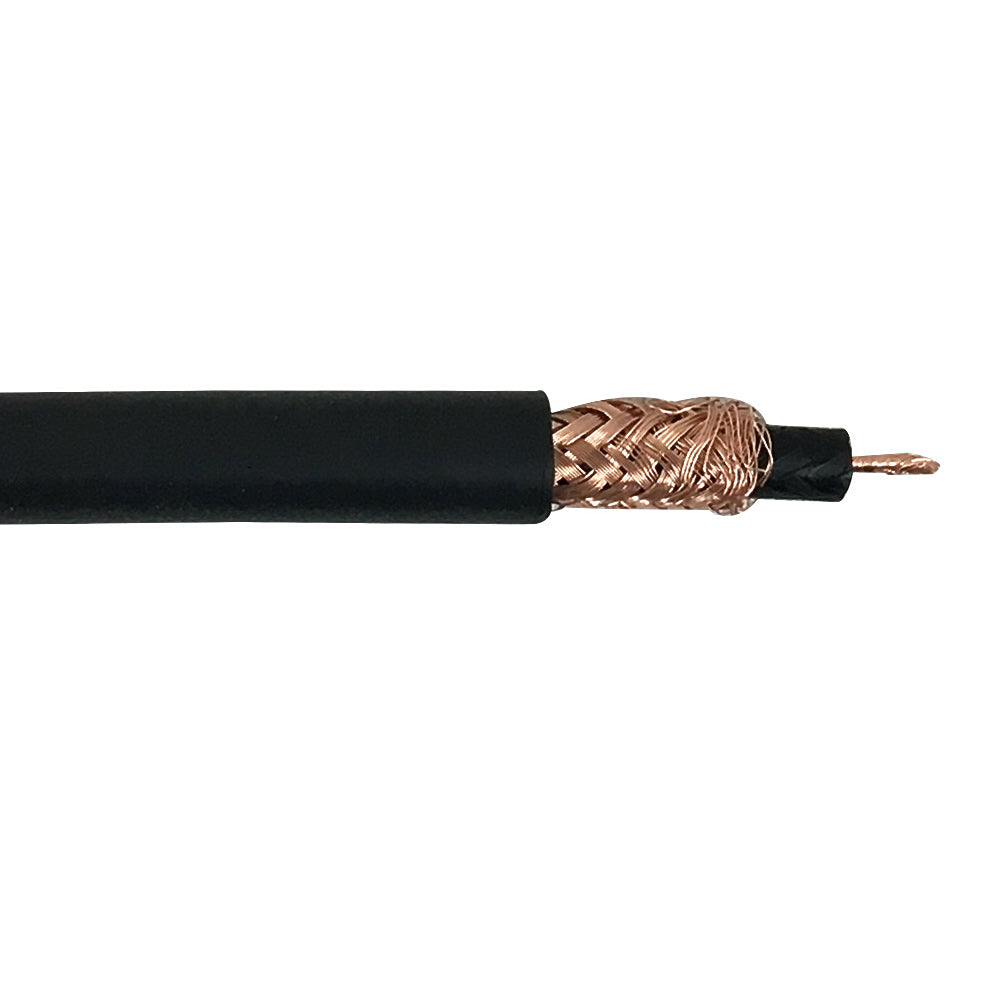

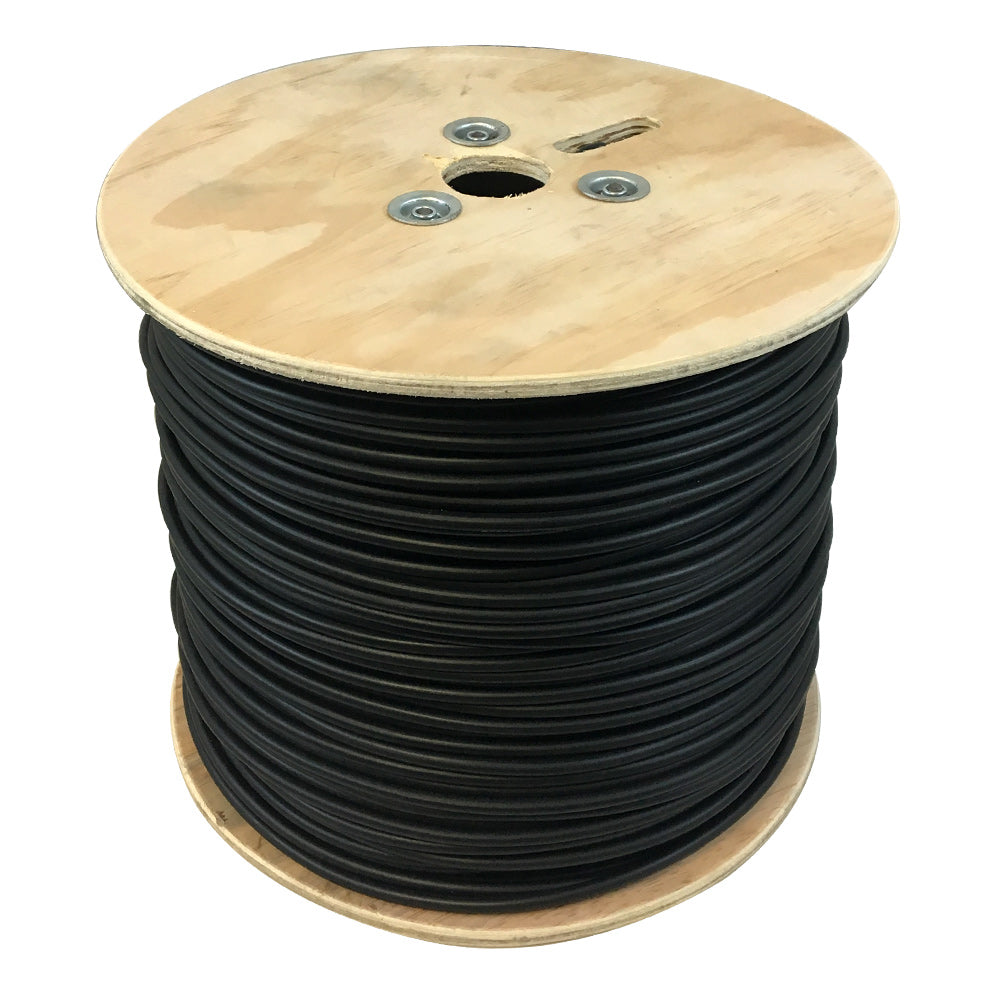

This bulk instrument audio cable consists of 1 conductor of 18AWG stranded wire, is black in color and 1000 feet in length. It is typically used to connect an instrument to an amplifier.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black |
| Cable Diameter | 6.03mm |
| Insulation Diameter | 2.92mm |
| Number of Conductors | 1 Conductor |
| Wire Gauge | 18AWG Stranded |
| Conductor Material | 100% Bare Copper |
| Stranding Count & Diameter | 127/0.08mm |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMR Riser (FT4) |
| Cable Shielding | 95% Copper Braid, 100% Mylar Foil |
| Temperature Rating | 60℃ |
|
Electronic |
|
| AC Voltage with Standing | 2000V/ 1 minute |
| Insulation Resistance@20℃ | Above 5000 mΩ/Km |
| Conductor Resistance@20℃ | Below 30.12 mΩ/Km |
| Approvals | |
| c(UL) | Compliant |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 28.16 lbs |
