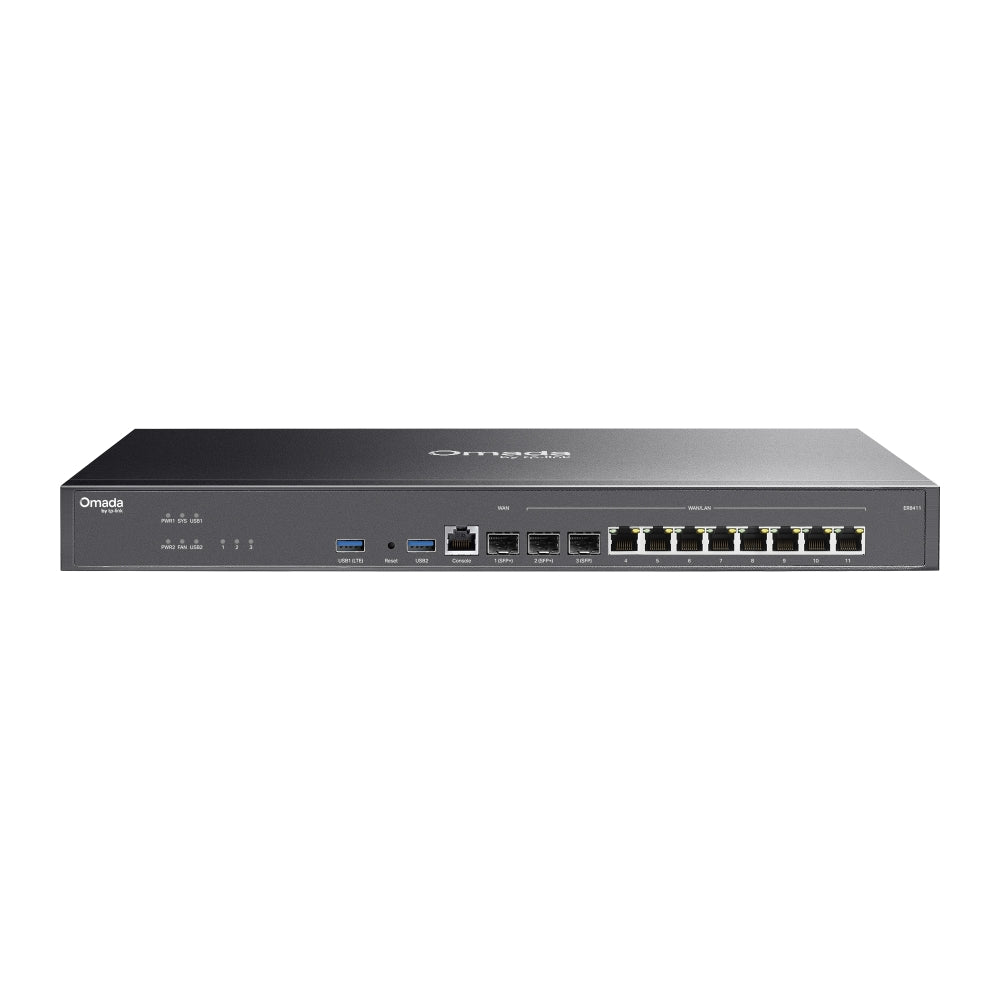

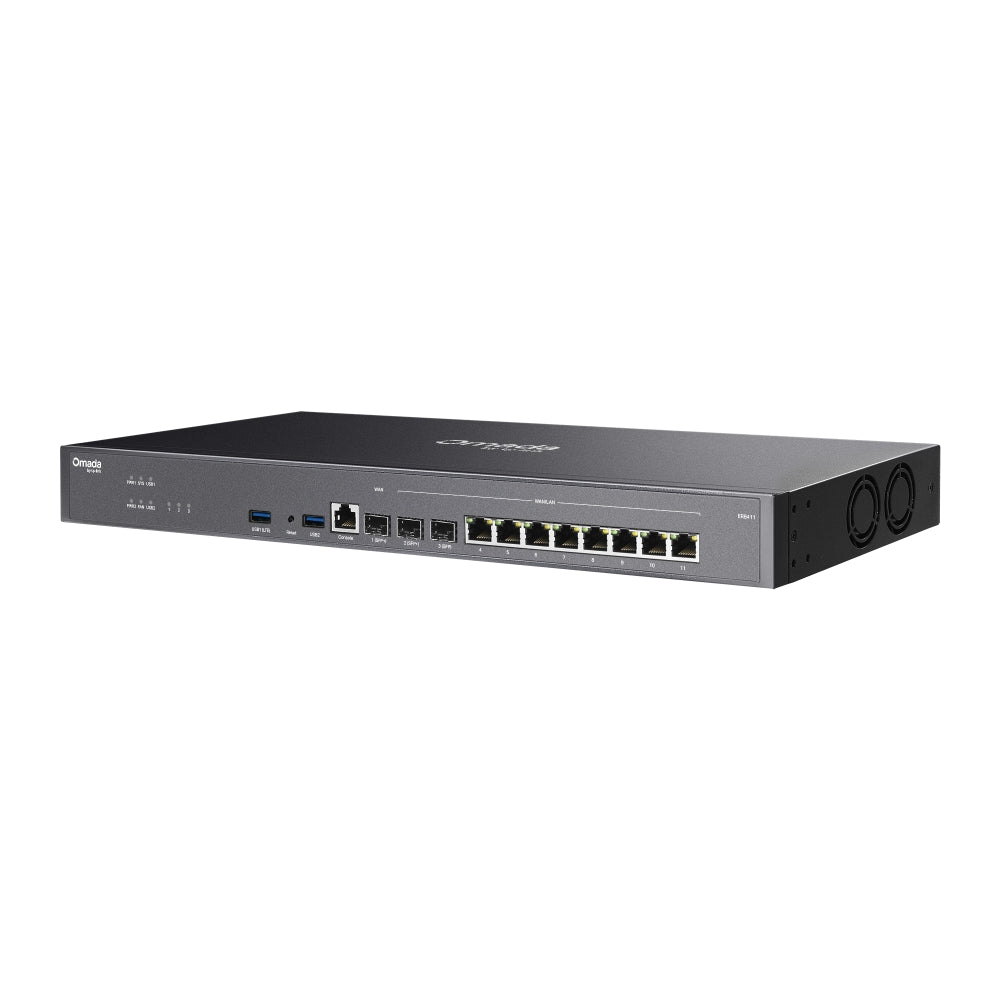

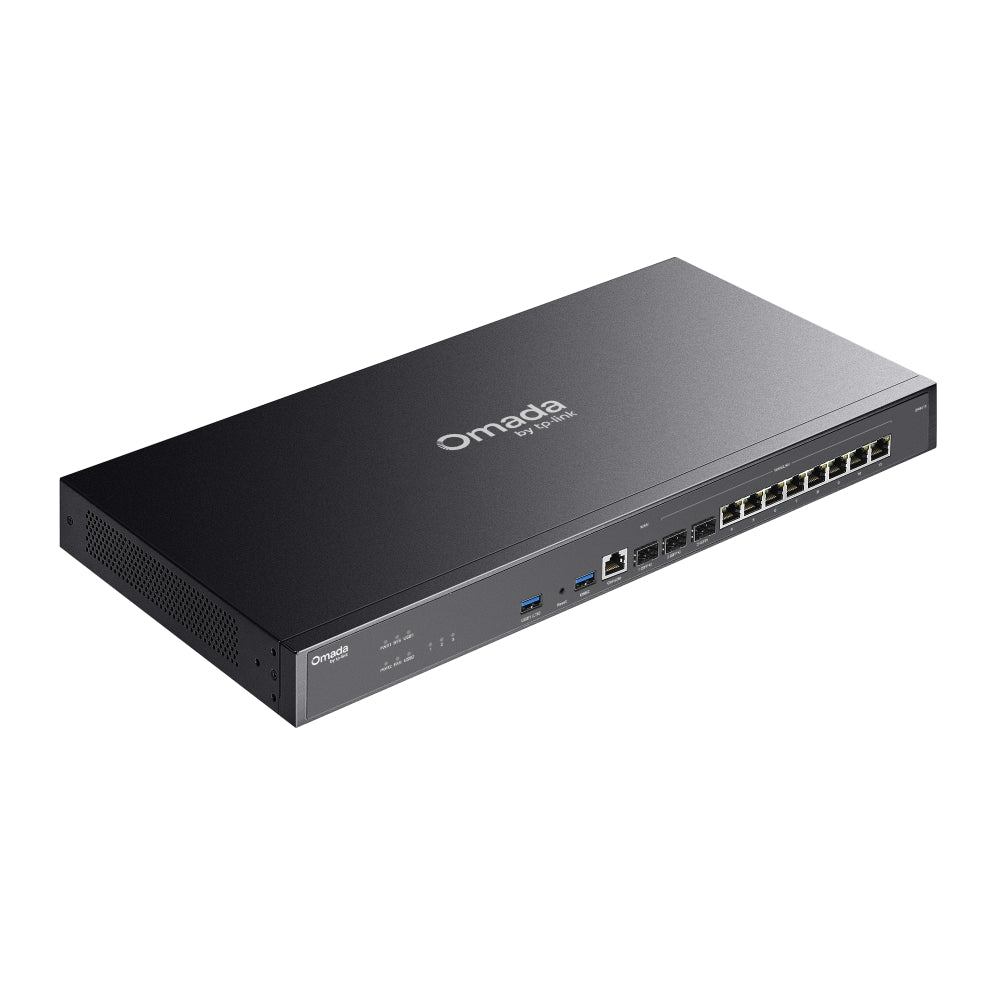

PRODUCT INFORMATION
- 2× 10G SFP+ Slots (1× WAN, 1× WAN/LAN) & 9× Gigabit Ports (1× SFP WAN/LAN, 8× RJ45 WAN/LAN)
- 2× USB 3.0 Ports (One Supports LTE Backup with LTE Dongle), 1× RJ45 Console Port
- Load Balancing on up to 10 WAN Ports
- 1 + 1 Redundant Power Supply
- IPSec/PPTP/L2TP/OpenVPN/GRE/ WireGuard/SSL VPN
- DPI, IPS/IDS, DoS/DDoS Protection, IP/MAC/URL/Content Filtering
- SD-WAN for Multi-Site Connectivity
- Centralized Cloud Management via Omada App or Web
| SECURITY | |
|---|---|
| DPI | • Deep Packet Inspection • Support 2421 type Applications |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Filtering | • WEB Group Filtering△ • URL Categories and URLs Filtering • Web Security△ |
| ARP Inspection | • Sending GARP Packets • ARP Scanning • IP-MAC Binding • ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | LLDP |
| Interface | • 2× 10GE SFP+ Ports (1× WAN, 1× WAN/LAN) • 1× 1GE SFP WAN/LAN Ports • 8× 1GE RJ45 WAN/LAN Ports • 1× RJ45 Console Port • 2× USB 3.0 Ports (One supports LTE backup with LTE dongle) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | 2 |
| Button | Reset Button |
| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rack Mountable |
| Max. Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
| NAT (L2TP) | • Upload: 9064.66 Mbps • Download: 8587.57 Mbps |
| NAT (PPTP) | • Upload: 8712.11 Mbps • Download: 8505.61 Mbps |
| 1,518 Byte Packet forwarding rate | • Upload: 820,982 pps • Download: 820,982 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 3099.4 Mbps • ESP-SHA256-AES256: 2928.4 Mbps • ESP-SHA384-AES256: 2935.7 Mbps • ESP-SHA512-AES256: 2878 Mbps |
| GRE | • Unencrypted: 8437 Mbps • Encrypted: 2775 Mbps |
| WireGuard VPN | 1411 Mbps |
| OpenVPN | 1043 Mbps |
| L2TP VPN Throughput | • Unencrypted: 10497 Mbp • Encrypted: 3178.5 Mbps |
| DPI Throughput | • TCP: 9067 Mbps • UDP: 5873 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 2,109,375 pps • Download: 2,011,719 pps |
| SSL VPN Throughput | 1006 Mbps |
| IPS Throughput | • TCP: 9388 Mbps; • UDP: 7538 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • 6to4 Tunnel • Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address△ |
| DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces • WAN DHCP 60 |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing • Policy Routing • RIP△ • OSPF△ |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing△, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | • SSL VPN Server • 500 SSL VPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)* • 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (32)* • 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (10)* • 110 OpenVPN Tunnels |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password • Hotspot（Local User / Voucher‡ / SMS‡ / Radius‡） • External Radius Sever • External Portal Sever‡ |
| Management Features | |
|---|---|
| Omada App | Yes. Requiring the use of an Omada Controller. |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Central (Cloud-Based) |
| Cloud Access | Yes. Requiring the use of an Omada Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize△ • Port Mirroring • Syslog Support |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)† |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Omada VPN Gateway with 10G Ports ER8411 • Power Cord • Rackmount Kit • RJ45 Console Cord • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
