PRODUCT INFORMATION
- 1× Gigabit SFP WAN/LAN port
- 5× Gigabit RJ45 ports (1× WAN, 4× WAN/LAN)
- 1× USB 3.0 port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 5 WAN ports raises the utilization rate of multi-line broadband
- High-security SSL / IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
- Centralized cloud management via the web or the Omada app
- DoS/DDoS Protection, IP/MAC/Location/URL filtering, DPI, and IPS/IDS for enhanced security.
- Desktop/Wall/Rackmount
| SECURITY | |
|---|---|
| DPI | • Deep Packet Inspection • Support 2421 type Applications |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | • Source/Destination IP Based ACL • Stateful ACL • IPv4/IPv6 ACL • National Based ACL • FQDN |
| DNS Proxy | DNSSEC, DoH, DoT, and DNS Override |
| Filtering | • Web Group Filtering§ • URL Categoroies and URLs Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets • ARP Scanning§ • IP-MAC Binding • ARP Detection |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP |

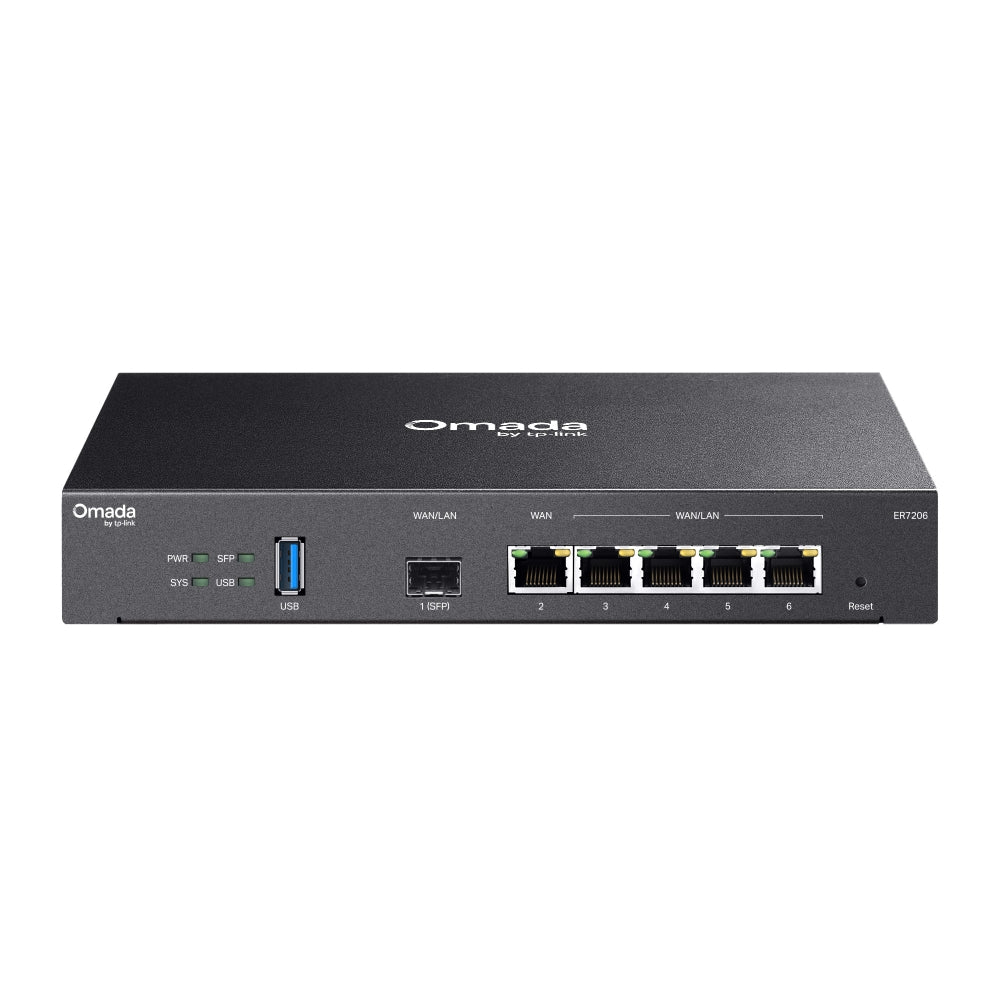

| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |

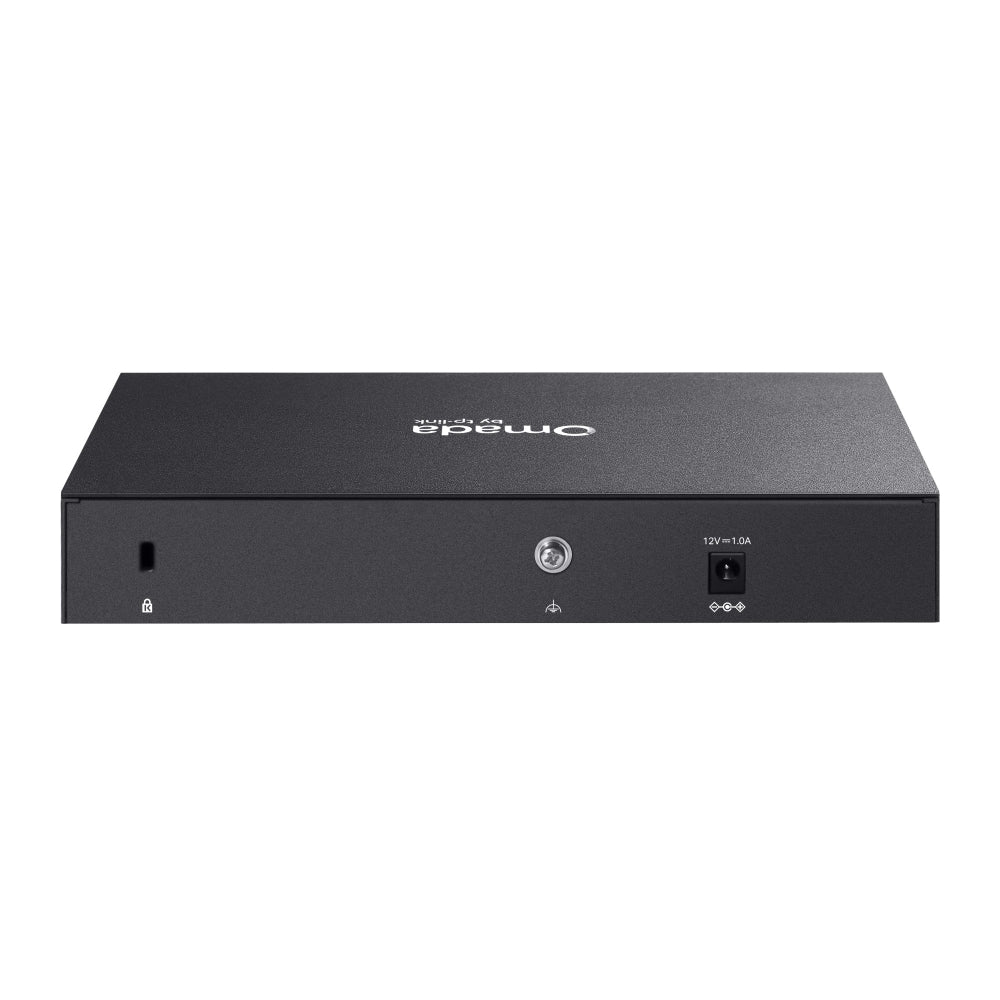

| Power Supply | 12V/1A DC Power Adapter |
| PoE Budget | - |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |

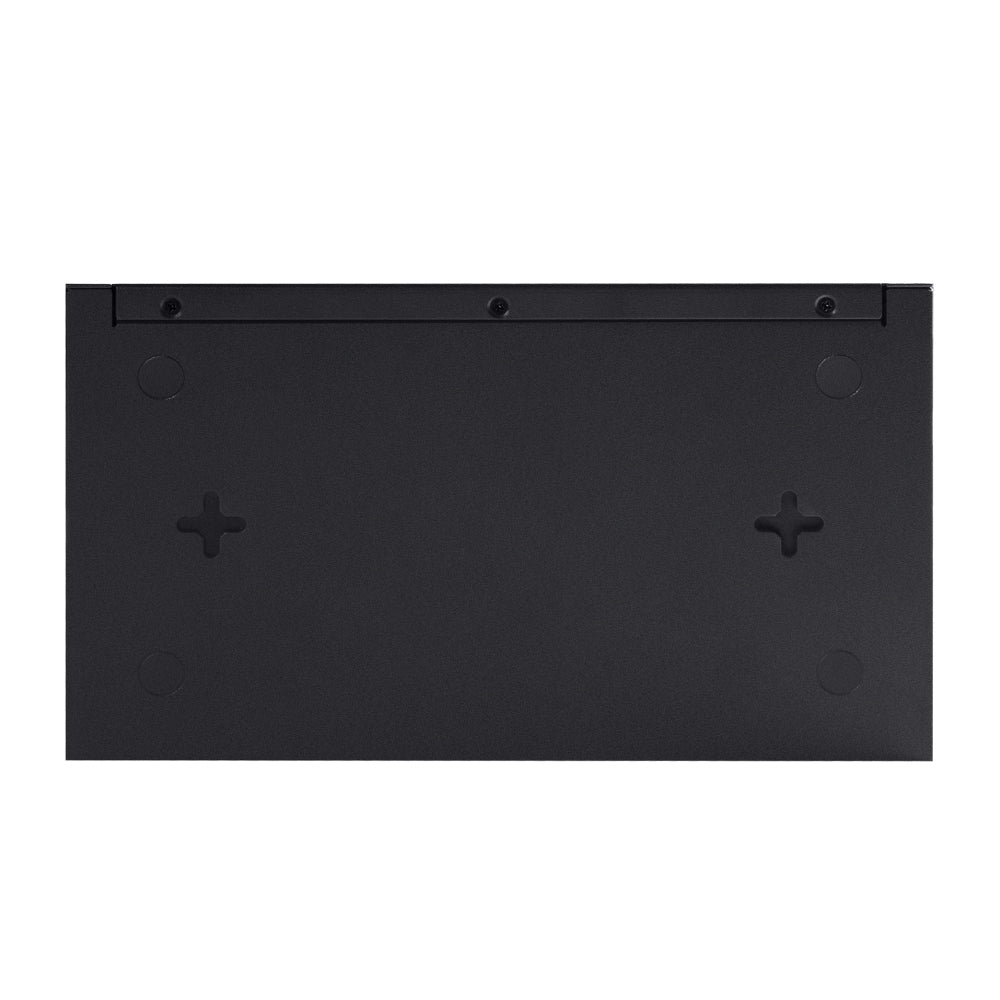

| Mounting | Desktop/Wall/Rackmount |
| Max. Power Consumption | 7.5 W (with USB 3.0 connected) 4.5 W (without USB 3.0 connected) |
| PERFORMANCE | |
|---|---|
| Concurrent Session | 150,000 |
| New Sessions /Second | 4,600 |
| NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 908.6 Mbps / 918.4 Mbps |
| NAT (PPTP) | 906.2 Mbps / 915.9 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 885.3Mbps • ESP-SHA256-AES256: 844.8 Mbps • ESP-SHA384-AES256: 868.5 Mbps • ESP-SHA512-AES256: 849.5 Mbps |
| GRE | Unencrypted: 1094.2 Mbps Encrypted: 702.2 Mbps |
| WireGuard VPN | 341.3 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | Unencrypted: 1422.4 Mbps Encrypted: 686.2 Mbps |
| PPTP VPN Throughput | Unencrypted: 1356.1 Mbps Encrypted: 205.1 Mbps |
| DPI Throughput | TCP: 933 Mbps UDP: 927 Mbps |
| SSL VPN Throughput | 131.6 Mbps |
| IPS Throughput | TCP: 918 Mbps UDP: 920 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| LAN DNS | √ |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP • WAN DHCP 60 |
| Stateful ACL | √ |
| Quality of Service | √ |
| Bridge VLAN | √ |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| Advanced Features | |
|---|---|
| Advanced Routing | • Static Routing • Policy Routing • RIP§ • OSPF§ |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP • Disable NAT |
| Session Limit | IP-based Session Limit |
| VPN | |
|---|---|
| GRE | √ (Only in Standalone Mode) |
| SD-WAN | √ (Only in Controller Mode) |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)※ • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)※ • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)※ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| WireGuard VPN | √ |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password • Hotspot (Local User /Voucher‡/ SMS‡/Radius‡) • External Radius Sever • External Portal Sever‡ • LDAP§ |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Central (Cloud-Based), or Omada Software Controller. |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Central (Cloud-Based), or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | √ |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • ER7206 • Power Adapter • Quick Installation Guide • Rackmount Kit |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
