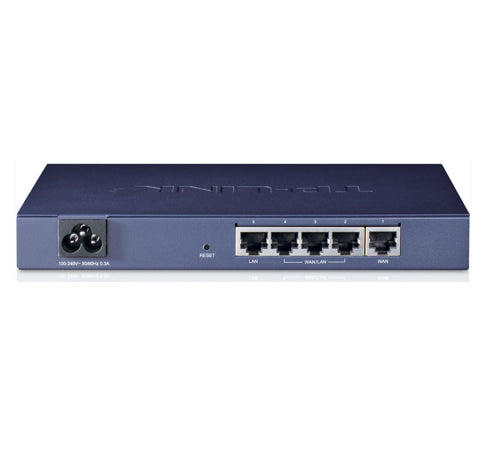

Load Balance Broadband Router

$71.99

Hurry up! Sales Ends In

Hurry! Only 5 Left in Stock!

Real time 23 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

ID: TL-R470T+

Features

  • Dynamic IP, Static IP, PPPoE, L2TP, PPTP, Dual Access and BigPond Cable Internet connection options easily connect to Internet
  • Built-in DHCP server supports static IP address distribution
  • Time-based access control allows parents or administrators to establish restricted access policies for children or staff
  • IP-based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC which guarantees the performance of VoIP or video applications
  • PPPoE server and E-Bulletin help administrators better manage the client accounts
  • Built-in firewall supports IP address filtering, MAC address filtering, URL filtering and WEB Contents(Java, ActiveX, Cookies) Filtering
  • IP and MAC binding function effectively prevents ARP virus attacks
  • Powerful DoS attack protection safeguards your network
  • Virtual Server, Special Application, DMZ host and UPnP help users build their own servers
  • DDNS helps users utilize remote management easily with a domain name
  • Note: Above information apply to TL-R470T+ version 2.0 ONLY.

Specification

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
Interface 1 Fixed Ethernet WAN Port
1 Fixed Ethernet LAN Port
3 Changeable Ethernet WAN/LAN Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m)
Flash 4MB
DRAM 64MB
LED PWR, SYS, WAN, LAN, WAN/LAN
Button Reset Button
Dimensions (W X D X H) 8.2*5.0*1.0in. (209*126*26mm)
Power Supply Internal Universal Power Supply
AC100-240V~50/60Hz input
PERFORMANCE
Concurrent Session 10000
BASIC FUNCTIONS
DHCP DHCP Server/Client, DHCP Address Reservation
MAC Clone Modify WAN/LAN MAC Address
Switch Setting Port Mirror, Rate Control, Port Configuration, Port VLAN
WAN Connection Type Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
ADVANCED FUNCTIONS
ACL IP/MAC/URL/WEB Filtering
Forwarding Virtual Server, Port Triggering, DMZ
Load Balance Policy Routing, Link Backup
Routing Static Routing
Security FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding
Traffic Control Bandwidth Control, Session Limit
MANAGEMENT
Maintenance Time Setting, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics
Service PPPoE Server, E-Bulletin, Dynamic DNS, UPnP
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-R470T+
Power Cord
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
