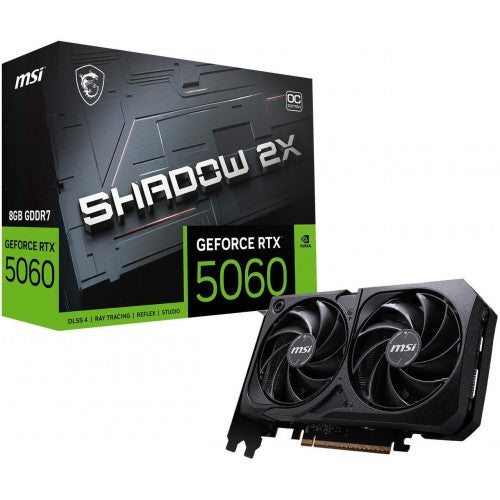

MSI GeForce RTX 5060 8G SHADOW (dual fan) PCIe 5.0 x16 Overclocked Graphics Card
Model
Brand |
MSI |
Series |
SHADOW |
Model |
RTX 5060 8G SHADOW 2X OC |
Part Number |
RTX 5060 8G SHADOW 2X OC |
Interface
Interface |
PCI Express 5.0 x 16 (use x8) |
Chipset
Chipset Manufacturer |
NVIDIA |
GPU Series |
NVIDIA GeForce RTX 50 Series |
GPU |
GeForce RTX 5060 |
Boost Clock |
2527 MHz |
CUDA Cores |
3840 Cores |
Memory
Effective Memory Clock |
28 Gbps |
Memory Size |
8GB |
Memory Interface |
128-Bit |
Memory Type |
GDDR7 |
3D API
DirectX |
DirectX 12 Ultimate |
OpenGL |
OpenGL 4.6 |
Ports
Multi-Monitor Support |
4 |
HDMI |
1 x HDMI 2.1b |
DisplayPort |
3 x DisplayPort 2.1b |
Details
Max Resolution |
7680 x 4320 |
SLI Support |
No |
Cooler |
Double Fans |
Thermal Design Power |
145W |
Recommended PSU Wattage |
550W |
Power Connector |
8-Pin |
HDCP Ready |
Yes |
Form Factor & Dimensions
Max GPU Length |
197 mm |
Card Dimensions (L x H) |
197 x 120 x 40mm |
