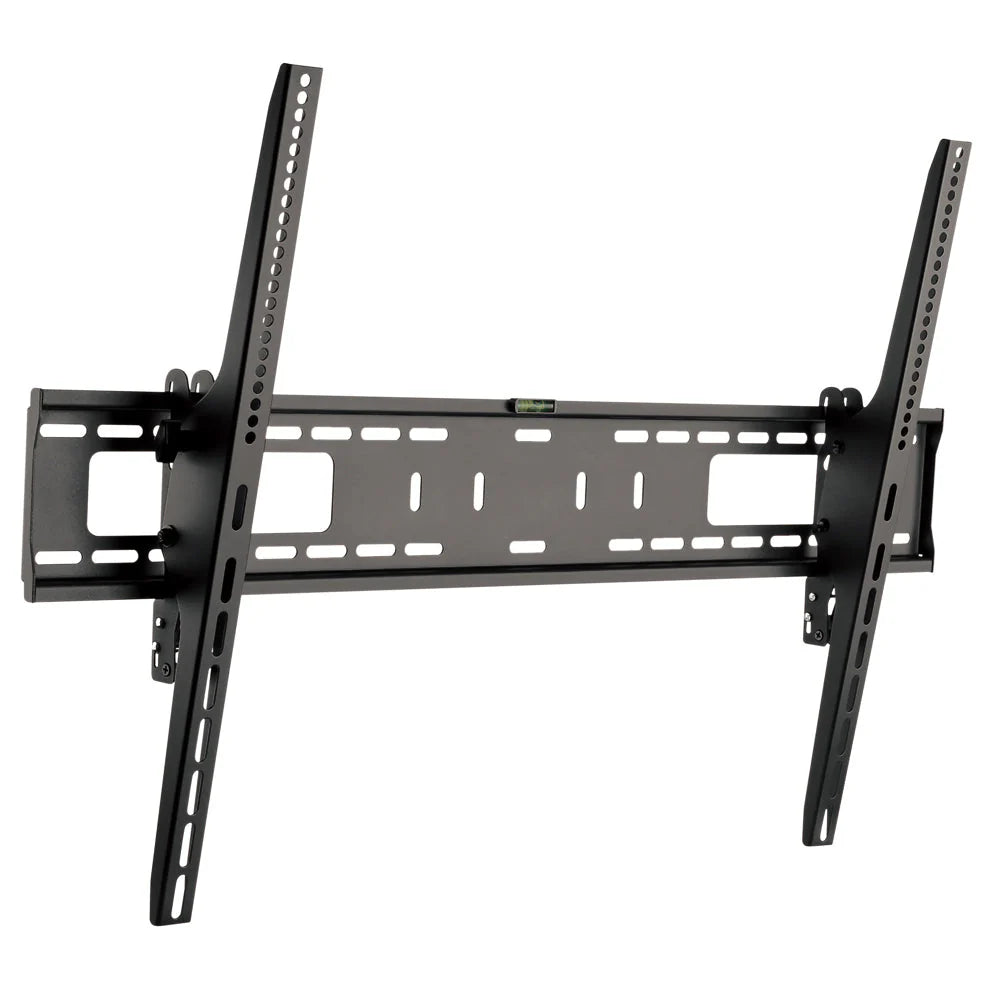

Tilting Mount TV Wall Mount Bracket for Flat and Curved LCD/LEDs - Fits Sizes 60-100 inches - Maximum VESA 900x600
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
This LCD/LED tilting wall mount bracket is designed to hold most 60 inch to 100 inch LCD/LED displays with a maximum VESA hole pattern of 900x600. It offers up to a +5° to -10° tilt. Its easy to install and can be used in both residential and commercial environments.
| Physical Characteristics | |
|---|---|
| Mounting Style | Tilting Wall Mount |
| Color | Black |
| Material | Steel, Plastic |
| Mounting Pattern | VESA 200x200,300x200,300x300,400x200,400x300,400x400,600x400,600x600,800x600,900x600 |
| Screen Size | 60 - 100 inches [152.4 - 254cm] |
| Weight Capacity | 165lbs [75kg] |
| Tilt | +5° to -10° |
| Profile | 85 mm |
| Bubble Level | Yes |
| Installation | Solid Wall or Double Stud |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 6 - ST6.3x55 Screws 6 - Concrete Anchors 6 - D6 Washers |
| Product Weight | 10.4 lbs [4.7kg] |
