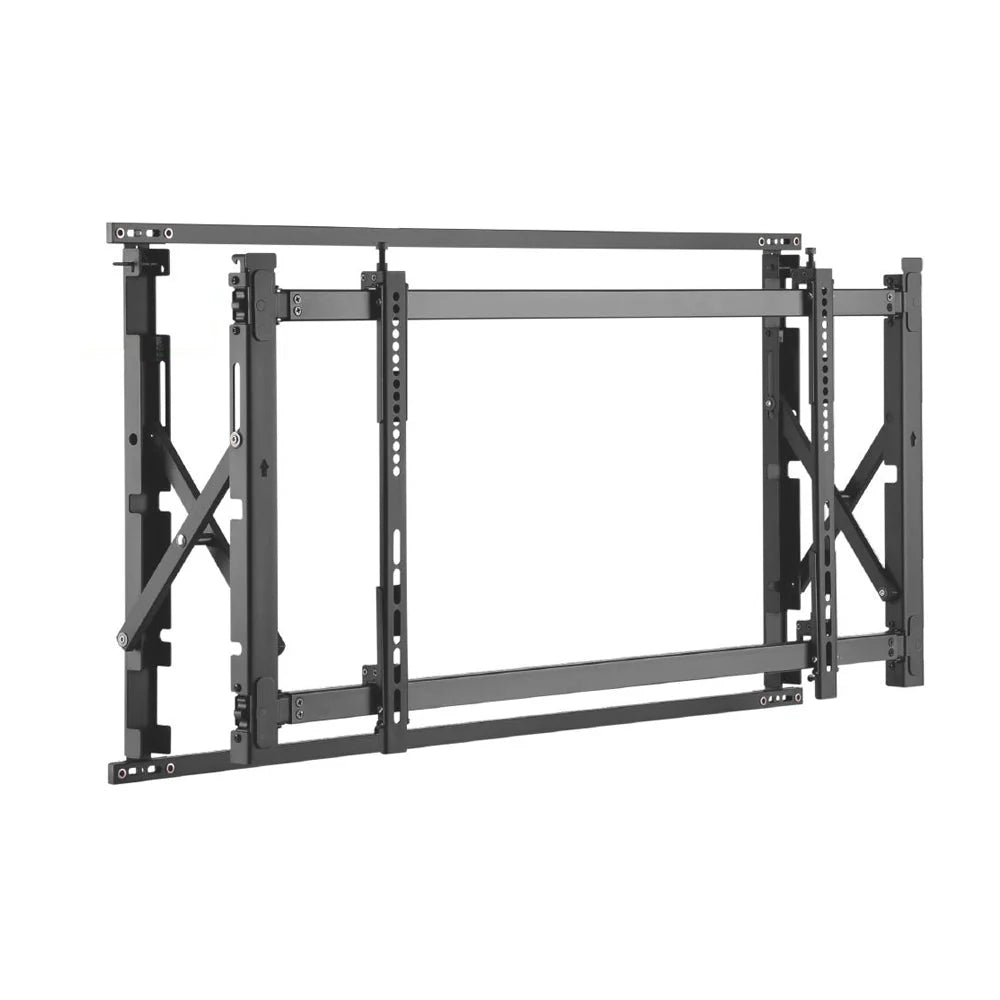

Super Slim Video Wall TV Mount Bracket, Portrait or Landscape - Fits Sizes 46-52 inches - Maximum VESA 600x400
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Overview
This super slim video wall mount bracket is designed to hold most 46 inch to 52 inch flat screen displays with a maximum VESA hole pattern of 600x400. It allows portrait or landscape screen orientation and can be used on a single TV or in conjunction with additional mounts to create a video wall.
Mountable in any Orientation
This video wall TV mount bracket can be used in either portrait or landscape orientation.
Slim Design
This portrait TV mount bracket provides a low profile and is very slim in design in comparison to other brackets.
Precision Alignment
Due to the multi-dimensional micro adjustments that can be made to the bracket, it allows for an ideal display alignment for a pleasurable viewing experience.
Specifications
| Physical Characteristics | |
|---|---|
| Mounting Style | Micro Adjustment |
| Color | Durable Powder-Coated Black Finish |
| Material | Metal |
| Mounting Pattern | VESA 200x200, 300X200, 300X300, 400x200, 400X300, 400x400, 600x400 |
| Screen Size | 46 - 52 inches [116 - 157cm] |
| Weight Capacity | 77lbs [35kg] |
| Profile | 49 - 223mm |
| Installation | Solid Wall |
| Micro Adjustments |
Depth 5mm / Height 12mm |
| Direction Indicator | Yes |
| Approvals | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Mounting Hardware | 4 - M5x14 Screws 4 - M6x14 Screws 4 - M6x30 Screws 4 - M8x30 Screws 4 - M8x50 Screws 4 - Rectangular Washers 8 - Small Spacers 8 - Big Spacers 4 - ST6.3x55 Screws 4 - Concrete Anchors 4 - D6 Washers |
| Package Weight | 25.3 lbs [11.5 kg] |
| Product Weight | 20.5 lbs [9.3 kg] |
| Warranty Information | |
| Warranty |
Limited Lifetime |
