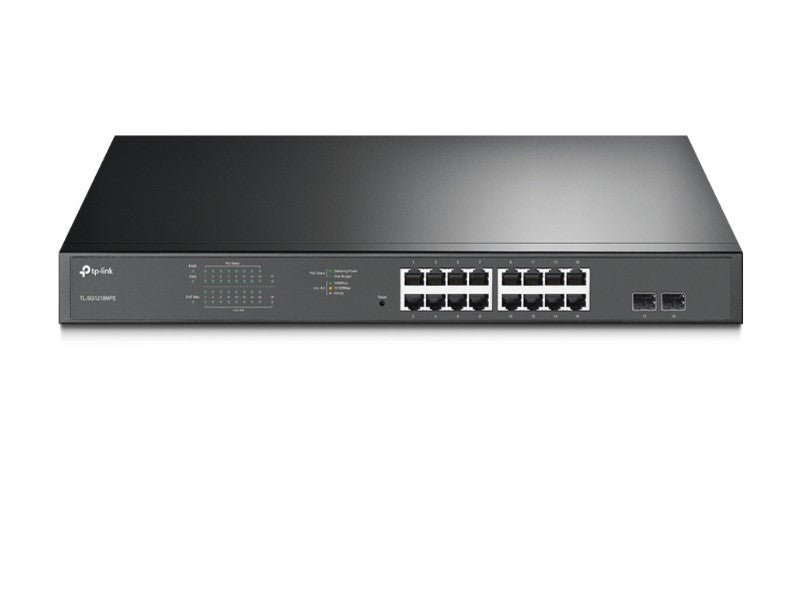

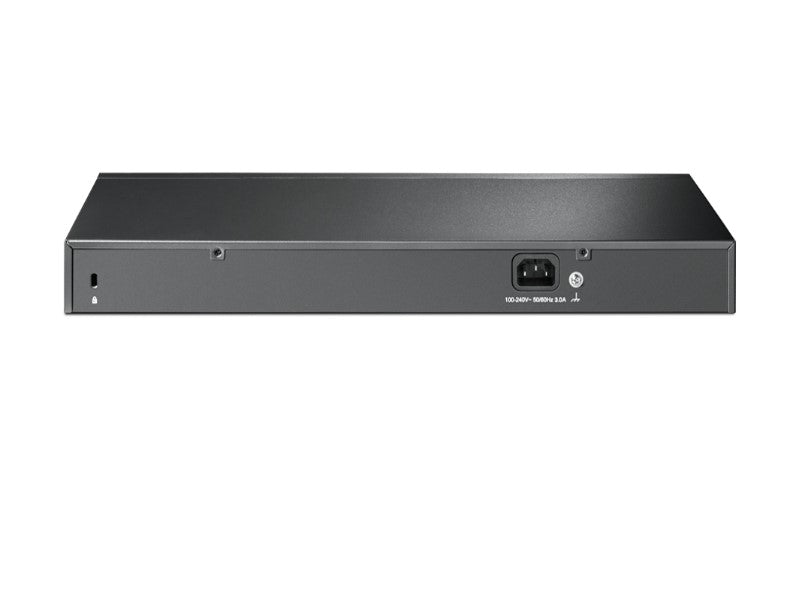

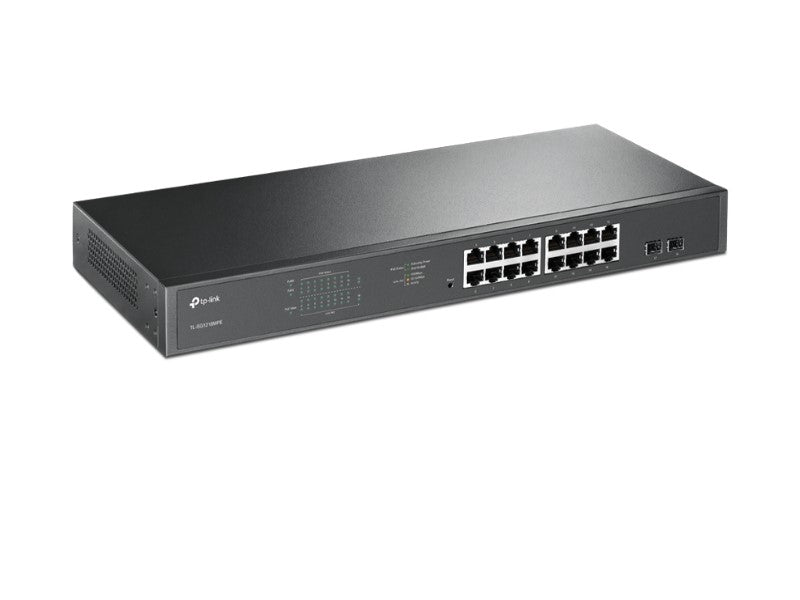

JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch

$304.60

Hurry up! Sales Ends In

Hurry! Only 3 Left in Stock!

Real time 20 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

JetStream 16-Port Gigabit Easy Smart PoE/PoE+ Switch


Features

  • ·        16 10/100/1000Mbps RJ45 POE+ Ports Switch
  • ·         PoE power budget is up to 192W, making it ideal for small to medium-business surveillance systems
  • ·         Port Priority is able to  guarantee the quality of sensitive applications like a video monitor
  • ·         Intelligent power management can protect the switch from overload
  • ·         QoS is for a smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV

Specification



HARDWARE FEATURES
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
16 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Ports
Network Media
10BASE-T: UTP category 3, 4, 5 cables (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity
2 Fans
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60 Hz
PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting
Rack Mountable
Max Power Consumption
18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation
63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
PERFORMANCE
Switching Capacity
36 Gbps
Packet Forwarding Rate
23.8 Mbps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS

Certification
CE, FCC, RoHS
Package Contents
TL-SG1218MPE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
Environment
Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Warranty
Limited lifetime
