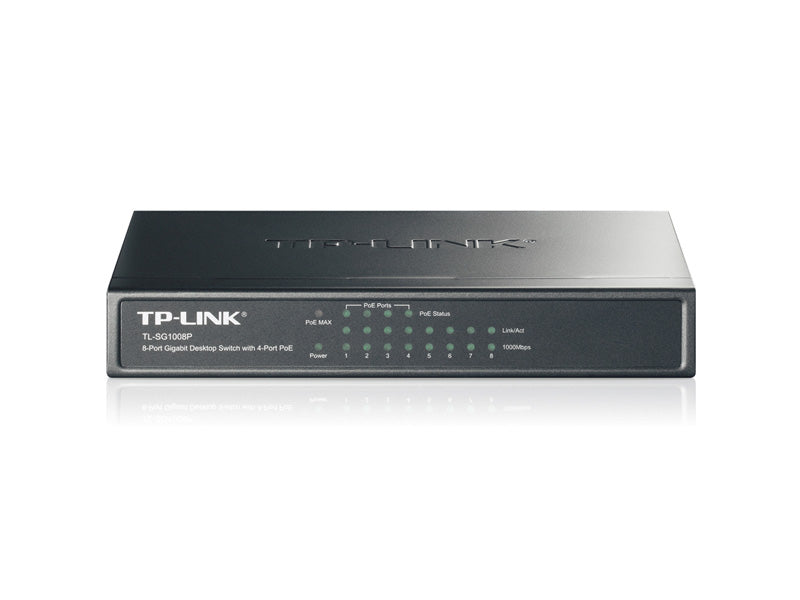

8-Port Gigabit Desktop Switch with 4-Port PoE

$85.20

Hurry up! Sales Ends In

Hurry! Only 3 Left in Stock!

Real time 18 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION
  • 8 10/100/1000Mbps RJ45 ports

  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation



Features

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 53W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 8K entry MAC address table of the TL-SG1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity and speed
  • External power adapter supply



Specification

HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 53W
Backbound Bandwidth 16Gbps
Mac Address Table 8K
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Dimensions (W X D X H) 6.7*3.9*1.1 in. (171*98*27 mm)
Fan Quantity Fanless
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1008P, Power Adapter, User Guide
Consumption 5.8 watts (max. no PD connected)
58.8 watts (max. with 53w PD connected)
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
8-Port Gigabit Desktop Switch with 4-Port PoE

8-Port Gigabit Desktop Switch with 4-Port PoE

$85.20
