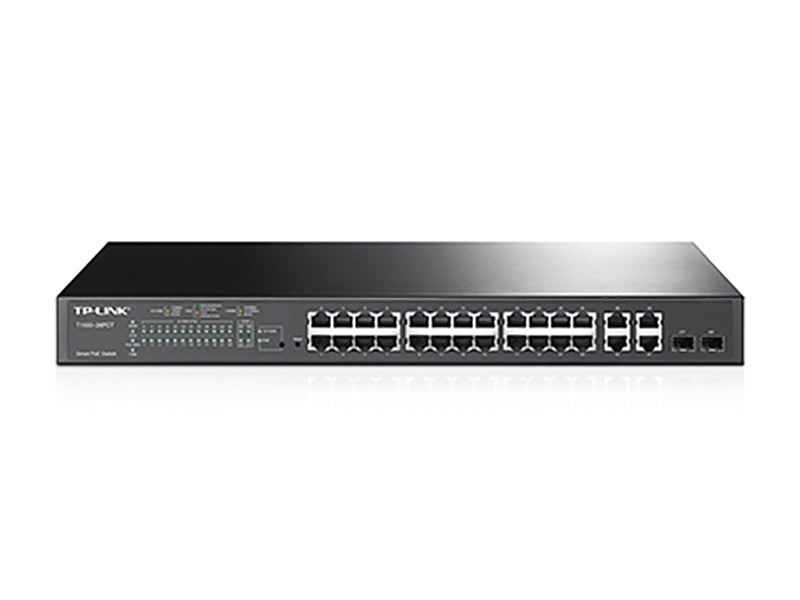

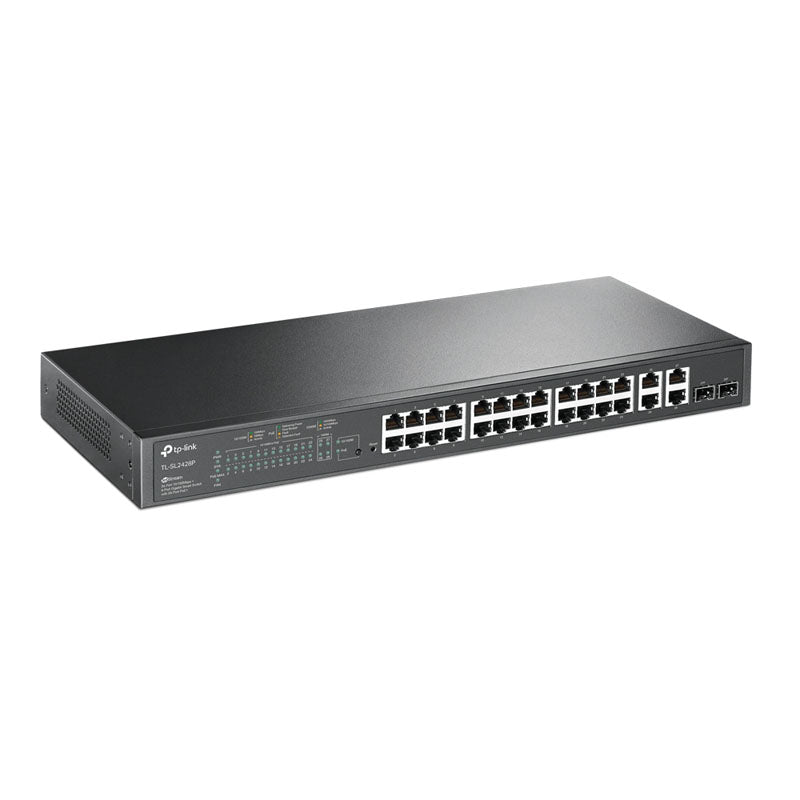

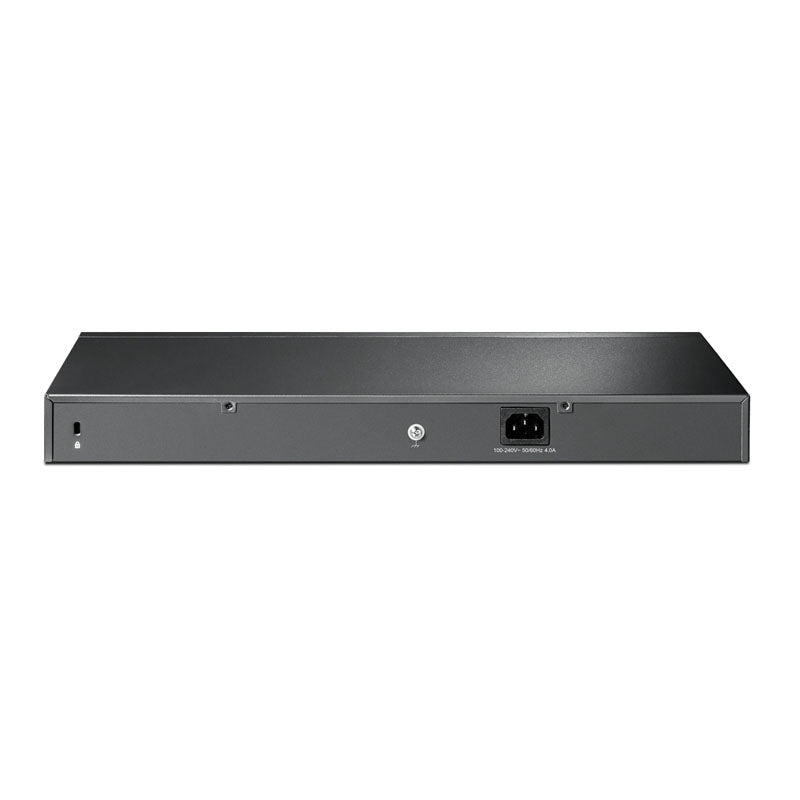

24-Port 10/100Mbps 4-Port Gigabit Smart PoE Switch (replace TL-T1500-28PCT)

$355.34

Hurry up! Sales Ends In

Hurry! Only 3 Left in Stock!

Real time 16 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION
  • Supports 24 802.3at/af-compliant PoE+ ports with a total power supply of 180W
  • Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • WEB/CLI managed modes, SNMP, RMON bring abundant management features



Features



 PoE+ Features

  • Standard: 802.3at/af compliant
  • PoE+ Ports: 24 Ports
  • PoE Power Budget: 180W

Layer 2 Features
  • Link Aggregation Control Protocol (LACP)
  • 802.1Q Tag VLAN
  • STP/RSTP/MSTP
  • IGMP Snooping
  • LLDP, LLDP-MED

Quality of Service
  • IEEE 802.1P
  • DSCP QoS
  • Rate limit feature

Security Strategies
  • Access Control List(L2~L4)
  • Port Security
  • Storm Control
  • SSL and SSH encryptions


Management
  • Web-based GUI
  • Command Line Interface(Telnet)
  • SNMP v1/v2c/v3
  • RMON (1,2,3,9 group)



Specification



HARDWARE FEATURES
Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q,IEEE 802.1p

Interface

24 10/100Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Combo Gigabit SFP Slots

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity

2

Power Supply

100~240VAC, 50/60Hz

Power Consumption

Maximum(PoE on): 222.15W (220V/50Hz)

PoE+ Ports(RJ45)

Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 180W

Dimensions

W x D x H: 17.3*8.7*1.7 in.(440*220*44 mm)

Performance
Bandwidth/Backplane

12.8Gbps

Packet Forwarding Rate

9.5Mpps

MAC Address Table

8 K

Jumbo Frame

9216 Bytes

SOFTWARE FEATURES
Quality of Service

Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN

L2 Features

IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group)
Spanning Tree STP/RSTP/MSTP
LLDP, LLDP-MED
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control

VLAN

Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)

Access Control List

L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports

Security

SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control

Management

Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS

Warranty

Longtech: 1 year
Manufacturer: 1~5 year Limited Warranty
