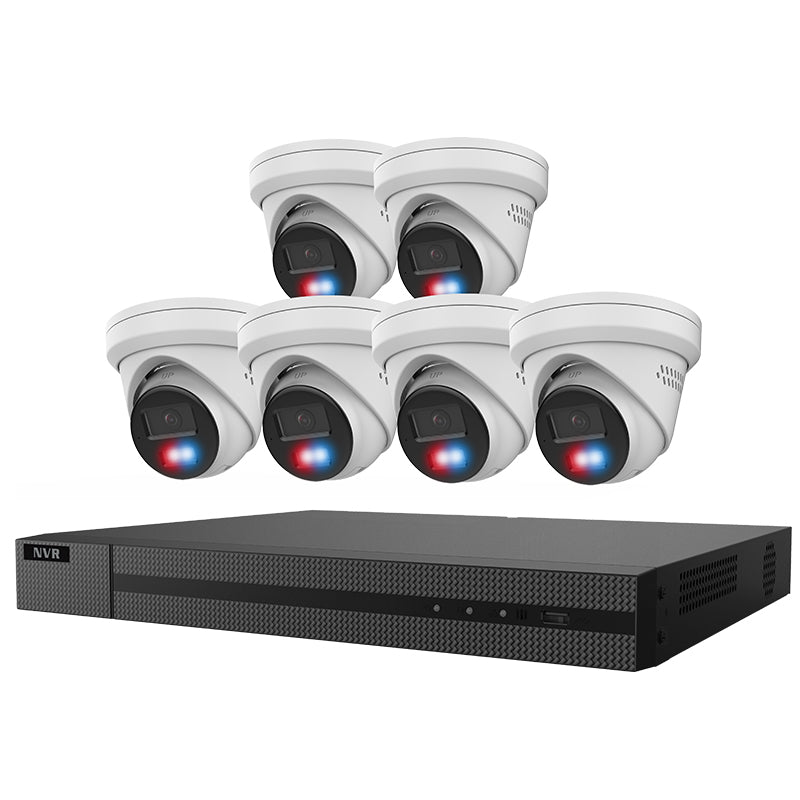

HiLook by Hikvision IK-6288TH-MH/PL 8 Channel 4K NVR with 2TB HDD and 6pcs Active Deterrence 8MP Red and blue strobe light with Siren Turret Camera Kit
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
- One pack contains everything required for small monitoring scenarios
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Six 4K Fixed Turret network cameras with efficient H.265 compression technology
-One 4K HiLook 8-Channel NVR
- Red and blue strobe light with Siren
- 2-Way Audio
- 2 TB pre-installed HDD
| Model | IK-6288TH-MH/PL | ||||
| Camera | |||||
| Camera Case Type | Turret | ||||
| Image Sensor | 1/2.7" Progressive Scan CMOS | ||||
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR | ||||
| Shutter Speed | 1/3 s to 1/100,000 s | ||||
| Day ＆ Night | IR cut filter | ||||
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360° | ||||
| Protection Level | IP67 | ||||
| Material | Camera body: metal, bottom base : plastic | ||||
| Wi-Fi Support | No | ||||
|
Lens |
|||||
| Focal Length | 2.8 mm | ||||
| Aperture | F2.0 | ||||
| Focus | horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° | ||||
| Lens Mount | M12 | ||||
| IR Range | Up to 30 m | ||||
|
Video |
|||||
| Video Compression |
|
||||
| H.264 Type | Baseline Profile, Main Profile, High Profile | ||||
| H.264+ | No | ||||
| H.265 Type | Main Profile | ||||
| H.265+ | No | ||||
| Video Bit Rate | 32 Kbps to 16 Mbps | ||||
| Max. Resolution | 3840 × 2160 | ||||
| Main Stream |
|
||||
| Sub-stream |
|
||||
| Image Setting | H.264 Type | ||||
| Day/Night Switch | Day, Night, Auto, Schedule | ||||
|
Network |
|||||
| Alarm Trigger | Motion detection, video tampering alarm, illegal login | ||||
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP | ||||
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email | ||||
| Client | iVMS-4200, HiLookVision | ||||
|
Interface |
|||||
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port | ||||
| On-board Storage | N/A | ||||
| Video Out | No | ||||
| Reset Button | No | ||||
|
General |
|||||
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial plug power, or PoE (802.3af, class 3) | ||||
| Consumption | 12 VDC, 0.3 A, Max: 3.5 W, or PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W | ||||
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) | ||||
| Working Humidity | 95% or less (non-condensing) | ||||
| Dimension (W × D × H) | Ø 110 mm × 93.2 mm (4.3" × 3.7") | ||||
| Weight | Approx. 360 g (0.8 lb) | ||||
|
NVR |
|||||
| Video and Audio | |||||
| IP Video Input | 8-ch | ||||
| Incoming/Outgoing Bandwidth | 80 Mbps/80 Mbps | ||||
| HDMI Output | 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output | ||||
| VGA Output | 1-ch, 1920 × 1080p/60Hz,1600 × 1200/60Hz, 1280 ×1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ; HDMI/VGA simultaneous output | ||||
| Video Output Mode | HDMI/VGA simultaneous output | ||||
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | ||||
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) | ||||
|
Decoding |
|||||
| Decoding Format | H.265+,H.265,H.264+,H.264 | ||||
| Video Resolution | 8MP /6MP/ 5MP/ 4MP /3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | ||||
| Synchronous Playback | 8-ch | ||||
| Capability | 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) | ||||
|
Network |
|||||
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface | ||||
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS | ||||
| Remote Connection | 32 | ||||
|
PoE |
|||||
| Interface | 8-ch | ||||
| Power | ≤ 80 W | ||||
| Standard | IEEE 802.3 af/at | ||||
|
Auxiliary interface |
|||||
| SATA | 2 SATA interface | ||||
| Capacity | Up to 8 TB capacity for each disk | ||||
| USB Interface | 2 × USB 2.0 | ||||
| Alarm In/Out | No | ||||
|
General |
|||||
| Power Supply | 48 VDC, 2.5 A | ||||
| Consumption (without HDD and PoE off) | ≤ 15 W (without HDD and PoE off) | ||||
| Working Temperature | -10 to +55° C (14 to 131° F) | ||||
| Working Humidity | 10% to 90% | ||||
| Dimension (W × D × H) | 385 × 315 × 52 mm (15.2"× 12.4" × 2.0") | ||||
| Weight (without hard disk) | ≤ 1 kg (without HDD, 2.2 lb.) | ||||
| Kit | |||||
| Weight (with package) | ≤ 7.5 kg (16.5 lb) | ||||
