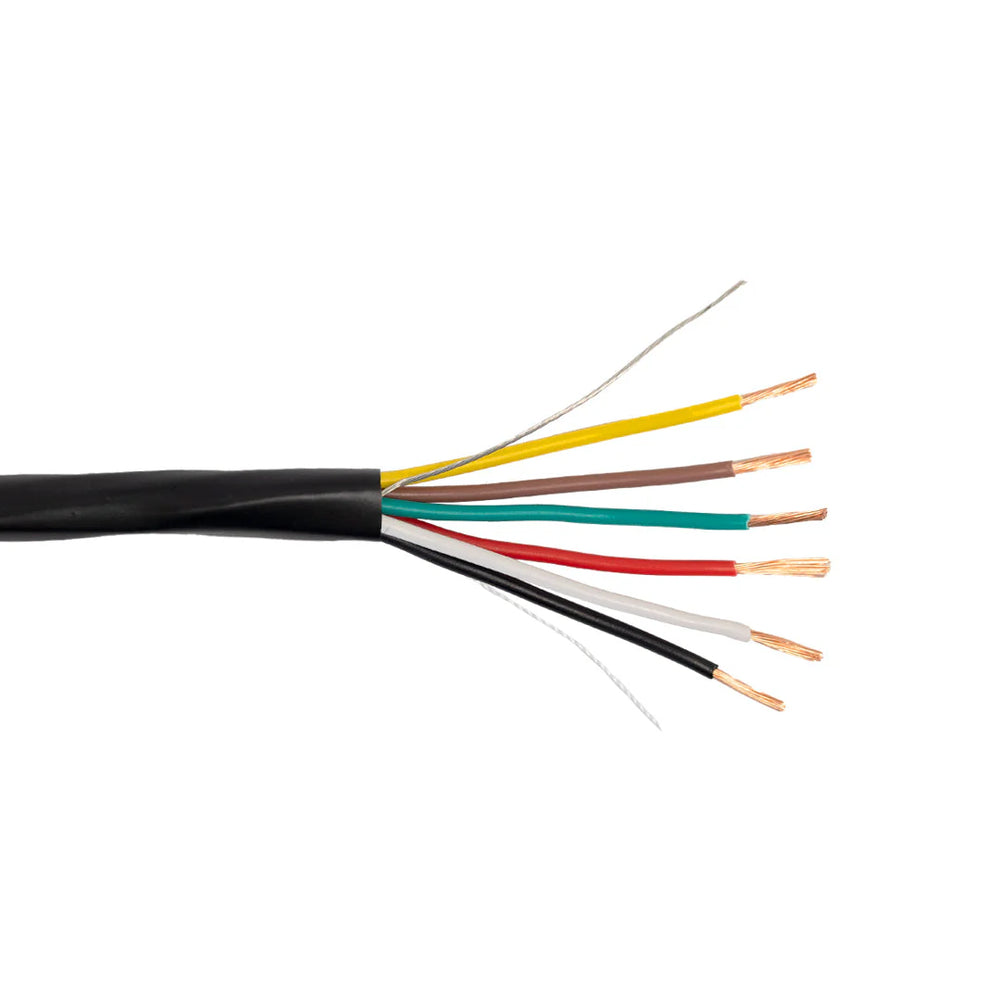

This 6 conductor 18AWG stranded control cable is black in color and 1000 feet in length. It is typically used in control panel and automation control applications.
| Physical Characteristics | |
|---|---|

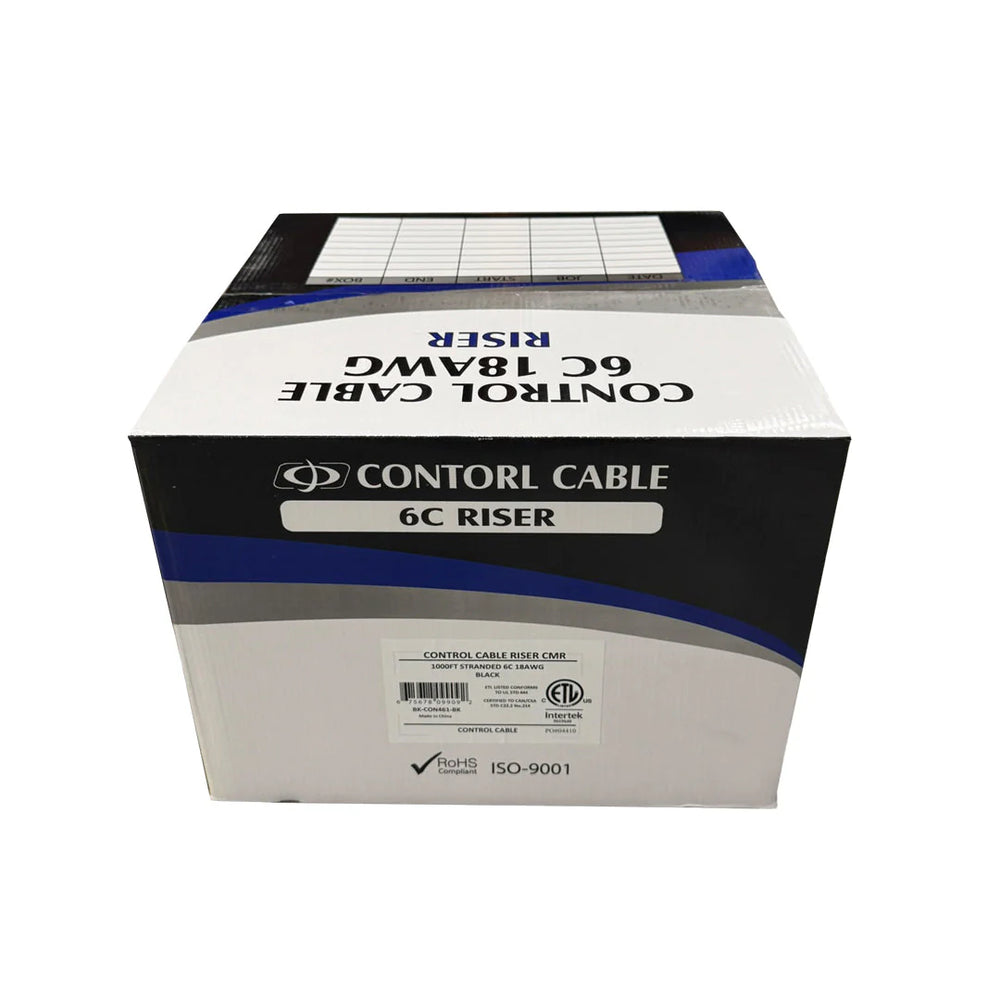

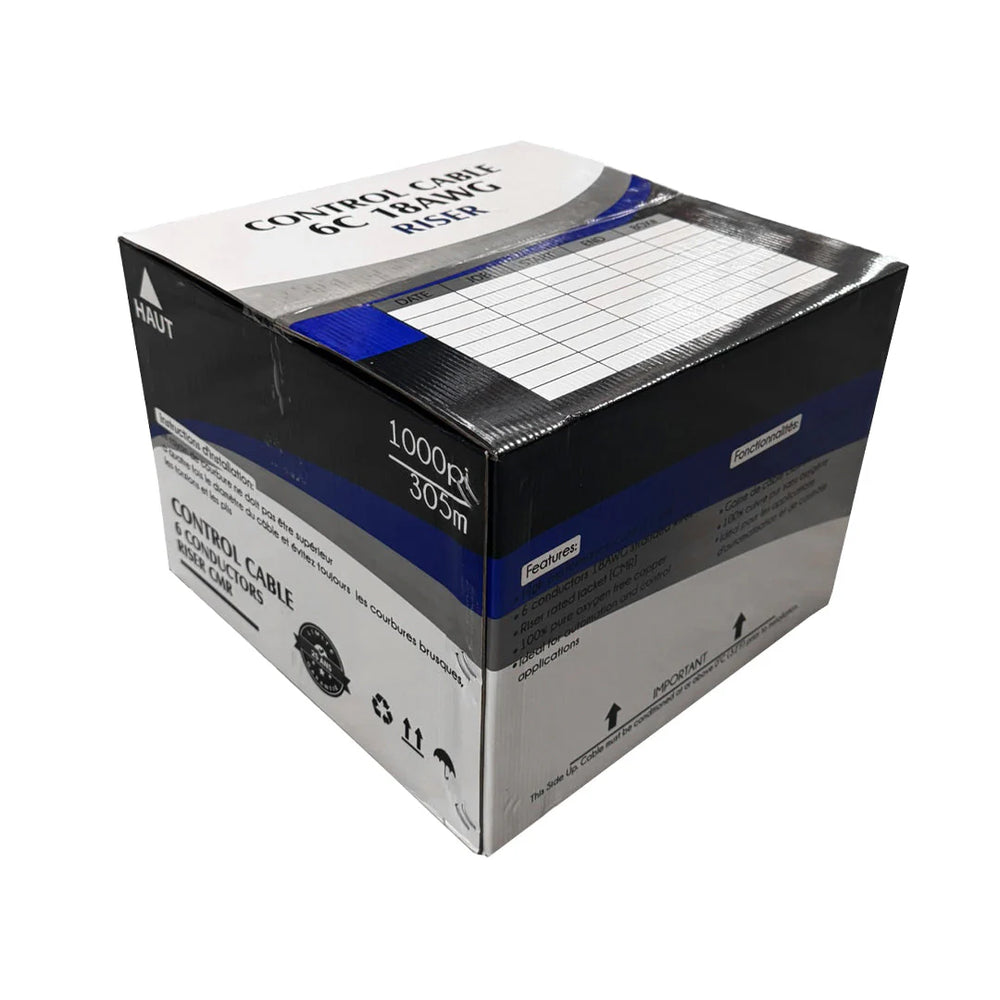

| Cable Lengths Available | 1000 foot [305m] Pull Box |
| Color (Jacket) | Black |
| Number of Conductors | 6 Conductors (Black/Red/Green/White/Brown/Yellow) Oxygen Free Copper (OFC) |
| Jacket Material | PVC |
| Jacket Diameter | 6.4mm |
| Jacket Thickness | 0.45mm |
| Wire Gauge | 18 AWG |
| Material (conductors) | Oxygen Free Bare Copper |
| Insulation Material |
PVC |
| Nominal Insulation Thickness | 0.38mm |
| Nominal Insulation Diameter | 1.9mm |
| Drain Wire | Yes |
| Ripcord | Yes |
| Temperature Rating | -20℃ ~ 75℃ |
| Operating Voltage | 300V |
| Flammability Test | CMR (Riser Rated) |
| Mechanical Characteristics | |
| Before Tensile Strength | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (℃xhrs) | 100x168 |
| After Tensile Strength (Mpa) | >=85% of unaged |
| Aging Elongation (%) | >=50% of unaged |
| Cold Bend (-20±2º Cx4hrs) |
No Crack |
| Certifications | |
| RoHS | Compliant |
| c(ETL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 Pull Box |
| Product Weight | 57 lbs |
