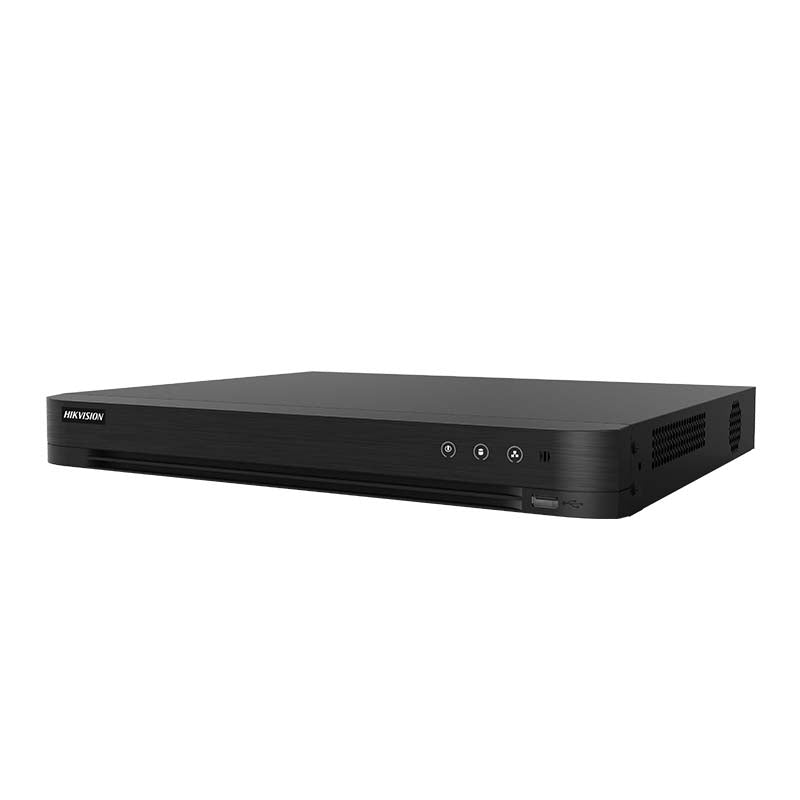

Hikvision IDS-7208HUHI-M2/S 8ch 8MP 1U H.265 AcuSense DVR

-8 channels and 2 HDDs 1U AcuSense DVR

-False alarm reduction by human and vehicle target classification based on deep learning

-Efficient H.265 pro+ compression technology

-Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps

-5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

-Up to 16 network cameras can be connected.

Perimeter Protection Human/Vehicle Analysis Up to 4-ch Facial Detection Facial Detection and Capture Face picture detection, face picture search Motion Detection 2.0 Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio IP Video Input

4-ch (up to 12-ch)

Up to 8 MP resolution

Enhanced IP mode on:

8-ch (up to 16-ch), each up to 4 Mbps

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection HDMI Output

HDMI:

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

VGA:

1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output

CVBS Input PAL/NTSC CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous playback 8-ch HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps Audio Output 1-ch, RCA (Linear, 1 KΩ) Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate

Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate 32 Kbps to 10 Mbps Dual-stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps Network Total Bandwidth 128Mbps Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection 64 Network Interface

1,RJ45 10M/100M/1000M self-adaptive

Ethernet interface

Auxiliary Interface SATA 2 SATA interface Capacity Up to 10 TB capacity for each disk Serial Interface RS-485 (half-
