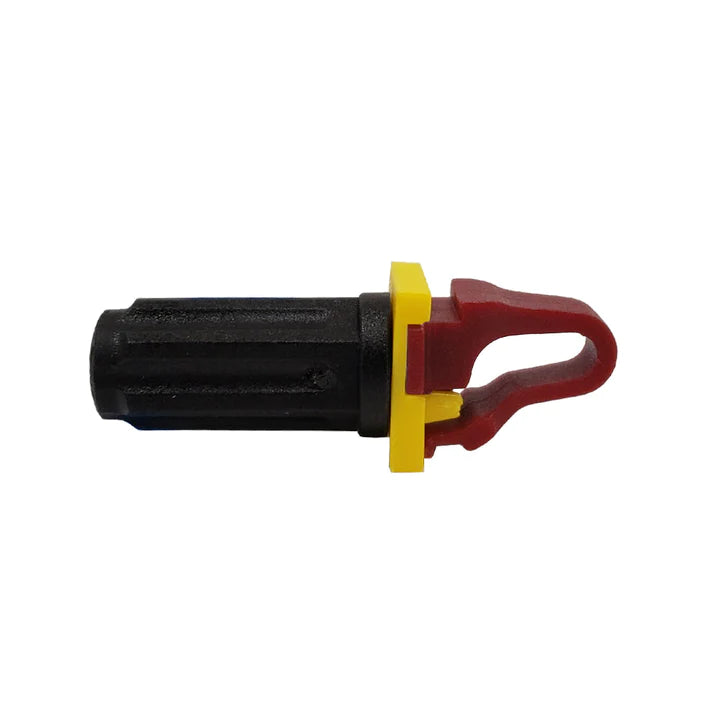

This Rackstud is designed to fit 14AWG square hole server rails. The stud is installed from the front of the rail which simplifies the installation in tight spaces. Once the stud and lock washer is installed, equipment can be easily be hung while you secure it in place with the nut.
Features:
- Redesigned nut with screwdriver slot
- Longer threads makes hanging gear easier
- Improved leverage strength up >30%
- Now even easier to insert
| Physical Characteristics | |
|---|---|
| Color | Maroon Stud, Yellow Lock Washer, Black Nut |
| Stud Material | Grivory |
| Washer Material | PP |
| Nut Material | Glass Filled Nylon |
| Vertical Rail Hole | 9.2 to 9.89mm (0.362" to 0.389") |
| Vertical Rail Thickness | ? 2.2mm/0.086" (or 14 Gauge) |
| Maximum Equipment Weight | 20kg (44lbs) |
| Push-In Force | 46kgs/101lbs |
| Pull-Out Force | 92kgs/202lbs |
| Shear Strength | 156kg/343lbs |
| Rack Compatibility | |
| Manufacturer | APC B & R Enclosures Compaq Dynamix Eaton Hallam Hoffman Minkels Modem Pak Over IP NetArc Panduit R4PCN Rack Technologies IQ rack Rittal StarTech (DuraRak) |
| Approvals | |
| SGS Labs | Yes |
| RoHS |
Yes |
| Reach |
Yes |
| Packaging Information | |

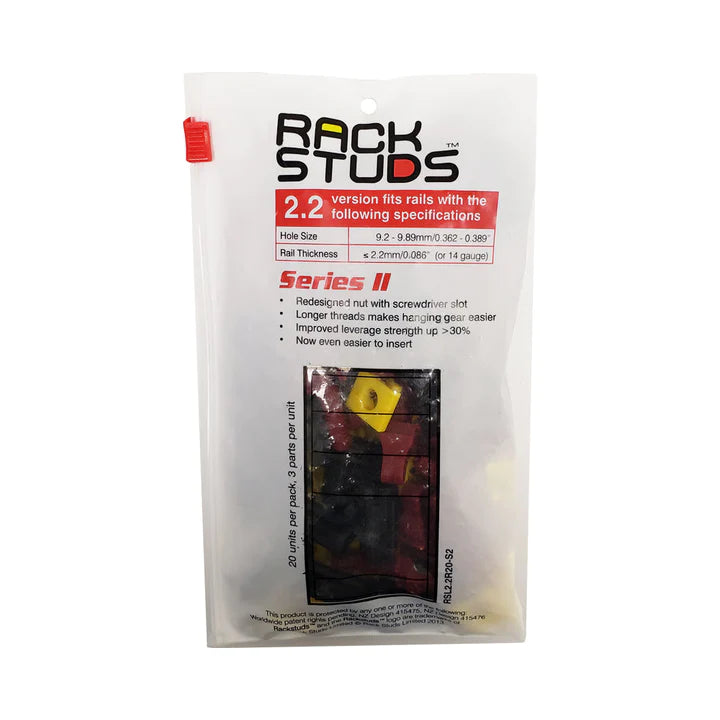

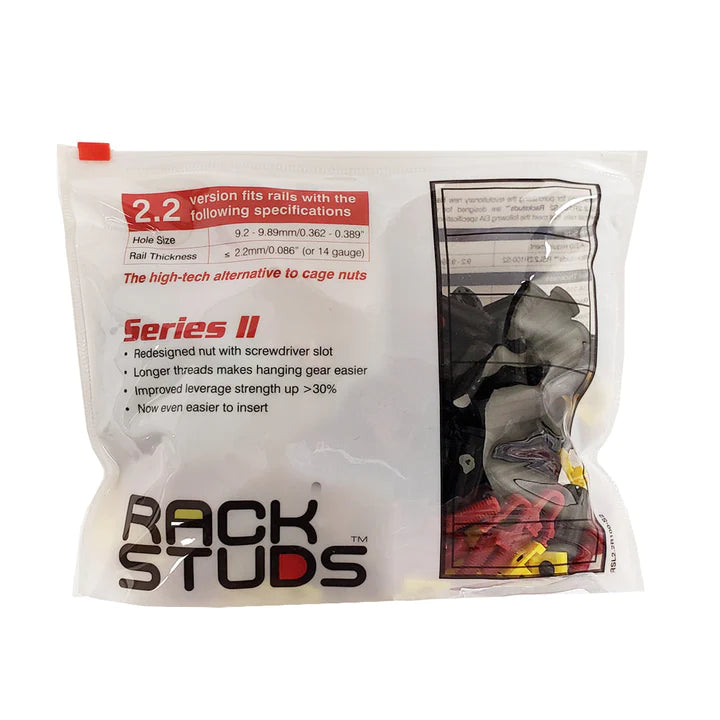

| Package Quantity | 20, 100 |
| Product Weight | 20 pack - 0.16 lbs [0.07 kg] 100 pack - 0.78 lbs [0.36 kg] |
