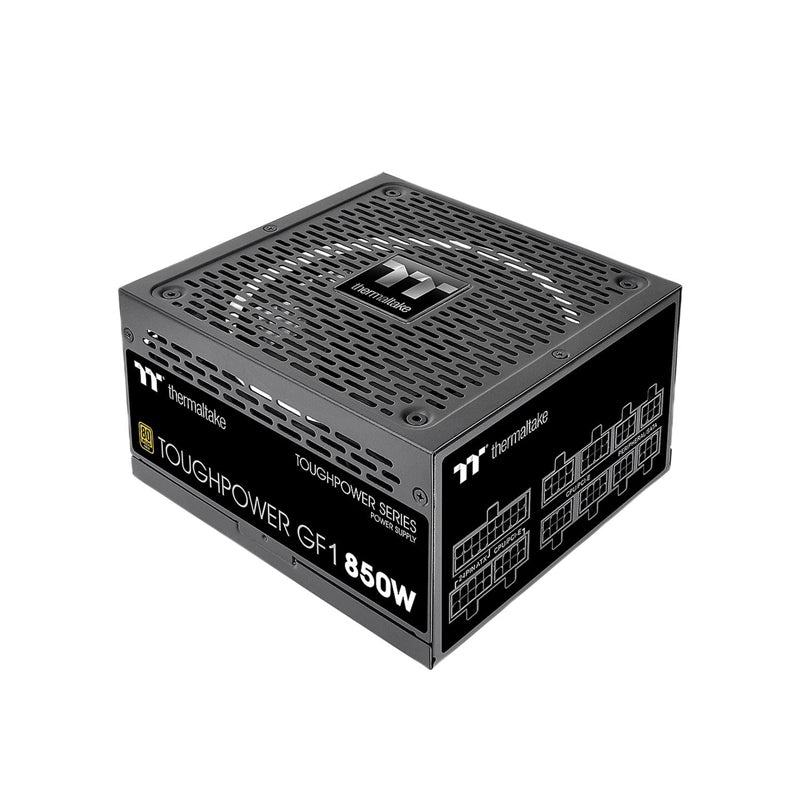

Thermaltake Toughpower GF1 850W 80+ Gold SLI/Crossfire Ready Ultra Quiet 140mm, Full Modular Power Supply
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Description:
80+ GOLD and INTEL C6/C7 STATES READY - Deliver up to 90% efficiency to optimize the work with all generations of Intel’s processors
ULTRA QUIET 140mm HYDRAULIC BEARING FAN - Self-lubricated hydraulic bearing PWM fan guarantee superior cooling performance and silent operation
SMART ZERO FAN - Quiet and efficient operation. Fan works only when PSU work load goes over 30%. A switch at the back can be turned off to have the fan spun constantly
16AWG WIRES - Upgraded CPU/PCI E main cables (16AWG wires) for high end enthusiasts' PCs
JAPANESE CAPACITORS - 100% high quality 105°C (221°F) Japanese capacitors offer the highest stability, durability, and reliability
ZERO CABLE PLATFORM - Daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality
<30 mV LOW RIPPLE NOISE - Low ripple ensures excellent performance and keeps performance-critical components, such as high-end graphic card, operating reliably longer
| General | |
| Brand | Thermaltake |
| Series | Toughpower GF1 850W - TT Premium Edition |
| Model | PS-TPD-0850FNFAGU-1 |
| Details | |
| Type | ATX12V |
| Maximum Power | 850 W |
| Fans | 140mm hydraulic bearing fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 6 x 6+2-Pin |
| SATA Power Connector | 12 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | > 16msec at 100% of full load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| PSU Noise Level | Cybenetics A- |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12A |
| Output | +3.3V@22A, +5V@22A, +12V@70.9A, -12V@0.3A, +5VSB@3A |
| MTBF | >120,000 Hours |
| Approvals | CE / cTUVus / TÜV SÜD / FCC / BSMI / EAC |
| Connectors | 1 x 24-pin Main Power |
| 2 x 4+4-pin ATX 12V | |
| 6 x PCI-E (6+2 pin) | |
| 12 x SATA | |
| 4 x Peripheral | |
| 1 x Floppy | |
| Features | |
| Features | Toughpower GF1 850W - TT Premium Edition |
| Zero Cable Platform | |
| Ultra Quiet 140mm Hydraulic Bearing Fan | |
| <30mV Low Ripple Noise | |
| Extremely Strict Voltage Regulation <+/-2% | |
| Fully Modular Low-Profile Flat Cable | |
| Premium Japanese 105°C/221°F Capacitors | |
| High Amperage Single +12V Rail | |
| 80 PLUS Gold Certified and Intel C6/C7 States Ready | |
| Dimension & Weight | |
| Dimensions | 86.11 mm x 150.11 mm x 160.02 mm |
