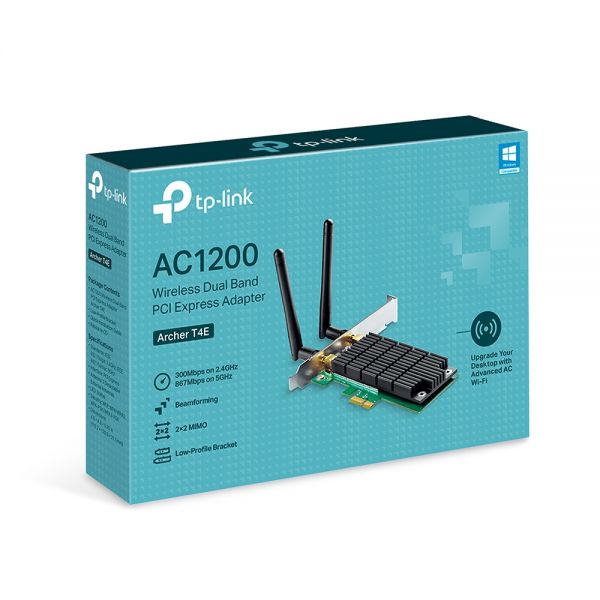

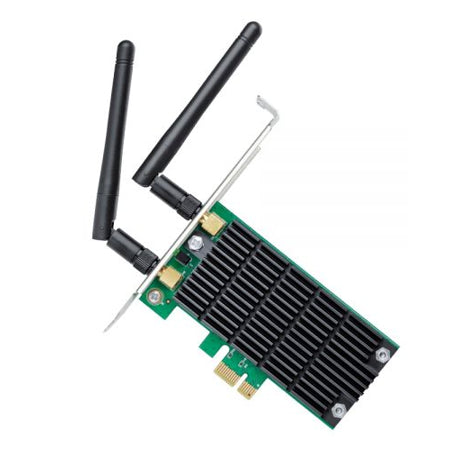

AC1200 Wireless Dual Band PCI Express Adapter

$46.99

Hurry up! Sales Ends In

Hurry! Only 5 Left in Stock!

Real time 10 visitor right now
Stripe Shopify Secure AES 256bit PayPal Visa MasterCard Discover Network American Express McAfee Secure
PRODUCT INFORMATION
PRODUCT INFORMATION

TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Features

  • *Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
  • *High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
  • *802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage

  • *Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists

  • *Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs

  • *2×2 MIMO – Users can easily access a high-speed wireless connection

  • *Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

Specification

HARDWARE FEATURES

Interface

PCI Express

Dimensions ( W x D x H )

4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)

Antenna Type

2 Dual Band Detachable Antennas



WIRELESS FEATURES

Wireless Standards

IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz

Signal Rate

5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz :
11ac HT80: -59.5 dBm
11ac HT40: -63 dBm
11ac HT20: -68 dBm
11n HT40: -70 dBm
11n HT20: -73 dBm
11a 54Mbps: -76 dBm
11a 6Mbps: -92 dBm

2.4GHz :
11n HT40: -67.5 dBm
11n HT20: -70 dBm
11g 54Mbps: -72 dBm
11b 11Mbps: -86.5 dBm

Transmit Power

5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM



OTHERS

Certification

CE, FCC, RoHS

Package Contents

AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
Low-Profile Bracket
Quick Installation Guide
Resource CD

System Requirements

Windows 10/8.1/8/7/XP (32/64bit)

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

AC1200 Wireless Dual Band PCI Express Adapter

AC1200 Wireless Dual Band PCI Express Adapter

$46.99
