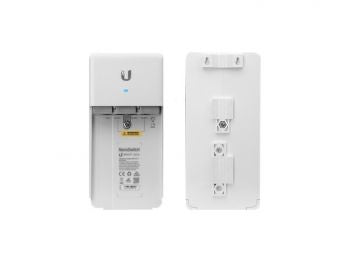

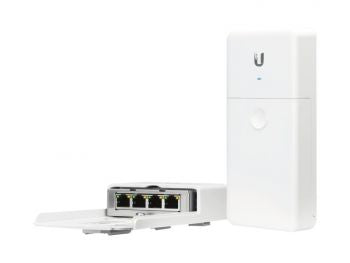

Ubiquiti N-SW Nano Gigabit Switch Outdoor 4-Port PoE Passthrough
Features
The NanoSwitch features an outdoor weatherproof form factor.
Operating Temperature: -30 to 70° C (-22 to 158° F)
Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.
PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 30W PoE output.
Specification
| Dimensions | 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28") |
| Weight | 271 g (9.6 oz) |
| Enclosure Characteristics | White Polycarbonate |
| Total Non-Blocking Line Rate | 4 Gbps |
| Typical Power Consumption | 1.5W |
| Max. Power Consumption | 30W |
| Power Method | Passive 24V, 2-Pair PoE In |
| Power Supply | POE-24-30W-G-W PoE Adapter (Not Included) |
| LEDs | Speed/Link/Activity (All Ports) |
| Networking Interfaces | (4) 10/100/1000 Mbps RJ45 Ports |
| PoE Interfaces | Passive 24V, 2-Pair PoE In |
| Total Passive PoE Max. Wattage | 24V, 2-Pair, 1A for 3 Ports (30W) |
| Passive PoE Max. Wattage per Port | 24V, 2-Pair, 1A per Port (24W) |
| Passive PoE Voltage Range | 21.6 - 30V |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
