- BE5000 Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 240 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming
|
HARDWARE FEATURES |
|
|---|---|

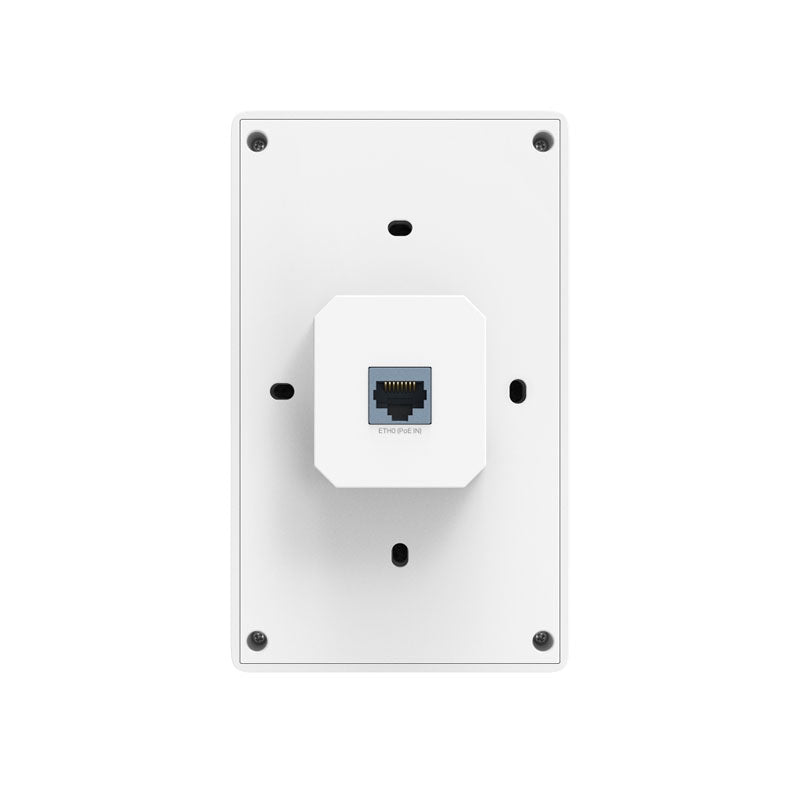

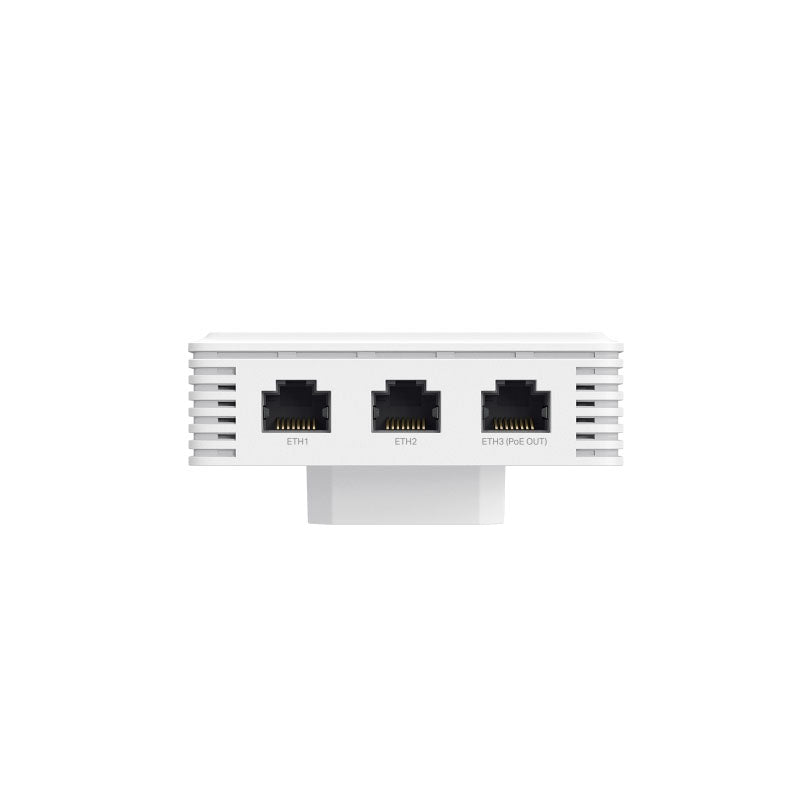

| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Mounting | Wall Mounting (Kits included) |
|
WIRELESS FEATURES |
|
|---|---|
| Coverage | 50 ㎡ (600 ft²)** |
| Concurrent Clients | 250+§ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 22 dBm (2.4 GHz) < 22 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) |
|
Management Features |
|
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|
OTHERS |
|
|---|---|
| Certification | FCC, RoHS |
| Package Content | • EAP725-Wall • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
