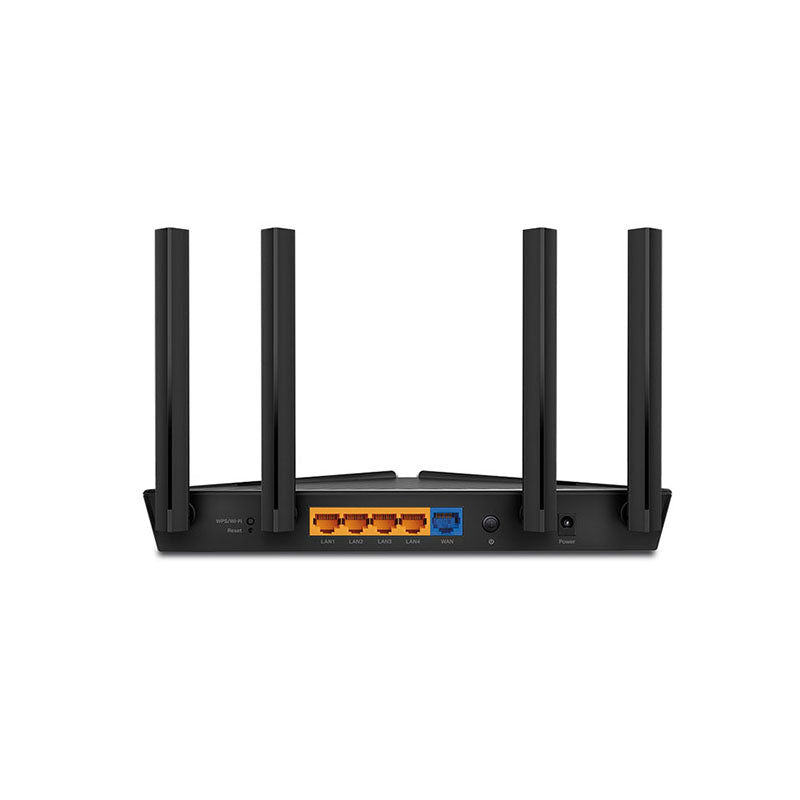

AX1500 Wi-Fi 6 Router
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
Specification
| WIRELESS | |
| Standards | Wi-Fi 6 |
| IEEE 802.11ax/ac/n/a 5 GHz | |
| IEEE 802.11n/b/g 2.4 GHz | |
| WiFi Speeds | AX1500 |
| 5 GHz: 1201 Mbps (802.11ax) | |
| 2.4 GHz: 300 Mbps (802.11n) | |
| WiFi Range | 3 Bedroom Houses |
| 4× Fixed High-Performance Antennas | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| WiFi Capacity | High |
| Dual-Band | |
| Allocate devices to different bands for optimal performance | |
| OFDMA | |
| Simultaneously communicates with multiple Wi-Fi 6 clients | |
| Airtime Fairness | |
| Improves network efficiency by limiting excessive occupation | |
| 4 Streams | |
| Connect your devices to more bandwidth | |
| Working Modes | Router Mode |
| Access Point Mode | |
| HARDWARE | |
| Processor | 1.5 GHz Triple-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port |
| 4× Gigabit LAN Ports | |
| Buttons | WPS/Wi-Fi Button |
| Power On/Off Button | |
| LED On/Off Button | |
| Reset Button | |
| Power | 12 V ⎓ 1 A |
| SECURITY | |
| WiFi Encryption | WEP |
| WPA | |
| WPA2 | |
| WPA/WPA2-Enterprise (802.1x) | |
| Network Security | SPI Firewall |
| Access Control | |
| IP & MAC Binding | |
| Application Layer Gateway | |
| Guest Network | 1× 5 GHz Guest Network |
| 1× 2.4 GHz Guest Network | |
| VPN Server | OpenVPN |
| PPTP | |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Parental Controls | URL Filtering |
| Time Controls | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade |
| OTA Firmware Upgrade | |
| TP-Link ID | |
| DDNS | |
| NAT Forwarding | Port Forwarding |
| Port Triggering | |
| DMZ | |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| NO-IP | |
| DynDNS | |
| Management | Tether App |
| Webpage | |
| Check Web Emulator> | |
| PHYSICAL | |
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in |
| (260.2 × 135.0 × 38.6 mm) | |
| Package Contents | Wi-Fi Router Archer AX10 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser |
| Cable or DSL Modem (if needed) | |
| Subscription with an internet service provider (for internet access) | |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20dBm(2.4 GHz) | |
| <23dBm(5.15 GHz~5.25 GHz) | |
| FCC: | |
| <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) | |
| WiFi Reception Sensitivity | 5 GHz: |
| 11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm | |
| 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm | |
| 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm | |
| 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm | |
| 11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm | |
| 11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm | |
| 11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm | |
| 2.4 GHz: | |
| 11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm | |
| 11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm | |
| 11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm | |
