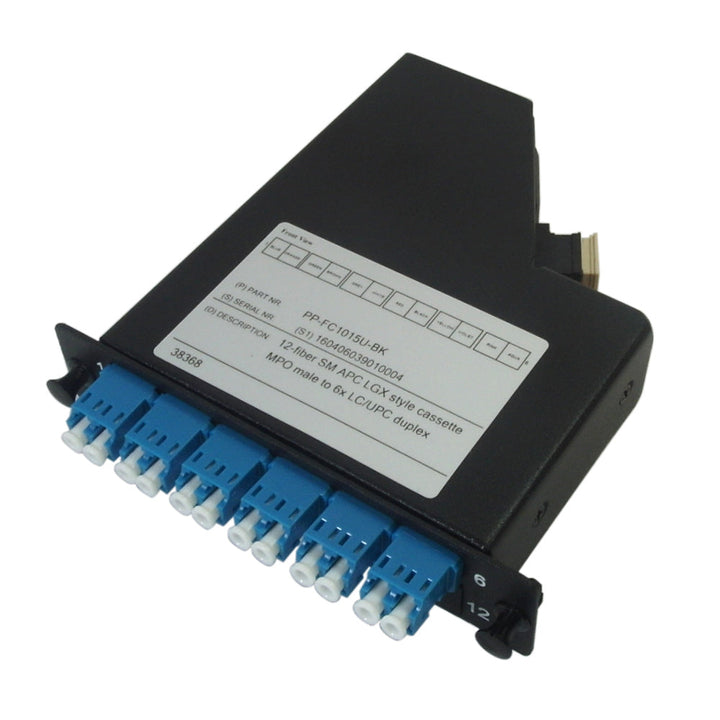

12-Fiber Singlemode LGX Style Cassette MPO Male to 6x LC/UPC Duplex - Black
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
This singlemode fiber optic MPO to LC cassette is made with Corning glass fiber and consists of a MPO/MTP male connector on one end and 6 duplex LC female connectors on the other. It is used in high bandwidth data center applications for breaking out MPO/MTP cables to LC female ports.
| Physical Characteristics | |
|---|---|
| Cassette Style/Size | LGX Panel |
| Fiber Count | 12 Fibers |
| Fiber Type | Singlemode 9/125 Micron |
| Polarity | Method B |
| Glass Manufacturer | Corning Glass |
| Connector(s) | |
| Connector A | 1 x 12-Position MPO/APC Male (with guide pins) Elite Connectors |
| Connector B | 6 x LC Duplex Female |
| Performance | |
| MPO Insertion Loss | ≤0.35 dB |
| MPO Return Loss | ≥20dB |
| LC Insertion Loss | ≤0.3dB |
| LC Return Loss | ≥20dB |
| testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.06 lbs [0.48kg] |
| Warranty Information | |
| Warranty | Limited Lifetime |
