8-Fiber Singlemode MPO/APC Female no guide pins to 8x LC/UPC clipped in pairs - OFNP Plenum
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!

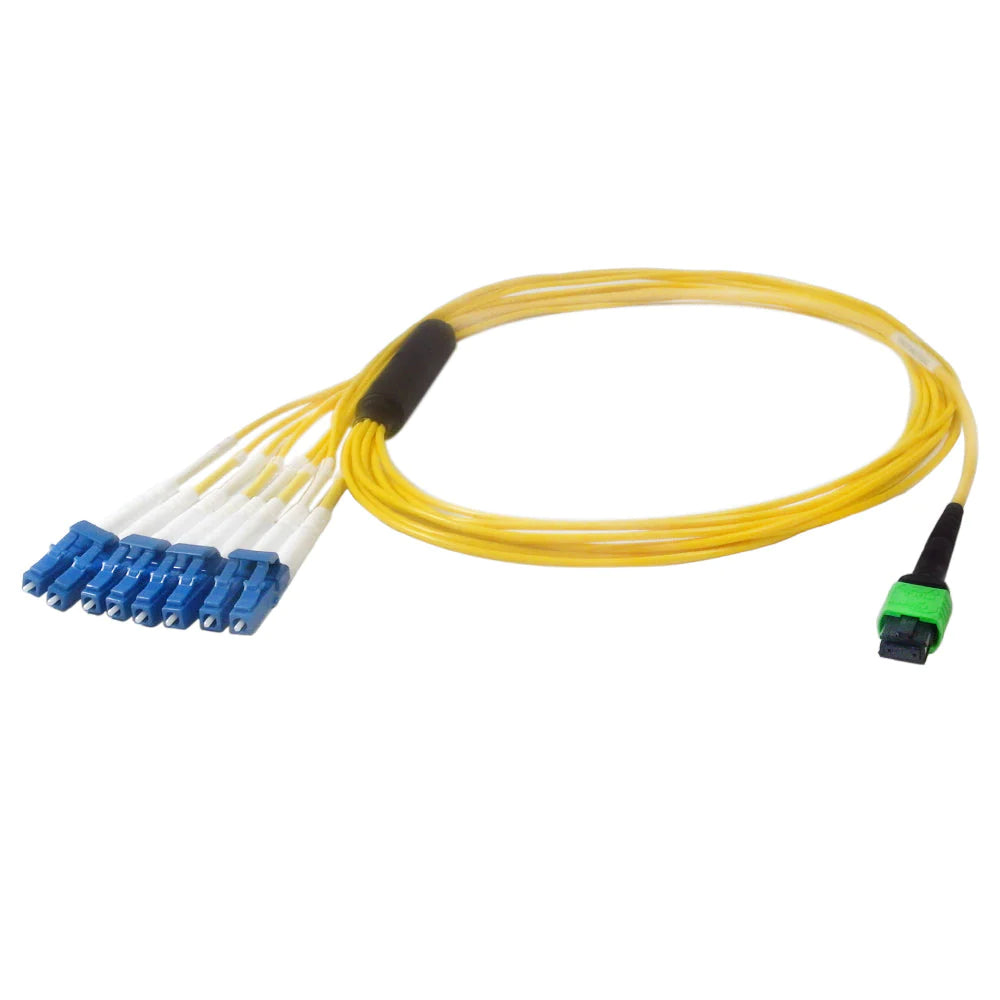

This singlemode fiber optic MPO breakout cable is made with Corning glass fiber and consists of a MPO/MTP female connector on one end and 8 simplex LC male connectors on the other. It is used in high bandwidth datacenter applications connecting switches or MPO/MTP cassettes.
| Physical Characteristics | |
|---|---|
| Breakout Length | 24 inches |
| Color | Yellow |
| Cable Diameter | 3mm |
| Fiber Count | 8 Fibers |
| Fiber Type | Singlemode 9/125 Micron |
| Glass Manufacturer | Corning Glass |
| Jacket Rating | Plenum (OFNP) |
| Connector(s) | |
| Connector A | 1 - 12-Position MPO/APC Female (no guide pins) Elite Connectors |
| Connector B | 4 - LC Duplex Male |
| Performance | |
| MPO Insertion Loss | ≤0.35 dB |
| MPO Return Loss | ≥60db |
| LC Insertion Loss | ≤0.3 dB |
| LC Return Loss | ≥50 dB |
| Testing | 100% IL, RL and Interferometer Tested |
| Environmental | |
| RoHS | Yes |
| UL | UL Listed Cable |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 23ft - 7m | 33ft - 10m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m |
|---|---|---|---|---|---|---|---|---|---|
| 0.14 lbs | 0.16 lbs | 0.18 lbs | 0.22 lbs | 0.30 lbs | 0.35 lbs | 0.43 lbs | 0.53 lbs | 0.66 lbs | 0.74 lbs |
