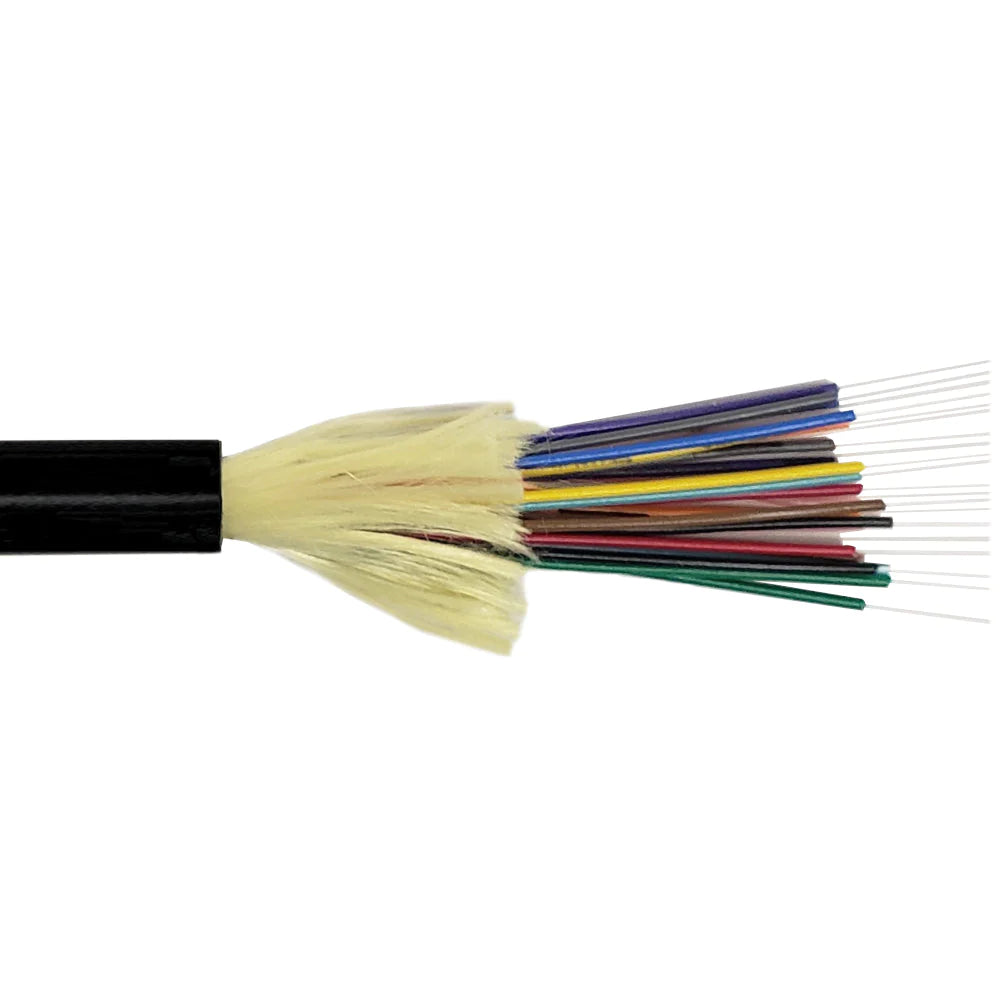

OS2 Singlemode 9 Micron Indoor/Outdoor AFL (Corning SMF-28 Ultra) - OFNR Riser Fiber Bulk Cable (per meter) - 24-strand
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This bulk OS2 singlemode fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
Features
- Cables are water blocked and exceed water penetration requirements of GR-20-CORE.
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use.
- With a riser rating, this cable can be used in all environments: riser, general inside plant and outside plant.
- Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE and ICEA-S-104-696.
- ITU-T G.652.D compliant and fully backwards compatible.
- Exceeds the ITU-T Recommendation G.657.A1 standard.
- MSHA approved for mining applications.
- Compliant to Directive 2002/95/EC (RoHS)
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 9 micron Singlemode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 24-Strand |
| Glass Fiber |
Corning SMF-28 Ultra |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 8.7mm (24-Strand) |
| Tension(Installation) | 300 lbs (24-Strand) |
| Tension(Long Term) | 90 lbs (24-Strand) |
| Bending Radius(Installation) | 13.1cm (24-Strand) |
| Bending Radius(Long Term) | 8.7cm (24-Strand) |
| Operating Temperature | -40 deg C ~ +75 deg C |
| Storage Temperature | -40 deg C ~ +75 deg C |
| Installation | -20 deg C ~ +75 deg C |
| Attenuation Range | @1300nm 0.5dB/km @1550nm 0.5dB/km |
| Gigabit Ethernet Min. Link Distance | 1300nm = 5000 |
| 10 Gigabit Ethernet Min. Link Distance | 1300nm = 10000 |
| Fire Rating | OFNR |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Certification(s) | |
| ETL | Yes |
| c(ETL) | Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Package Quantity | 1 |
| 24-strand |
|---|
| 0.12 lbs |
