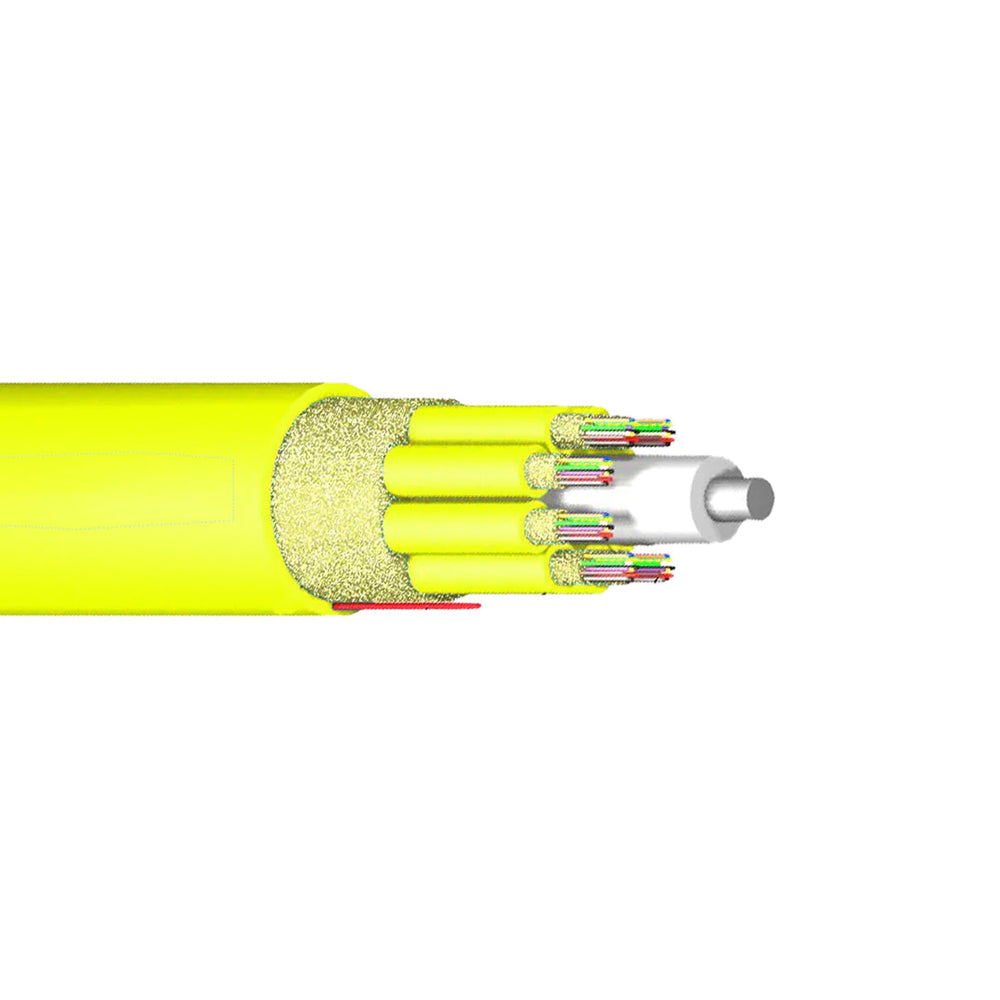

OS2 Singlemode 9 Micron 3mm Indoor Micro-Distribution - OFNP Plenum Fiber Bulk Cable (per meter) - 12-strand
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This bulk OS2 fiber cable is indoor plenum rated and combination of high fiber counts with a compact, space saving design. It is OFNP rated for plenum and general inside terminating MPO cables typically.
Features
- 900µm Micro-Distribution OFNP rated construction
- 250µm colored bare fibers
- Corning ClearCurve OS2 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Small O.D. for tight spaces
- Meets the application requirement of National Electric Code (NEC) Article 770
SPECIFICATIONS
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9 micron Multimode OFNP Plenum Indoor Micro-Distribution Cable |
| Fiber Count | 12-Strand |
| Glass Fiber |
Corning ClearCurve |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter |
2.95mm |
| Bending Radius (Installation) |
4.7cm |
| Bending Radius (Operation) |
2.95cm |
| Pulling tension |
300lbs |
| Operating Temperature | 0 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Performance | |
| Wavelength | 1310nm / 1550nm |
| Attenuation Max. | 0.5dB/km @1310nm 0.4dB/km @1550nm |
| Link Length |
10000m @1310nm |
| Fire Rating | OFNP Plenum |
| Certification(s) | |
| UL | Yes |
| Product Support | |
| RoHS, REACH | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Package Quantity | Per meter |
| 12-strand |
|---|
| 0.051 lbs/m |
