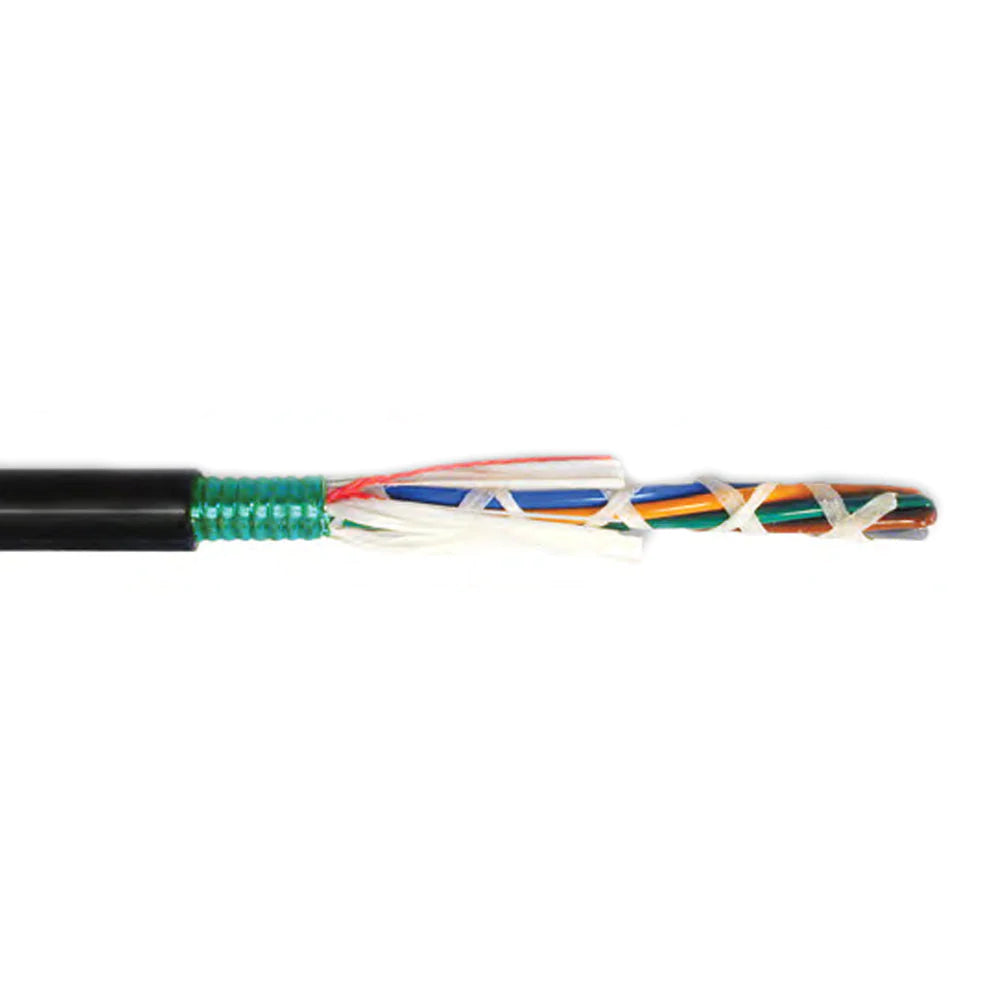

OM4 Multimode Loose Tube Outdoor Direct Burial Dri-Lite Armoured Fiber Bulk Cable (per meter) - 6-strand
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
This bulk loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, improves compressive strength and rodent protection, and speeds fiber access/cleanup.
Features
- Dry (SAP) core standard
- Corrugated steel armor
- Gel-free tubes
- Tested to meet or exceed Telcordia® GR-20-CORE, RDUP PE-90 Designation MLT and ICEA S-87-640-2011
- RoHS/REACH Compliant
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM4 Loose Tube Outdoor Direct Burial Dri-Lite Armoured Cable |
| Fiber Count | 6-Strand / 12-Strand |
| Nominal Diameter | 11.7mm |
| Tension(Installation) | 600 lbs |
| Tension(Long Term) | 200 lbs |
| Bending Radius(Installation) | 234mm |
| Bending Radius(Long Term) | 177mm (6-Strand) 117mm (12-Strand) |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation Temperature | -30°C ~ +70°C |
| Manufacturer Information | |
| Superior Essex Part Number | 12006PD01 12012PD01 |
| Environmental | |
| RoHS | Yes |
| Telcordia® GR-20-CORE | Yes |
| RDUP PE-90 Designation MLT | Yes |
| ICEA S-87-640-2011 | Yes |
| 6-strand | 12-strand |
|---|---|
| 0.40 lbs | 0.80 lbs |
