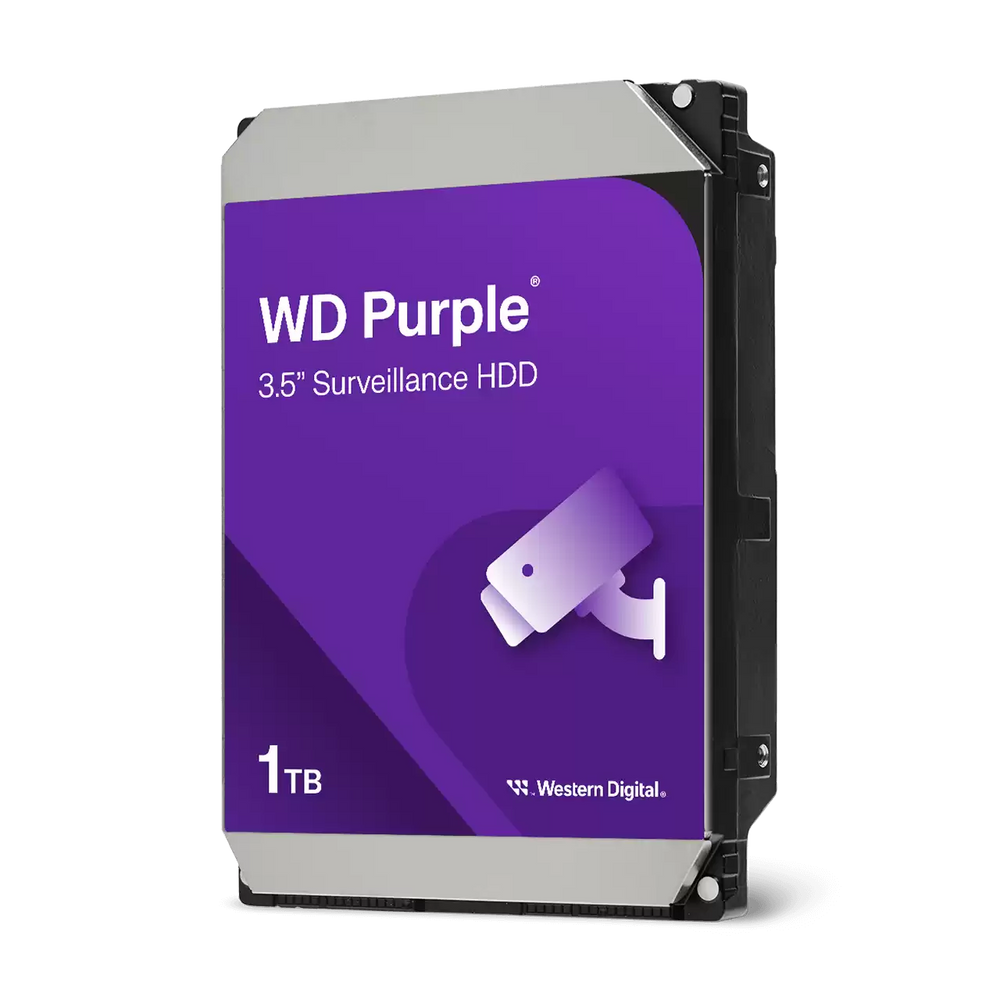

WD 3.5 SATA PURPLE 1TB Hard Disk Drive

Uncompromising Surveillance Storage

WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that’s tested for compatibility in a wide range of security systems. Exclusive AllFrame™ technology helps reduce frame loss and improve overall video playback.

Industry-Leading Storage. Surveillance You Can Trust

Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it most. WD Purple delivers smart video storage that you can trust and are backed by a 3-year limited warranty.

Western Digital's Exclusive AllFrame™ Technology

All WD Purple drives are equipped with AllFrame™ technology, which helps reduce video frame drops and improves video recording and playback.

Enhanced Workload Ratings

WD Purple drives feature a workload rating of up to 180TB/year - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.

Multiple Cameras, Multiple Streams

Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras. With so many options, you have the flexibility to upgrade or expand your security applications in the future.

Designed for Surveillance Solutions

With an MTBF of up to 1 million hours, WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With tarnish-resistant components and support in storage systems with more than eight drive bays4, WD Purple drives deliver reliable operation even in harsh environments.

Wide Compatibility. Seamless Integration

WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of industry-leading enclosures and chipsets supported, you’re sure to find the DVR or NVR configuration that’s right for you.

Three-Year Limited Warranty

As an industry-leading hard drive manufacturer, Western Digital stands behind their surveillance storage solutions with a 3-year limited warranty6 included with every WD Purple drive.

Product Features

• Engineered for mainstream surveillance systems
• WD AllFrame technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to mainstream surveillance applications
• Supports up to 180TB/yr workload rate and up to 16 bays

Compatibility

• Up to 64 HD cameras
• Up to 16 drive bays
• AllFrame firmware technology

Specifications

• Model Number - WD11PURZ
• Capacity - 1TB
• Form Factor - 3.5-Inch
• Connector - SATA
• Interface - SATA
• Transfer Rate - up to 110MB/s
• Disk Speed (RPM) - 5400 RPM
• Recording Technology - CMR
• Cache Size - 64MB
• Weight - 0.99lbs
• Operating Temperature - 0°C to 65°C
• Non-Operating Temperature - -40°C to 70°C
• Warranty - 3-Year Limited Warranty
• Dimensions (L x W x H) - 5.79" x 4" x 1.03"
