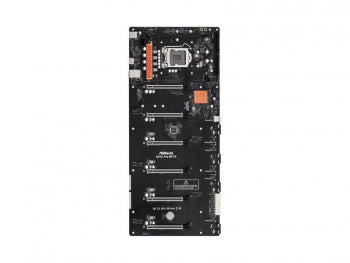

ASRock H510 PRO BTC+ LGA 1200 Intel H510 for Cryptocurrency Mining (BTC)open box
Hurry up! Sales Ends In
Hurry! Only 3 Left in Stock!
Specification
| Brand | ASRock |
| Model | H510 PRO BTC+ |
| Supported CPU | |
| CPU Socket Type | LGA 1200 |
| CPU Type | Supports 11th / 10th Gen Intel Core Processors |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipsets | |
| Chipset | Intel H510 |
| Onboard Video | |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Memory | |
| Number of Memory Slots | 1×288pin |
| Memory Standard | DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133* |
| * 11th Gen Intel Core (i9 / i7 / i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively. | |
| * 10th Gen Intel Core (i9 / i7) support DDR4 2933 natively; Core (i5 / i3), Pentium and Celeron support DDR4 2666 natively. | |
| Maximum Memory Supported | 32GB |
| Expansion Slots | |
| PCI Express 3.0 x16 | 6 x PCI Express 3.0 x16* |
| * PCIE1 at x16 / PCIE2~6 at x1. | |
| Other Slots | 1 x Mining Port (M_Port1 at x1)* |
| * Support USB Type Riser kit. | |
| Storage Devices | |
| SATA 6Gb/s | 1 x SATA 6Gb/s |
| M.2 | 1 x M.2 Socket, supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module |
| Onboard LAN | |
| LAN Chipset | Intel I219-V |
| Max LAN Speed | 10/100/1000Mbps |
| Rear Panel Ports | |
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port |
| 1 x HDMI Port | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) |
| Other Connectors | 1 x System Panel Header |
| 1 x SPI TPM Header | |
| 1 x Power LED and Speaker Header | |
| 1 x CPU Fan Connector (4-pin)* | |
| 8 x Chassis Fan Connectors (4-pin)** | |
| 1 x Power Button | |
| 1 x Reset Button | |
| * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| ** CHA_FAN3~CHA_FAN8 supports the chassis fan of maximum 2.5A (30W) fan power. | |
| ** CPU_FAN1, CHA_FAN1 and CHA_FAN2 can adjust 4-pin fan speed. | |
| Physical Spec | |
| Dimensions (W x L) | 20.1" x 8.8" |
| Power Pin | 3 x 24-pin ATX Power Connectors |
| 1 x 8-pin 12V Power Connector | |
| 4 x 4-pin PCIe Power Connectors | |
| Features | |
| Features | BIOS: |
| - 128 MB AMI UEFI Legal BIOS with multilingual GUI support | |
| - ACPI 6.0 Compliant wake up events | |
| - SMBIOS 2.7 Support | |
| - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIN AUX Voltage Multi-adjustment | |
| Unique Feature: | |
| ASRock Super Alloy | |
| - Premium 50A Power Choke | |
| - Sapphire Black PCB | |
| - High Density Glass Fabric PCB ASRock Steel Slot | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| Support CD: | |
| - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar | |
| Hardware Monitor: | |
| - Fan Tachometer: CPU, Chassis Fans | |
| - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans | |
| - Fan Multi-Speed Control: CPU, Chassis Fans | |
| - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V | |
| OS: | |
| - Microsoft Windows 10 64-bit | |
| - Linux: Ubuntu 16.04 LTS / Fedora 25* | |
| * Linux O/S basic function support only, due to the compatibility of the Linux system itself, there is no guarantee that all functions are supported. | |
| Certifications: | |
| - FCC, CE | |
| - ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Packaging | |
| Package Contents | Accessories: |
| - Quick Installation Guide, Support CD | |
| - 1 x SATA Data Cable | |
| - 1 x Screw for M.2 Socket | |
