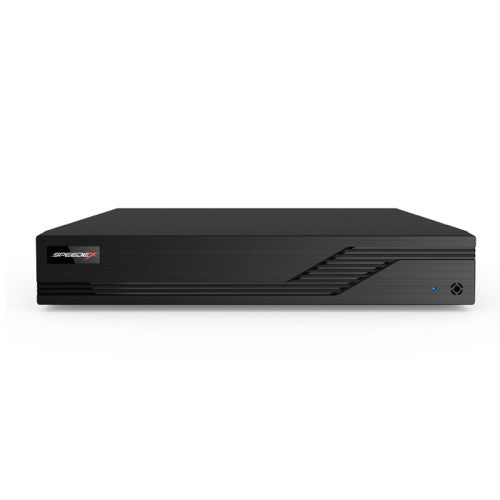

Speedex T2116-8MP 16 Channel 8MP/4K H.265 Super HD XVR
Hurry up! Sales Ends In
Hurry! Only 5 Left in Stock!
-16 CH TVI / AHD video input, support 8MP/5MP/4MP/3MP/1080P/720P/WD1
-16 CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1
-16CH DVR default support 8 CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 720P/WD1
-Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
-Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
-Multi-mode recording: manual / timer / motion
-Playback : 16CH simultaneously playback
-Search: time slice, time, event ( manual, motion ), tag search
-Express and flexible backup via USB, network and so on
-Pentaplex: preview, record, playback, backup and remote access
-DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
-Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
-Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with mobile device
-Multi-user online simultaneously
-Authorization management, log review and device status review
-HDMI 4K output, true high resolution display
-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
-Support NAT function and QRCode scanning by mobile phone and PAD
-Powerful smart phone & Pad surveillance with iOS and Andriod OS
-Mobile Apps: SuperLive Plus
|
Model |
TSPEEDEX-T2116-8MP |
|
|
System |
Compression |
Standard H.265 High Profile |
|
OS |
Embedded Linux |
|
|
Video |
Input |
BNC × 16 |
|
Resolution |
TVI/AHD : 8MP/5MP/4MP/3MP/1080P/720P/WD1 CVI : 4MP/3MP/1080P/720P/WD1 |
|
|
IP Input |
8CH (up to 16CH) |
|
|
Output |
HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) |
|
|
Audio |
Input |
RCA × 1 |
|
Output |
RCA × 1 |
|
|
Two-way audio |
Take up channel one audio input |
|
|
Record |
Resolution |
4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 1080P/ 720P/WD1/D1 |
|
Frame Rate |
4K@6/7fps (PAL/NTSC; Odd channels can support) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP@12fps(PAL) / 15fps (NTSC) 4MP Lite/1080P/720P/WD1@25fps (PAL) / 30fps (NTSC) |
|
|
Bit Rate |
32Kbps ~ 5Mbps (main stream) |
|
|
Mode |
Manual, timer, motion |
|
|
IP Input |
Resolution |
8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
|
Frame Rate |
25fps ( PAL ) / 30fps ( NTSC ) |
|
|
Playback |
Playback |
16CH |
|
Search |
Time slice / time / event / tag search |
|
|
Smart Search |
Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
|
|
Function |
Play, pause, FF, FB, digital zoom, etc. |
|
|
Alarm |
Mode |
Manual, motion, exception |
|
Input |
No |
|
|
Output |
No |
|
|
Triggering |
Record, snap, preset, e-mail, etc. |
|
|
Network |
Interface |
RJ 45 1000Mbps × 1 |
|
Protocol |
TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
|
|
Bandwidth (Mbps) |
32/96 (access/transfer) |
|
|
Mobile Device |
OS |
iOS, Andriod |
|
Storage |
HDD |
SATA× 2, up to 8TB per HDD |
|
Backup |
Local Backup |
U disk, USB removable HDD |
|
Network Backup |
Yes |
|
|
Port |
RS 485 |
RS 485 × 1, connect to PTZ or keyboard |
|
USB |
USB 2.0 × 2 |
|
|
Remote Controller |
Optional |
|
|
Others |
Power Supply |
DC12V / 4A |
|
Consumption |
≤ 30W ( without HDD ) |
|
|
Dimensions(mm) |
380 × 268 × 52 ( W × D × H ) |
|
|
Work Environment |
-10~50°C, 10%~90% (humidity) |
|
